Hydraulic Cylinder Precision Welded Steel Pipe ASTM A513 Cold Drawn DOM Tubes

Informasi Dasar
Tempat asal: Cina
Nama merek: TORICH
Sertifikasi: ISO 9001-2008 ISO 14001 EN 10204.3.1 CCS NK etc
Nomor model: ASTM A513
Kuantitas min Order: 5 ton
Harga: 600-1200 USD/TONS
Kemasan rincian: Dalam Bundel Heksagonal, dengan perlindungan oli anti korosi, dengan kemasan layak laut
Waktu pengiriman: 4-8 minggu setelah pesanan dikonfirmasi
Menyediakan kemampuan: 60000 ton satu tahun
Informasi Detail
Material: Carbon Steel Steel grade: SAE1010 SAE1020
Standard: ASTM A513 Size: 6-350mm*1-15mm*max12000mm
Production method: Cold rolling on the welded steel tubes , to reach high accuracy on the OD and WT tolerance Delivery condition: A.W.H.R / A.W.C.R. / S.D.C.R. / M.D. / S.S.I.D.
Shap: Round Applications: for machinery, mechanical engineering
Cahaya Tinggi:

Precision Cold Drawn Welded Steel Pipe

,

Hydraulic Cylinder DOM Tubes

,

ASTM A513 Hydraulic Cylinder Pipe


Deskripsi Produk

Hydraulic Cylinder Precision Cold Drawn Welded Steel Pipe ASTM A513 DOM Tubes





ASTM A513
Electric-Resistance-Welded Carbon and Alloy Steel Mechanical Tubing
Applications: for Machinery, Mechanical Engineering



1. Standard:
ASTM A513 cold rolling welded precision steel tubes
2. Steel Grade:
SAE1010, SAE1020, other materials upon agreement with customers.


3. Production method:
Cold rolling on the weled steel tubes, to reach high accuracy on the OD and WT tolerance


4. Size range:
O.D.:6-350mm     W.T.:1-15mm      L:max12000mm


5. Packing:
In Hexagonal Bundles, with anti corrosion oil protection, with seaworthy packing


Delivery condition:

1. A.W.H.R.    "as welded" from hot-rolled steel
2. A.W.C.R.      "as welded" from cold-rolled steel
3. S.D.C.R.       "sink-drawn", cold-rolled steel
5. M.D.              mandrel drawn
6. S.S.I.D.          special smooth inside diameter

Please specify the delivery condition when sending the enquiry!


Thermal condition:
1. No final thermal treatment
2. Stress relieved
3. Annealed
4. Normalized


                                       Steel Grade and Chemical Compositions:
Steel  Grade C Mn P S Si Cr Mo
max   max max max min
1008 0.10  0.5 0.035  0.035
1010 0.08-0.13 0.30-0.60 0.035  0.035
1018 0.14-0.20 0.30-0.60 0.035  0.035
1020 0.17-0.23 0.30-0.60 0.035  0.035
1026 0.22-0.28 0.60-0.90 0.035  0.035
1035 0.31-0.38 0.60-0.90 0.035  0.035
4130 0.28-0.33 0.40-0.60 0.035  0.035  0.15-0.35 0.80-1.10 0.08-0.25
4140 0.38-0.43 0.75-1.00 0.035  0.035  0.15-0.35 0.80-1.10 0.15-0.25

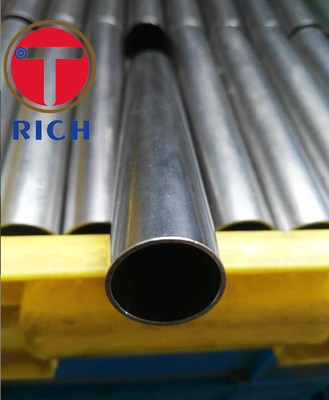

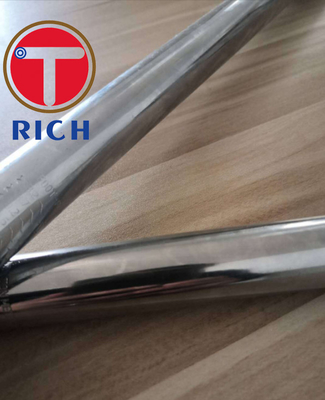

Samples for quality checking available:

 Hydraulic Cylinder Precision Welded Steel Pipe ASTM A513 Cold Drawn DOM Tubes 0 Hydraulic Cylinder Precision Welded Steel Pipe ASTM A513 Cold Drawn DOM Tubes 1

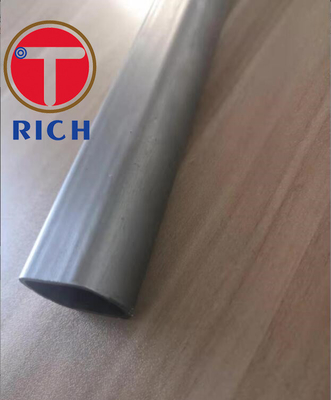

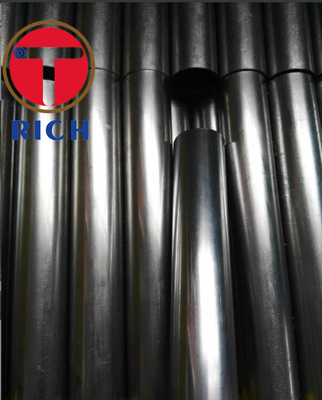

Application:
Hydraulic Cylinder Precision Welded Steel Pipe ASTM A513 Cold Drawn DOM Tubes 2Hydraulic Cylinder Precision Welded Steel Pipe ASTM A513 Cold Drawn DOM Tubes 3

Q: Are you trading company or manufacturer ?

A: A professional steel pipes materials inventor, manufacturer and solution provider

Q: How long is your delivery time?

A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples of stainless steel pipe ? is it free or extra ?

A: Yes, we could offer the sample for free charge but need pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
