Tabung Baja Dingin Dingin Diambil GOST9567
Properti Dasar
Tempat Asal:
Cina
Nama merek:
TORICH
Sertifikasi:
ISO 9001 ISO 14001 EN 10204.3.1 TS 16949
Nomor Model:
GOST9567
Properti Perdagangan
Jumlah Pesanan Minimum:
5 ton
Harga:
USD 600-1200 ton
Kemampuan Penyediaan:
60000tons per tahun
Ringkasan Produk
Precision Seamless Cold Drawn Steel Tubes GOST9567 Tubing Baja Mekanis GOST9567 Tabung Baja-Tabung Baja Presisi untuk Teknik Mesin GOST9567 Tabung baja presisi Aplikasi: Mobil, Teknik Mesin, Bagian Otomatis dll. Jangkauan ukuran:O.D.:6-168mm W.T.:1-15mm L:max12000mm Komposisi kimia ((%, maksimum) ...
Rincian produk
Menyoroti:
Presisi pipa baja
,Pipa seamless presisi
Material:
Baja Karbon dan Baja Paduan
Steel Grade:
10 20 35 45 40X
Standard:
GOST9567
Shape:
Bulat
Applications:
Otomotif, teknik mesin, suku cadang mobil dll.
Size Range:
OD: 6-168mm WT: 1-15mm L: max12000mm
Production Method:
Digambar Dingin Tanpa Mulus
Deskripsi Produk
Precision Seamless Cold Drawn Steel Tubes GOST9567 Tubing Baja Mekanis
GOST9567 Tabung Baja-Tabung Baja Presisi untuk Teknik Mesin
GOST9567 Tabung baja presisi
Aplikasi: Mobil, Teknik Mesin, Bagian Otomatis dll.
Jangkauan ukuran:O.D.:6-168mm W.T.:1-15mm L:max12000mm
Komposisi kimia ((%, maksimum)
| Kelas baja | C | Ya. | Mn | Cr | Tidak | Mo | S | P | Cu |
| 10 | 0.07-0.14 | 0.17-0.37 | 0.35-0.65 | 0.15 | 0.3 | - | - | - | - |
| 20 | 0.17-0.24 | 0.17-0.37 | 0.35-0.65 | 0.25 | 0.25 | - | 0.03 | 0.025 | 0.3 |
| 35 | 0.32-0.40 | 0.17-0.37 | 0.50-0.80 | 0.25 | 0.3 | - | 0.04 | 0.035 | 0.3 |
| 45 | 0.42--0.45 | 0.17-0.37 | 0.50-0.80 | 0.25 | - | - | - | - | - |
| 40X | 0.36-0.44 | 0.17-0.37 | 0.50-0.80 | 0.80-1.10 | 0.3 | - | 0.035 | 0.035 | 0.3 |
| 30XHSA | 0.28-0.34 | 0.90-1.20 | 0.80-1.10 | 0.80-1.10 | 0.3 | - | 0.005 | 0.025 | - |
Sifat Mekanis:
| Kelas baja | Kekuatan tarik, N/mm2 (min) | Kekuatan hasil, N/mm 2 (min) | Perpanjangan, % ((menit) |
| 10 | 343 | 206 | 24 |
| 20 | 412 | 245 | 21 |
| 35 | 510 | 294 | 17 |
| 45 | 589 | 323 | 14 |
| 40X | 618 | - | 14 |
| 30XHSA | 491 | - | 18 |

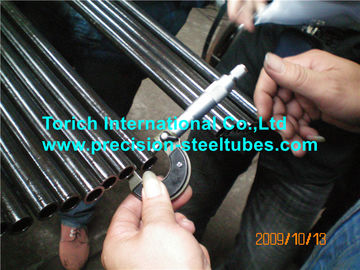

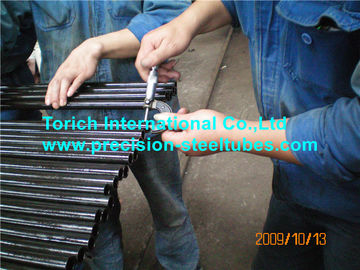

Pemeriksaan Dimensi:
Proses Produksi:
Penarik dingin + Rolling dingin + Pengolahan panas
