SA192 Profil Tanpa Sambungan Tarik Dingin Bersirip untuk Penukar Panas Boiler
Properti Dasar
Tempat Asal:
Cina
Nama merek:
TORICH
Sertifikasi:
SO9001:2008 ，TS16949
Nomor Model:
SA192
Properti Perdagangan
Jumlah Pesanan Minimum:
5 ton
Harga:
Dapat dinegosiasikan
Ketentuan Pembayaran:
T / T, L / C, D / A, D / P, Western Union, MoneyGram
Kemampuan Penyediaan:
6000ton
Ringkasan Produk
SA192 Profil tanpa jahitan baja karbon yang ditarik dingin berbentuk dua sirip Pipe Boiler Round Fined Tube Bahan tabung baja profil: SAE1010, SAE1020, SAE1035, SAE1045, ST37.0, ST44, ST52, E235, E355 Baja karbon dan baja paduan, atas permintaan pelanggan. Ukuran tabung baja profil: OD:5-420 mm, W.T...
Rincian produk
Menyoroti:
Alloy Steel Seamless Pipe
,persegi panjang pipa baja
Product Name:
Profil Tabung Bersirip
Standard:
GBT 3094
Material:
SAE1010, SAE1020, SAE1045
Type:
Dingin ditarik
Terms Of Trade:
FOB atau CIF
Brand:
UNTUK KAYA
Transportation:
Laut, udara
Certificate:
ISO9001, TS16949
End Protector:
Polos
MTC:
En10204.3.2B
Deskripsi Produk

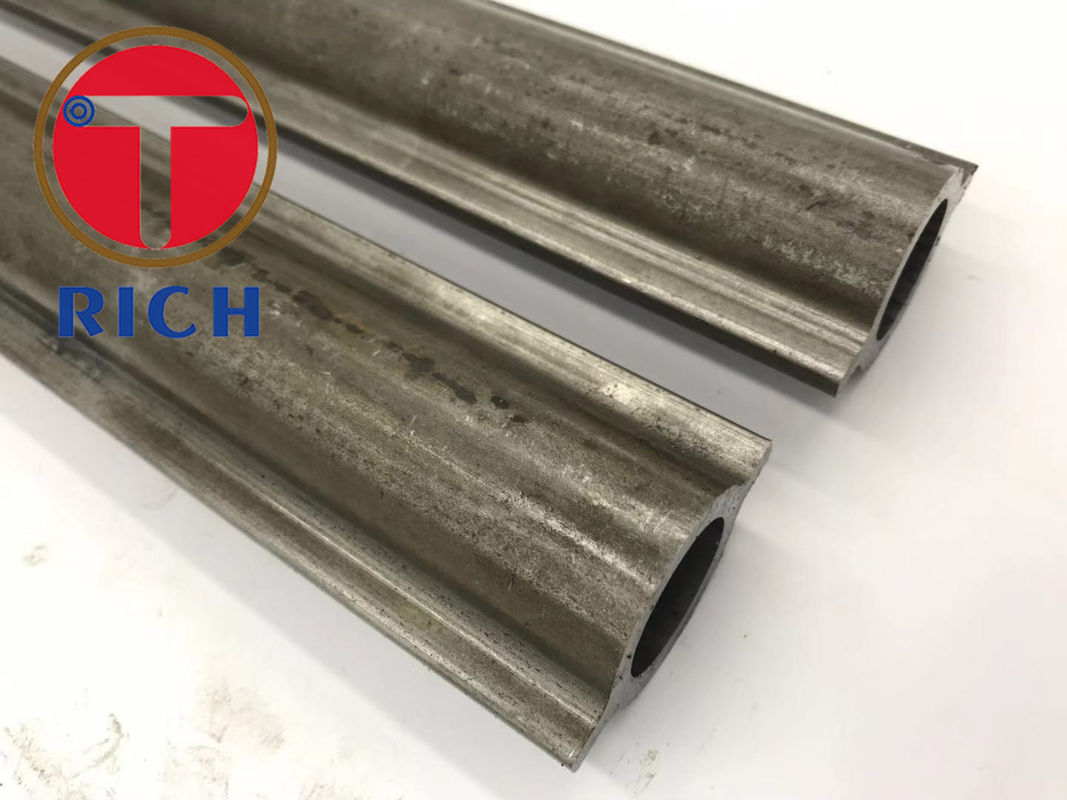

SA192 Profil tanpa jahitan baja karbon yang ditarik dingin berbentuk dua sirip Pipe Boiler Round Fined Tube
Bahan tabung baja profil:
SAE1010, SAE1020, SAE1035, SAE1045, ST37.0, ST44, ST52, E235, E355
Baja karbon dan baja paduan, atas permintaan pelanggan.
Ukuran tabung baja profil:
OD:5-420 mm,
W.T.:00,5-50 mm,
Panjang: hingga 12 m, atau sesuai dengan kebutuhan pelanggan.
(diameter dan ketebalan dinding bisa atas permintaan pelanggan.)
Standar:BS, JIS, GB, DIN, ASTM, API,
Sertifikasi:ISO 900, TS16949
| Nama produk | SA192 Tabung bergelombang profil tanpa jahitan |
| Bahan | SAE1010, SAE1020, SAE1035, SAE1045, ST37.0, ST44, ST52, E235, E355 |
| Bentuk | Tabung profil, produksi sesuai dengan gambar pelanggan |
| Standar | BS, JIS, GB, DIN, ASTM, API, |
| Teknologi | Penarik dingin |
| Pengolahan permukaan | Perlindungan anti karat berminyak atau sesuai dengan kebutuhan pelanggan |
| Aplikasi | Boiler, penukar panas |
| Kemasan | Dalam bungkus dengan kemasan yang layak untuk laut |
Profil tabung sirip
