Pipa boiler ASTM A335 p22
Properti Dasar
Tempat Asal:
Cina
Nama merek:
TORICH
Nomor Model:
ASTM A335
Properti Perdagangan
Ketentuan Pembayaran:
L / C, D / A, D / P, T / T, Western Union, MoneyGram
Ringkasan Produk
ASTM A335 P22 pipa boiler Spesifikasi ASTM A335 P22 ASTM A335 P22 baja paduan pipa tanpa jahitan Ukuran Diameter Besar ASTM A335 Pipa Baja Alloy Ukuran Luar 19.05mm 114.3mm Baja paduan ASTM A335 Kelas P22 Pipa tanpa jahitan Ketebalan dinding 2.0mm 14 mm Panjang pipa baja paduan ASTM A335 maksimum ...
Rincian produk
Menyoroti:
p22 pipa boiler
,ASTM A335 p22 pipa boiler
Product Name:
Pipa boiler ASTM A335 p22
Model No:
ASTM A335
Technique:
Dingin Diambil
Surface Treatment:
Mabuk
Type:
Mulus
Alloy Or Not:
Non-Paduan
Section Shape:
Bulat
Application:
Untuk Boiler, Superheater, Steam linepipes dari boiler
Deskripsi Produk
ASTM A335 P22 pipa boiler
Spesifikasi ASTM A335 P22
| ASTM A335 P22 baja paduan pipa tanpa jahitan | Ukuran Diameter Besar |
| ASTM A335 Pipa Baja Alloy Ukuran Luar | 19.05mm 114.3mm |
| Baja paduan ASTM A335 Kelas P22 Pipa tanpa jahitan Ketebalan dinding | 2.0mm 14 mm |
| Panjang pipa baja paduan ASTM A335 | maksimum 16000mm |
| Daftar ASTM A335 Kelas P22 AS untuk Pipa Tanpa Jahit | Daftar 20 - Daftar XXS (lebih berat atas permintaan) hingga 250 mm. |
| Bentuk pipa baja paduan UNS K21590 Seamlees | Bulat, persegi, persegi panjang, hidrolik dll. |
| Standar pipa UNS K21590 | ASTM A335 P22, SA335 P22 (dengan Sertifikat Uji IBR) |
| SA335 P22 Ukuran | 1/2 ∆ NB sampai 36 ∆ NB |
| Ketebalan dinding pipa ASTM A335 P22 | 3-12mm |
| AS Gr P22 Tabel pipa persegi panjang | SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, Semua Jadwal |
| P22 Asal usul | Eropa, Jepang, Korea, AS, Rusia, India (Tidak ada bahan Cina) |
| A335 P22 Toleransi pipa | Pipa yang ditarik dingin: +/- 0,1 mm Pipa yang digulung dingin: +/- 0,05mm |
| Kerangka pipa baja paduan ASTM A335 | Digulung dingin dan ditarik dingin |
| Jenis pipa baja paduan A335 P22 | Tanpa jahitan / ERW / Las / Pabrik |
| A335 P22 Panjang pipa tanpa jahitan | Single Random, Double Random & Cut Length. |
| ASTM A335 P22 ujung pipa persegi | Ujung Langsing, Ujung Berkilir, Dilalui |
| ASTM A335 baja paduan pipa Spesialisasi dalam | Bahan Diameter Besar SA335 P22 |
| Pengujian Tambahan ASTM A335 untuk Pipa Baja Alloy | NACE MR 0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, H2 SERVICE, IBR, dll. |
| ASME SA335 P22 Aplikasi bahan | Pipa baja paduan ferit tanpa jahitan untuk layanan suhu tinggi |
Komposisi kimia ASTM A335 P22
| C, % | Mn, % | P, % | S, % | Si, % | Cr, % | Mo, % |
| 0.015 maksimal | 0.30-0.61 | 0.025 maksimal | 0.025 maksimal | 0.50 maksimal | 1.90-2.60 | 0.87-1.13 |
Persyaratan Pengolahan Panas
| P5, P9, P11 dan P22 | |||
| Kelas | Jenis Pengolahan Panas | Rentang suhu normalisasi F [C] | Subkritis Annealing atau Tempering Kisaran suhu F [C] |
| P5 (b,c) | Penuh atau Isothermal Anneal | ||
| Normalkan dan Ambillah Kekuatan | ***** | 1250 [675] | |
| Subkritis Anneal (hanya P5c) | ***** | 1325 - 1375 [715 - 745] | |
| P9 | Penuh atau Isothermal Anneal | ||
| Normalkan dan Ambillah Kekuatan | ***** | 1250 [675] | |
| P11 | Penuh atau Isothermal Anneal | ||
| Normalkan dan Ambillah Kekuatan | ***** | 1200 [650] | |
| P22 | Penuh atau Isothermal Anneal | ||
| Normalkan dan Ambillah Kekuatan | ***** | 1250 [675] | |
| P91 | Normalkan dan Ambillah Kekuatan | 1900-1975 [1040 - 1080] | 1350-1470 [730 - 800] |
| Memadamkan dan Menghangatkan | 1900-1975 [1040 - 1080] | 1350-1470 [730 - 800] |

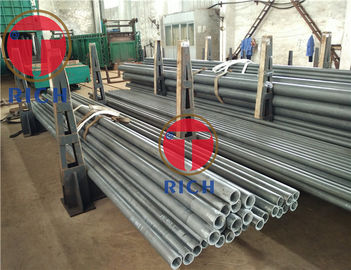

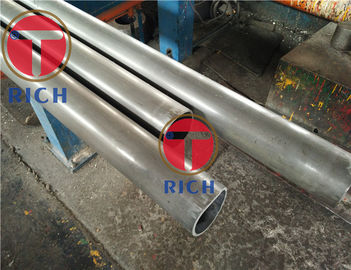

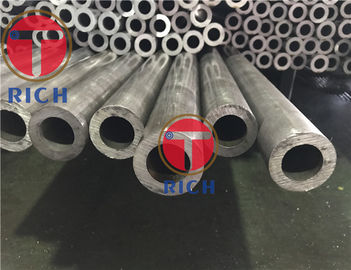

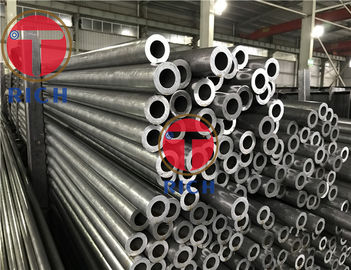

Gambar produk:
Pengantar Perusahaan:
Kemasan dan Pengiriman:
FAQ:
T: Apakah Anda perusahaan dagang atau produsen?
A: Kami adalah produsen pipa baja profesional.
T: Berapa lama waktu pengiriman Anda?
A: Umumnya dibutuhkan 7-14 hari jika barang ada di stok atau 30-60 hari jika tidak ada stok, ini terutama tergantung pada kuantitas.
Q: Apakah Anda menyediakan sampel gratis?
A: Ya,kami bisa menawarkan sampel gratis tetapi perlu membayar biaya pengiriman.
T: Apa syarat pembayaran Anda?
A:Pembayaran <=1000USD, 100% di muka. Pembayaran>=1000USD, 30% T / T di muka, saldo sebelum pengiriman.
Jika Anda memiliki pertanyaan lain, pls merasa bebas untuk menghubungi kami.
