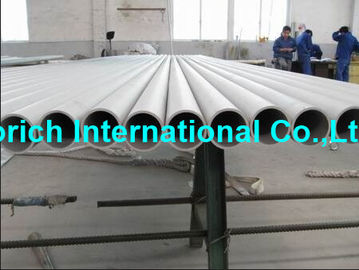

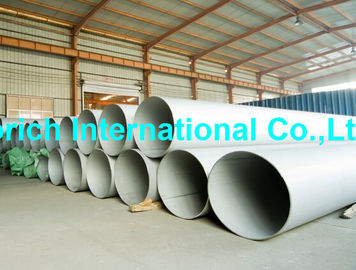

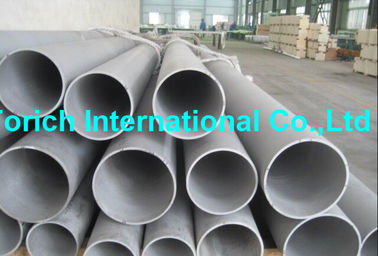

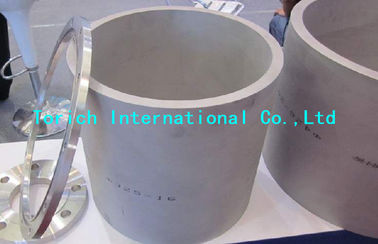

ASTM B167 Tabung Inconel Stainless Steel, Inconel 600 Pipa / Inconel 601 Tube
Rincian produk
inconel 718 tube
,inconel 601 tube
Tabung stainless steel ASTM B167 Paduan Nikel-Krom-Besi ((UNS N06600, N06601, N06690, N06025 dan N06045) Tabung dan tabung tanpa jahitan
ASTM B167 Nickel-Chromium-Iron Alloys ((UNS N06600, N06601, N06690, N06025 dan N06045) Pipa dan Tabung Tanpa Jajar
Dalam pipa dan tabung tanpa jahitan yang diproses dingin, diproses panas, dan diproses panas untuk aplikasi tahan korosi dan tahan panas umum
Aplikasi:Pipa baja untuk aplikasi tahan korosi umum dan tahan panas
Jangkauan ukuran:O.D.:6-127mm W.T.:1-30mm L: sesuai dengan kebutuhan pelanggan
Tabung U tersedia
| Elemen | PaduanN06600 | PaduanN06601 | PaduanN06690 | PaduanN06025 | PaduanN06045 |
| Nikel | 72.0 menit | 58.0-63.0 | 58.0 menit | Sisanya | 45.0 menit |
| Kromium | 14.0-17.0 | 21.0-25.0 | 27.0-31.0 | 24.0-26.0 | 26.0-29.0 |
| Besi | 6.0-10.0 | Sisanya | 7.0-11.0 | 8.0-11.0 | 21.0-25.0 |
| Mangan | 1.0 maksimal | 1.5 maksimal | 0.5 maksimal | 0.15 maksimal | 1.0 maksimal |
| Aluminium |
| 1.0-1.7 |
| 1.8-2.4 |
|
| Karbon | 0.15 maksimal | 0.10 maksimal | 0.05 maksimal | 0.15-0.25 | 0.05-0.12 |
| Tembaga | 0.5 maksimal | 1.0 maksimal | 0.5 maksimal | 0.1 maksimal | 0.3 maksimal |
| Silikon | 0.5 maksimal | 0.5 maksimal | 0.5 maksimal | 0.5 maksimal | 2.5-3.0 |
| Sulfur | 0.015 maksimal | 0.015 maksimal | 0.015 maksimal | 0.010 maksimal | 0.010 maksimal |
| Titanium |
|
|
| 0.1-0.2 |
|
| Fosfor |
|
|
| 0.020 maksimal | 0.020 maksimal |
| Zirconium |
|
|
| 0.01-0.10 |
|
| Yttrium |
|
|
| 0.05-0.12 |
|
| Cerium |
|
|
|
| 0.03-0.09 |
| Nitrogen |
|
|
|
| 0.05-0.12 |
-
Auto Parts ASTM A513 Cold Rolling Tabung Baja Dilas dengan Produksi DOM
Auto Parts ASTM A513 Welded Steel Tubes with DOM production ASTM A513 Electric-Resistance-Welded Carbon and Alloy Steel Mechanical Tubing Applications: for Machinery, Mechanical Engineering 1. Standard: ASTM A513 cold rolling welded precision steel tubes 2. Steel Grade: SAE1010, SAE1020, other materials upon agreement with customers. 3. Production method: Cold rolling on the weled steel tubes, to reach high accuracy on the OD and WT tolerance 4. Size range: O.D.:6-350mm W.T. -
25mm Diameter Bright Annealing Tabung Baja Mulus untuk Sistem Hidrolik
EN10305-1 E235 E355 NBK Bright Annealing Precision Steel Pipes for Hydraulic Systems EN10305-1 NBK Bright Annealed Precision steel pipes for Hydraulic system OD:4-80 (mm) WT0.5-10 (mm) Length 1000-12000mm Product name: Seamless Precision Steel Pipe Application: for hydraulic systems precision steel pipes for Hydraulic system OD (mm) WT (mm) Length (mm) 4 0.5 5800-6000 4.0 1.0 5800-6000 5.0 1.0 5800-6000 6.0 1.0 5800-6000 6.0 1.5 5800-6000 8.0 1.0 5800-6000 9.5 0.89 5800-6000 -
Tabung Baja Hitam Fosfat Seamless Presisi untuk Sistem Hidraulik
Steel Pipes with high precision for Hydraulic Systems with Black Phosphating surface Black Phosphated Hydraulic Tubes with High Precision and tight tolerance, the tubes are produced by precision cold drawn and cold rolling, then bright annealed in a protected atmosphere, afterwards it is blackphosphated on the surface Production process: DIN series tubes, cold drawn and bright annealed precision seamless steel tube is used as the tube to be phosphated. The phosphorization is -
Tabung Baja Galvanis Mulus Presisi DIN2391 EN103052 ST35.0 ST37
Precision Seamless Galvanized Steel Tubes DIN2391 EN103052 ST35.0 ST37 Production Process: Cold rolling by Cold pilger machine and Cold rolling machine,galvanized and zinc plated could be applied. Cold Rolled and Galvanized Steel Tube Production process: DIN highly accurate, cold rolled and bright seamless steel tube is used as the tube to be galvanized. The outer wall of tube is electroplated. The caps are covered at two ends of tube to prevent from the dust. Main Features:
