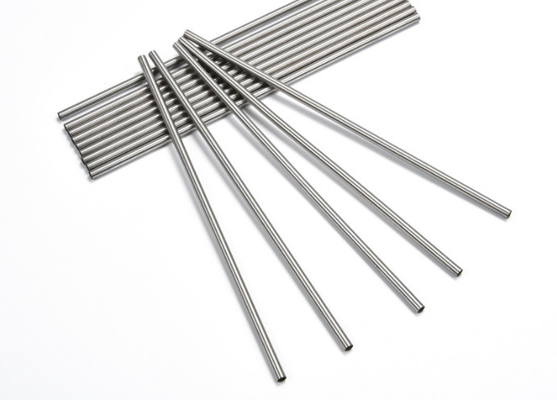

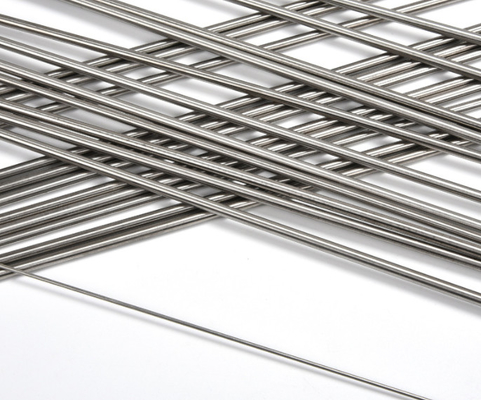

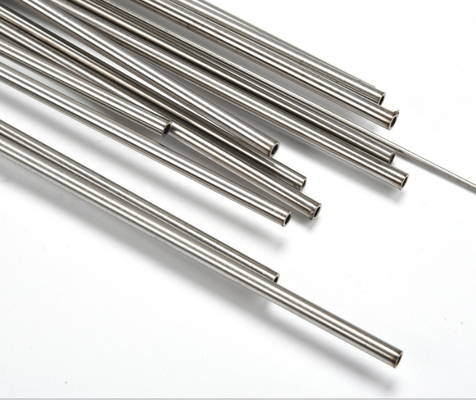

Tabung Kapiler Stainless Steel Presisi Tinggi, 0,046 I.D. untuk Instrumen dan Perangkat Medis
Rincian produk
stainless steel putaran tabung
,stainless tube steel
Tabung Kapileri Rostless 304, 316 Untuk Ruang Angkasa / Elektronik
Kabel listrik karbida
Kawat elektroda tungsten
Tabung elektroda untuk tindik
Diameter: 0,4-12mm
Ketebalan dinding:0.1-2mm
Panjangnya:200-6000mm Atas permintaan pelanggan
Aplikasi:
Kawat elektrode karbida untuk mesin pengeboran mikro pori CNC-EDM
Alat elektroda yang diperlukan untuk berbagai mesin EDM pori kecil
untuk Jarum Elektronik presisi Industri peralatan medis Instrumen tabung dll
Banyak digunakan di bidang:
Perlengkapan udara
Elektronik
Penelitian ilmiah
Industri kimia
Peralatan medis
Area instrumen
Kelas stainless:304,304L,316, 321, 310S,4J29,4J36
Aluminium:L2Y2, LF21
Kelas Kuningan: T2, H62, H65, H68
Kelas khusus akan sesuai dengan kebutuhan khusus pelanggan.
Metode produksi:Tanpa jahitan dan dilas
Kondisi pengiriman:Lampu Polish yang Cerah
Toleransiadalah -0,03mm ~ +0,03mm
Karakteristik: Diameter kecil Precision Surface terang bersih di dalam
Aplikasi:
Tabung dapat digunakan dalam banyak aplikasi di manaKTP kecil.diperlukan
Sesuaikan tabung untuk Anda: Memotong panjang pendek Cross Hole ID Chamfer
Kabel elektroda karbida (kawat keras) dan kawat elektroda paduan tungsten murni ((kawat lunak), terutama digunakan dalam menyetrum dan mesin mikro.
Produk-produk ini dapat diproduksi sesuai dengan kebutuhan pelanggan.
Spesifikasi untuk kawat elektroda karbida:OD 0,05mm-0,50mm,L300/400mm,keakuratan hingga ± 0.001
Spesifikasi untuk kawat elektroda paduan tungsten murni:OD 0,05mm-0,50mm,L300/400mm,keakuratan hingga ± 0.001
| OD mm | Lmm | bahan | |
| paduan keras | paduan wolfram murni | ||
| 0.05 | 300/400 | o | o |
| 0.06 | 300/400 | o | o |
| 0.07 | 300/400 | o | o |
| 0.08 | 300/400 | o | o |
| 0.09 | 300/400 | o | o |
| 0.10 | 300/400 | o | o |
| 0.11 | 300/400 | o | o |
| - | - | o | o |
| - | - | o | o |
| - | - | o | o |
| 0.5 | 300/400 | o | o |
Tabung kapiler elektroda berlubang
| ODmm | Babi tembaga | ODmm | Babi tembaga | OD mm | Babi tembaga |
| panjang mm | panjang mm | panjang mm | |||
| 1.00 | 400 | 1.70 | 400 | 2.60 | 400 |
| 1.05 | 400 | 1.80 | 400 | 2.70 | 400 |
| 1.10 | 400 | 1.90 | 400 | 2.80 | 400 |
| 1.20 | 400 | 2.00 | 400 | 2.90 | 400 |
| 1.30 | 400 | 2.10 | 400 | 3.00 | 400 |
| 1.35 | 400 | 2.20 | 400 | 3.50 | 600 |
| 1.40 | 400 | 2.30 | 400 | 4.00 | 600 |
| 1.45 | 400 | 2.40 | 400 | 4.50 | 600 |
| 1.50 | 400 | 2.45 | 400 | 5.00 | 600 |
| 1.60 | 400 | 2.50 | 400 | 6.00 | 600 |
Tabung kapiler elektroda berlubang tunggal
| ODmm | Babi tembaga | ODmm | Babi tembaga | OD mm | Babi tembaga |
| panjang mm | panjang mm | panjang mm | |||
| 0.20 | 200 | 0.65 | 400 | 1.20 | 400 |
| 0.25 | 250 | 0.70 | 400 | 1.25 | 400 |
| 0.30 | 400 | 0.73 | 400 | 1.26 | 400 |
| 0.33 | 400 | 0.75 | 400 | 1.30 | 400 |
| 0.35 | 400 | 0.80 | 400 | 1.35 | 400 |
| 0.40 | 400 | 0.83 | 400 | 1.40 | 400 |
| 0.45 | 400 | 0.85 | 400 | 1.50 | 400 |
| 0.50 | 400 | 0.90 | 400 | 1.60 | 400 |
| 0.53 | 400 | 0.92 | 400 | 1.70 | 400 |
| 0.55 | 400 | 0.95 | 400 | 1.80 | 400 |
| 0.58 | 400 | 1.00 | 400 | 1.90 | 400 |
| 0.60 | 400 | 1.05 | 400 | 2.00 | 400 |
| 0.63 | 400 | 1.10 |
-
