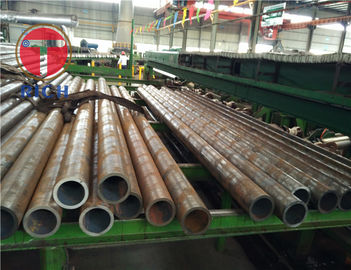

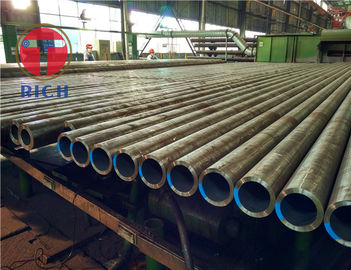

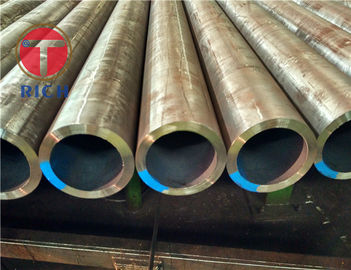

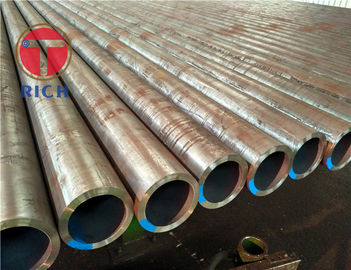

Hot Rolling Pipa Baja Karbon Seamless Untuk Layanan Cair GB / T 8163 10 20
Properti Dasar
Tempat Asal:
Cina
Nama merek:
TORICH
Sertifikasi:
ISO 9001-2008 ISO 14001 TS 16949
Nomor Model:
GB / T 8163
Properti Perdagangan
Jumlah Pesanan Minimum:
5 ton
Harga:
Dapat dinegosiasikan
Ketentuan Pembayaran:
T / T, L / C, D / P, D / A, Western Union, MoneyGram
Kemampuan Penyediaan:
60000 Ton per Tahun
Ringkasan Produk
Deskripsi produk: GB/T 8163 10 20 Tabung pipa baja tanpa jahitan baja karbon untuk layanan cairan Kelas baja/bahan baja:Sifat Mekanis ((panjang): Kelas baja Kekuatan tarik MPa Kekuatan hasil MPa Elongasi % s≤16 s> 16 Tidak kurang dari 10 335-475 205 195 24 20 410-550 245 235 20 Q295 430-610 295 285 ...
Rincian produk
Menyoroti:
Pipa baja mulus
,Seamless Carbon Steel tube
Production:
Ditarik dingin / Digulung panas
Heat Treatment:
Hot Rolled, Annealing, normalisasi
Surface:
Kebutuhan Pelanggan
Material:
10, 20, Q295, Q345
End Protector:
Tutup Pipa Plastik
Shape:
Bentuk lingkaran
Type:
Tabung baja mulus
Usage:
untuk layanan cair
Deskripsi Produk
Deskripsi produk:
GB/T 8163 10 20 Tabung pipa baja tanpa jahitan baja karbon untuk layanan cairan
Kelas baja/bahan baja:
Sifat Mekanis ((panjang):
| Kelas baja | Kekuatan tarik MPa | Kekuatan hasil MPa | Elongasi % | |
| s≤16 | s> 16 | |||
| Tidak kurang dari | ||||
| 10 | 335-475 | 205 | 195 | 24 |
| 20 | 410-550 | 245 | 235 | 20 |
| Q295 | 430-610 | 295 | 285 | 22 |
| Q345 | 490-665 | 325 | 315 | 21 |
Kondisi pengiriman:
Hot rolling, annealing, normalisasi
Jangkauan ukuran:
OD: 5,0-660mm
WT:0.5-60mm
Panjang: maksimal 12000mm
Ukuran produksi biasa kami: 73x3.5mm, 114x6mm, 203x10mm dll
Karakteristik tabung baja tanpa jahitan:
Kualitas Permukaan yang Baik
Toleransi OD dan ID yang baik dikontrol sesuai dengan standar teknis
Kualitas stabil
100% Uji arus Eddy
TORICH Jaminan Kualitas
Proses Produksi:
Pengolahan panas atau pengolahan panas
Gulung panas tanpa jahitan
