Seragam WT Tabung Mulus Dinding Paling Tipis dari Stainless Steel GB / T 3089
Rincian produk
stainless steel putaran tabung
,stainless tube steel
Kekuatan retak creep yang tinggi Tabung baja tanpa jahitan untuk boiler tekanan rendah dan menengah GB/T 3089
Spesifikasi:
Bahan:S30408 S30403 SUS304/316L ASTM 304/316L 1.4404 1.4571
Jangkauan Ukuran:OD:10.3-102.6mm
WT:0.15-0.6mm
Panjang Umum:0.8-6m
Toleransi:
Menurut tabel berikut atau permintaan pelanggan.
Yang ditawarkan oleh kami dalam berbagai spesifikasi dan kualitas, kamiDinding yang paling tipis tanpa jahitanTabung baja tahan karatmenonjol dari yang lain.
Kami adalah produsen terkemuka, eksportir dan pemasokTabung baja tahan karat tanpa jahitan dengan dinding paling tipisdari Cina.
PeraturanTabung baja tahan karat tanpa jahitan yang paling tipisdirancang dengan tepat oleh tim veteran kami menjaga semua aturan dan peraturan industri.
Kelas baja/bahan baja/nomor baja:
| Kelas | Analisis Kimia % | ||||||||
| C ≤ | Ya. ≤ | Mn ≤ | S ≤ | P ≤ | Cr | Tidak | Ti | Mo | |
| 06Cr19Ni10 | 0.08 | 1.00 | 2.00 | 0.030 | 0.035 | 18.00- 20.00 | 8.00- 11.00 | - | - |
| 022Cr19Ni10 | 0.030 | 1.00 | 2.00 | 0.030 | 0.035 | 18.00- 20.00 | 8.00- 12.00 | - | - |
| 022Cr17Ni12Mo2 | 0.030 | 1.00 | 2.00 | 0.030 | 0.035 | 16.00- 18.00 | 10.00- 14.00 | - | 2.00- 3.00 |
| 06Cr17Ni12Mo2Ti | 0.080 | 1.00 | 2.00 | 0.030 | 0.035 | 16.00- 18.00 | 10.00- 14.00 | ≥5C | 2.00- 3.00 |
| 06Cr18Ni11ti | 0.080 | 1.00 | 2.00 | 0.030 | 0.035 | 17.00- 19.00 | 9.00- 12.00 | 5C-0.7 | - |
| Kelas | Sifat Mekanis % | |
| Rm/(N/mm2) ≥ | A% ≥ | |
| 06Cr19Ni10 | 520 | 35 |
| 022Cr19Ni10 | 440 | 40 |
| 022Cr17Ni12Mo2 | 480 | 40 |
| 06Cr17Ni12Mo2Ti | 540 | 35 |
| 06Cr18Ni11ti | 520 | 40 |
Karakteristik:
Konsentrisitas yang baik
Toleransi OD dan ID yang baik
Keakuratan Tinggi
Kualitas stabil
Kerontokan yang halus
TORICH Jaminan Kualitas
Pengolahan:
Bahan baku
↓
Inspeksi yang datang
↓
Penyimpanan→Pemotongan→PEMALANGAN→Pengolahan LUBRIKASI→Pembersihan→PHOSPHORI CLEAN
↓
PEMUTUSAN ◄ PEMUTUSAN ◄ PENGURUSAN ◄ PENGURUSAN ◄ PEMUTUSAN ◄ PEMUTUSAN ◄ PEMUTUSAN ◄ PEMUTUSAN
↓
INSPEKSI FINAL→PEMBUNJUKAN→PENGALANGAN
Kondisi teknis pengiriman:Biasanya dikirim dalam kondisi perawatan panas
Banyak digunakan di bidang:Penelitian ilmiah, industri aerospace, komponen pneumatik, instrumen

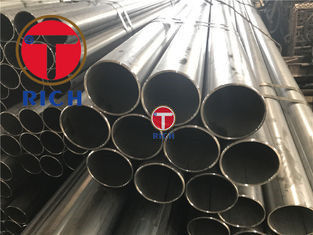

Gambar produk:
-
