GB / T3089 44,5x0.9mm Dinding Tipis Tabung Stainless Steel Mulus
Rincian produk
stainless steel putaran tabung
,stainless tube steel

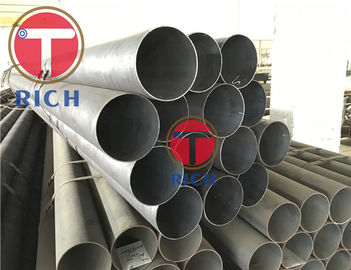

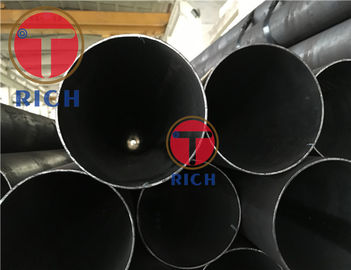

GB/T3089 44.5x0.9mm Tabung Stainless Steel Tanpa Sambungan dengan Dinding Tertipis
Menawarkan oleh kami dalam banyak spesifikasi dan kualitas, kamiTabung stainless steel tanpa jahitan dengan dinding paling tipisKami adalah produsen terkemuka, eksportir dan pemasokTabung stainless steel tanpa jahitan dengan dinding paling tipisdari Cina.Tabung stainless steel tanpa jahitan dengan dinding paling tipisdirancang dengan tepat oleh tim veteran kami mengingat semua aturan dan peraturan industri.
Kelas baja/bahan baja/nomor baja:
| Kelas | Analisis Kimia % | ||||||||
| C ≤ | Ya. ≤ | Mn ≤ | S ≤ | P ≤ | Cr | Tidak | Ti | Mo | |
| 06Cr19Ni10 | 0.08 | 1.00 | 2.00 | 0.030 | 0.035 | 18.00- 20.00 | 8.00- 11.00 | - | - |
| 022Cr19Ni10 | 0.030 | 1.00 | 2.00 | 0.030 | 0.035 | 18.00- 20.00 | 8.00- 12.00 | - | - |
| 022Cr17Ni12Mo2 | 0.030 | 1.00 | 2.00 | 0.030 | 0.035 | 16.00- 18.00 | 10.00- 14.00 | - | 2.00- 3.00 |
| 06Cr17Ni12Mo2Ti | 0.080 | 1.00 | 2.00 | 0.030 | 0.035 | 16.00- 18.00 | 10.00- 14.00 | ≥5C | 2.00- 3.00 |
| 06Cr18Ni11ti | 0.080 | 1.00 | 2.00 | 0.030 | 0.035 | 17.00- 19.00 | 9.00- 12.00 | 5C-0.7 | - |
| Kelas | Sifat Mekanis % | |
| Rm/(N/mm2) ≥ | A% ≥ | |
| 06Cr19Ni10 | 520 | 22 |
| 022Cr19Ni10 | 440 | 40 |
| 022Cr17Ni12Mo2 | 480 | 40 |
| 06Cr17Ni12Mo2Ti | 540 | 35 |
| 06Cr18Ni11ti | 520 | 40 |
Ketebalan permukaan:
Ra≤1,6 μm
Ukuran:
OD:10.3-102.6mm WT:0.15-0.6mm Panjang:0.8-6m
Ukuran biasa:
15.4X0.2 18.4X0.2 20.4X0.2
24.4X0.2 35X0.5 40.4X0.2
41X0.5 44.5X0.9 60X0.5
74X0.5 150.8X0.4 250.8X0.4
Kondisi pengiriman:
Pengolahan panas
Pemeriksaan di kapal kerja:

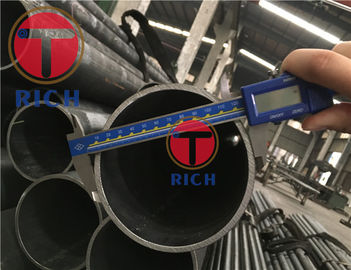

Pengukuran Ukuran
Uji mekanik
Uji korosi antar butir
Uji permukaan kualit
APernyataan:

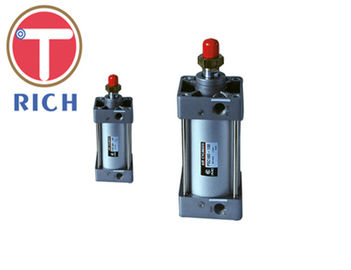

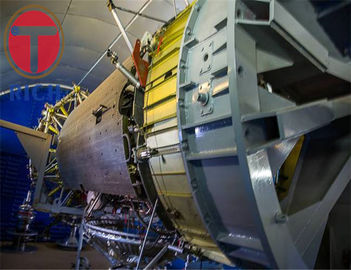

Penelitian ilmiah, industri aerospace, komponen pneumatik, instrumen
-
