Kustom Austenitic Stainless Diameter Kecil Tabung Baja Mulus GB / T 3090
Properti Dasar
Tempat Asal:
Zhejiang China
Nama merek:
TORICH
Sertifikasi:
ISO 9001 ISO 14001 TS 16949
Nomor Model:
GB / T 3090
Properti Perdagangan
Jumlah Pesanan Minimum:
0,1 ton
Harga:
Dapat dinegosiasikan
Ketentuan Pembayaran:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Kemampuan Penyediaan:
10000 Ton / Tahun
Ringkasan Produk
Tabung baja tahan karat austenit dengan diameter kecil GB/T 3090 Spesifikasi: Bahan:SUS 304/316 ASTM 304/316/321 EN 1.4301/1.4541/1.4404 dll Jangkauan Ukuran:OD:0.4-12mm WT:0.1-2mm Panjang Umum:0.5-4m Toleransi: Menurut tabel berikut atau permintaan pelanggan. Komposisi kimia Besi kelas Komposisi ...
Rincian produk
Menyoroti:
stainless steel putaran tabung
,stainless tube steel
Product Name:
Tabung Baja Mulus Austenitik Stainless Ukuran Kecil GB / T 3090
Material:
SUS 304/316 ASTM 304/316/321 EN 1.4301 / 1.4541 / 1.4404
Port:
Shanghai ， Ningbo
Application:
Riset ilmiah, industri kedirgantaraan, komponen pneumatik, instrumen
Shape:
Bulat
OD:
0.4-12mm
WT:
0,1-2mm
Length:
0,5-4 m
Deskripsi Produk
Tabung baja tahan karat austenit dengan diameter kecil GB/T 3090
Spesifikasi:
Bahan:SUS 304/316 ASTM 304/316/321 EN 1.4301/1.4541/1.4404 dll
Jangkauan Ukuran:OD:0.4-12mm
WT:0.1-2mm
Panjang Umum:0.5-4m
Toleransi:
Menurut tabel berikut atau permintaan pelanggan.
Komposisi kimia
| Besi kelas | Komposisi kimia,% | ||||||||
| C | Ya. | Mn | P | S | Tidak | Cr | Mo | Ti | |
| 0Cr18Ni9 | ≤0.07 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.030 | 8.00 ~ 11.00 | 17.00~19.00 |
️ |
️ |
| 00Cr19Ni10 | ≤ 0.03 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.030 | 8.00 ~ 12.00 | 18.00 ~ 20.00 |
️ |
️ |
| 0Cr18Ni10Ti | ≤ 0.08 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.030 | 9.00 ~ 12.00 | 17.00~19.00 |
️ | > 5% |
| 0Cr17Ni12Mo2 | ≤ 0.08 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.030 | 10.00 ~ 14.00 | 16.00 ~ 18.50 | 2.00 ~ 3.00 |
️ |
| 00Cr17Ni14Mo2 | ≤ 0.03 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.030 | 12.00 ~ 15.00 | 16.00 ~ 18.00 | 2.00 ~ 3.00 |
️ |
| 1Cr18Ni9Ti | ≤ 0.12 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.030 | 8.00 ~ 11.00 | 17.00~19.00 |
️ | 5 ((C%-0,02 ~ 0,80) |
Sifat mekanik
| Besi kelas | Sistem pengolahan panas yang direkomendasikan | Kekuatan tarik N/mm2(Mpa) | Elongasi A% | Kg/dm3 |
| Tidak kurang dari | ||||
| 0Cr18Ni9 | 1010 ~ 1150°C | 520 | 35 | 7.93 |
| 00Cr19Ni10 | 1010 ~ 1150°C | 480 | 35 | 7.93 |
| 0Cr18Ni10Ti | 920 ~ 1150°C | 520 | 35 | 7.95 |
| 0Cr17Ni12Mo2 | 1010 ~ 1150°C | 520 | 35 | 7.90 |
| 00Cr17Ni14Mo2 | 1010 ~ 1150°C | 480 | 35 | 7.98 |
| 1Cr18Ni9Ti | 100~1100°C | 520 | 35 | 7.90 |
| Catatan: Perpanjangan tidak kurang dari 25% untuk tabung OD kurang dari 3,2 mm atau WT kurang dari 0,30 mm | ||||
Karakteristik:
Konsentrisitas yang baik
Toleransi OD dan ID yang baik
Keakuratan Tinggi
Kualitas stabil
Kerontokan yang halus
TORICH Jaminan Kualitas
Pengolahan:
Tanpa jahitan dan dilas
Bahan baku
↓
Inspeksi yang datang
↓
Penyimpanan→Pemotongan→PEMALANGAN→Pengolahan LUBRIKASI→Pembersihan→PHOSPHORI CLEAN
↓
PEMUTUSAN ◄ PEMUTUSAN ◄ PENGURUSAN ◄ PENGURUSAN ◄ PEMUTUSAN ◄ PEMUTUSAN ◄ PEMUTUSAN ◄ PEMUTUSAN
↓
INSPEKSI FINAL→PEMBUNJUKAN→PENGALANGAN
Kondisi teknis pengiriman:Biasanya dikirimkan dalam BK atau sesuai permintaan pelanggan
Banyak digunakan di bidang:
Perlengkapan udara
Elektronik
Penelitian ilmiah
Industri kimia
Peralatan medis
Area instrumen

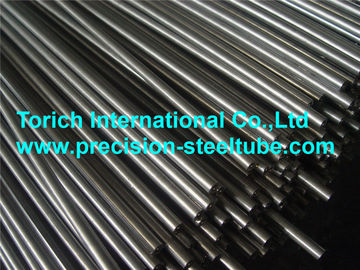

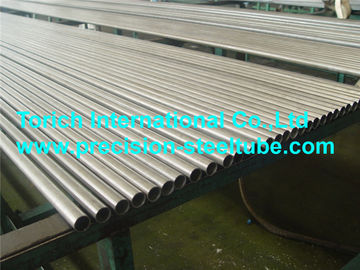

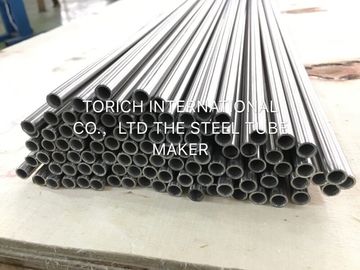

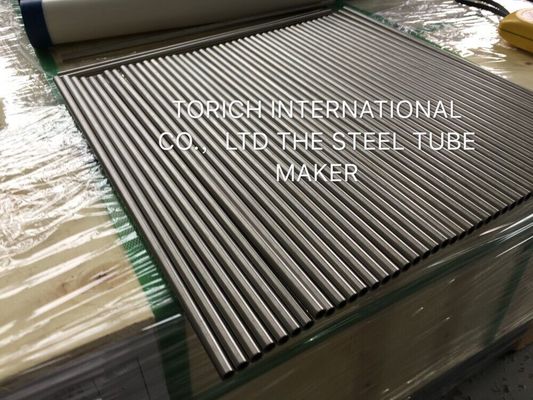

Gambar produk:
