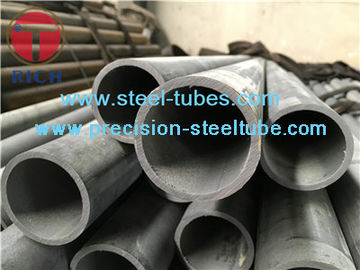

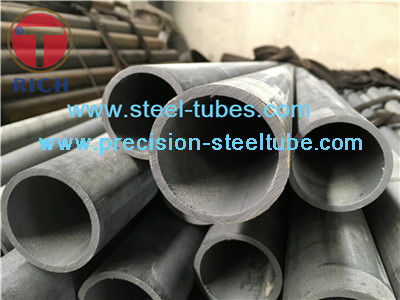

GB18248 34CrMo4 30CrMnSiA Tabung Baja Mulus Untuk Tabung Gas
Properti Dasar
Tempat Asal:
Cina
Nama merek:
Torich
Sertifikasi:
ISO 9001 ISO 14001 TS 16949
Nomor Model:
GB18248
Properti Perdagangan
Jumlah Pesanan Minimum:
5 ton
Harga:
Dapat dinegosiasikan
Ketentuan Pembayaran:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Kemampuan Penyediaan:
60000 ton per tahun
Ringkasan Produk
GB18248 34CrMo4 30CrMnSiA tabung baja tanpa jahitan untuk tabung gas Deskripsi produk: GB18248 34CrMo4 30CrMnSiA tabung baja tanpa jahitan untuk tabung gas Bagian dalam dan luar permukaan yang baik, tabung baja paduan. Standar: GB18248 JIS G3429 Aplikasi:untuk Silinder Gas Tekanan Tinggi Jangkauan ...
Rincian produk
Menyoroti:
Pipa baja mulus
,stainless steel presisi tubing
Product Name:
GB18248 34CrMo4 30CrMnSiA Tabung Baja Mulus untuk Tabung Gas
Type:
Tabung baja mulus
Material:
30CrMo 34CrMo4 35CrMo4
Usage:
Gas Cylinder
Shape:
Bentuk bulat
Length:
4-12 m
OD:
5-420mm
WT:
0.5-50mm
Surface:
diminyaki
Manufacturing Technique:
Hot Rolled
Deskripsi Produk
GB18248 34CrMo4 30CrMnSiA tabung baja tanpa jahitan untuk tabung gas
Deskripsi produk:
GB18248 34CrMo4 30CrMnSiA tabung baja tanpa jahitan untuk tabung gas
Bagian dalam dan luar permukaan yang baik, tabung baja paduan.
Standar: GB18248 JIS G3429
Aplikasi:untuk Silinder Gas Tekanan Tinggi
Jangkauan ukuran:
OD: 5-420mm WT: 0.5-50mm Panjang:4-12m
Standar yang relevan: KS D3573
Metode Pemurnian Baja:
Baja ini adalah baja yang dihaluskan dengan pemurnian listrik atau konverter oksigen.
Metode pembuatan tabung baja:
Gulung panas (mengembang) atau gulung dingin (menggambar)
Kelas baja dan komponen kimia
| Tidak, tidak. | Kelas | Komponen kimia net ((fraksi kualitas) /% | ||||||||||
| C | Ya. | Mn | P | Sb | P+Sb | Cr | Mo | V | Tidak | Cu | ||
| 1 | 37Mna | 0.34 ~ 0.40 | 0.10 ~ 0.30 | 1.35 ~ 1.75 | ≤ 0.020 | ≤ 0.020 | ≤ 0.030 | ≤ 0.30 | - | - | ≤ 0.30 | ≤ 0.20 |
| 2 | 34Mn2V | 0.30 ~ 0.37 | 0.17 ~ 0.37 | 1.40 ~ 1.75 | ≤ 0.020 | ≤ 0.020 | ≤ 0.030 | ≤ 0.30 | - | 0.07 ~ 0.12 | ≤ 0.30 | ≤ 0.20 |
| 3 | 30CrMoa | 0.26 ~ 0.34 | 0.17 ~ 0.37 | 0.40 ~ 0.70 | ≤ 0.020 | ≤ 0.020 | ≤ 0.030 | 0.80 ~ 1.10 | 0.15 ~ 0.25 | - | ≤ 0.30 | ≤ 0.20 |
| 4 | 35CrMoa | 0.32 ~ 0.40 | 0.17 ~ 0.37 | 0.40 ~ 0.70 | ≤ 0.020 | ≤ 0.020 | ≤ 0.030 | 0.80 ~ 1.10 | 0.15 ~ 0.25 | - | ≤ 0.30 | ≤ 0.20 |
| 5 | 34CrMo4a,c | 0.30 ~ 0.37 | ≤ 0.40 | 0.60 ~ 0.90 | ≤ 0.020 | ≤ 0.020 | ≤ 0.030 | 0.90 ~ 1.20 | 0.15 ~ 0.30 | - | ≤ 0.30 | ≤ 0.20 |
| 6 | 30CrMnSiA | 0.28 ~ 0.34 | 0.90 ~ 1.20 | 0.80 ~ 1.10 | ≤ 0.020 | ≤ 0.020 | ≤ 0.030 | 0.80 ~ 1.10 | ≤ 0.10 | - | ≤ 0.30 | ≤ 0.20 |
