GB / T 3093 Tabung Baja Presisi Tekanan Tinggi untuk Mesin Diesel, Panjang 1.5-6m
Properti Dasar
Tempat Asal:
Zhejiang China
Nama merek:
TORICH
Sertifikasi:
ISO 9001 ISO 14001 TS 16949
Nomor Model:
GB / T 3093
Properti Perdagangan
Jumlah Pesanan Minimum:
5 ton
Harga:
USD 400-800/Ton
Ketentuan Pembayaran:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Kemampuan Penyediaan:
50000 Ton / Tahun
Ringkasan Produk
Tabung baja tanpa jahitan bertekanan tinggi untuk mesin diesel GB/T 3093 Spesifikasi: Bahan:10A 20A Q345A Jangkauan Ukuran:OD:4-1200mm WT:0.3-200mm Panjang Umum:1.5- 6m Toleransi: Menurut tabel berikut atau permintaan pelanggan. Karakteristik:Keperluan Teknis Komponen kimia Nama Kelas Komponen kimia...
Rincian produk
Menyoroti:
Presisi pipa baja
,precision pipes and tubes
Product Name:
Tabung Baja Seamless Tekanan Tinggi untuk Mesin Diesel GB / T 3093
Material:
10A 20A Q345A
Surface:
Dengan perlindungan anti karat
Application:
Mesin diesel
Shape:
Bulat
OD:
4-1200mm
WT:
0.3-200mm
Length:
1,5-6 m
Deskripsi Produk
Tabung baja tanpa jahitan bertekanan tinggi untuk mesin diesel GB/T 3093
Spesifikasi:
Bahan:10A 20A Q345A
Jangkauan Ukuran:OD:4-1200mm
WT:0.3-200mm
Panjang Umum:1.5- 6m
Toleransi:
Menurut tabel berikut atau permintaan pelanggan.
Karakteristik:Keperluan Teknis
Komponen kimia
| Nama
| Kelas | Komponen kimia(pecahan massa)% | |||||||
| C | Ya. | Mn | P | S | Cr | Tidak | Cu | ||
| Maksimal | |||||||||
| U20103 | 10A | 0.07-0.13 | 0.17-0.37 | 0.35-0.65 | 0.03 | 0.03 | 0.15 | 0.30 | 0.20 |
| U20203 | 20A | 0.17-0.23 | 0.17-0.37 | 0.35-0.65 | 0.03 | 0.03 | 0.25 | 0.30 | 0.20 |
| L03451 | Q345A | 0.20Max | 0.55Max | 1.00-1.60 | 0.03 | 0.30 | 0.30 | 0.30 | 0.20 |
Sifat Mekanis:
| Kelas | Kekuatan tarik /Mpa | Kekuatan yield/Mpa | Perpanjangan/% |
| Maksimal | |||
| 10A | 335-470 | 205 | 30 |
| 20A | 390-540 | 245 | 25 |
| Q345A | 470-630 | 345 | 22 |
Metode Produksi:Ditarik dingin
Kondisi teknis pengiriman:Ditarik dingin + Pengolahan panas
Digunakan secara luas di bidang/Aplikasi:Mesin diesel

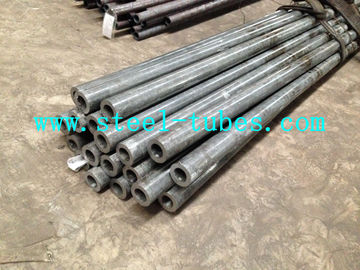

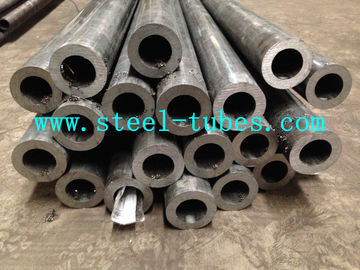

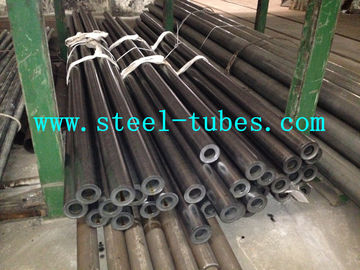

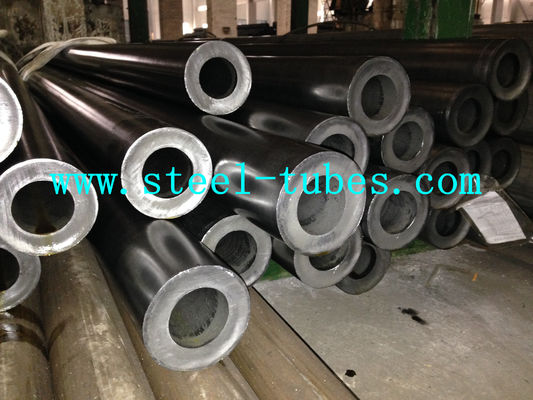

Gambar Produk
:
