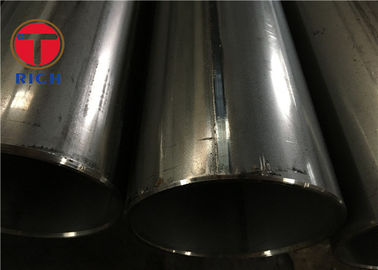

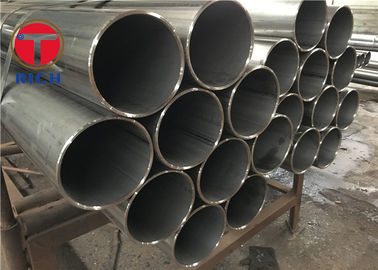

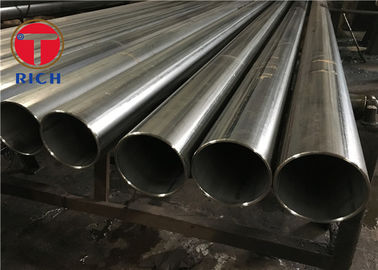

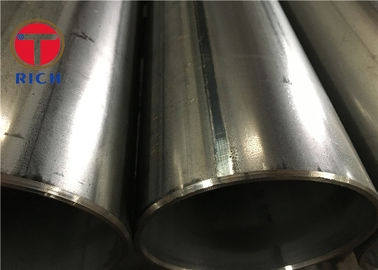

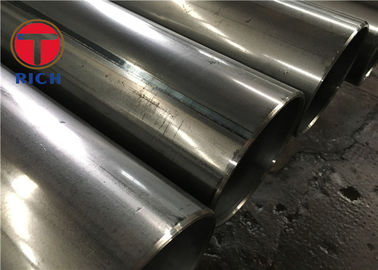

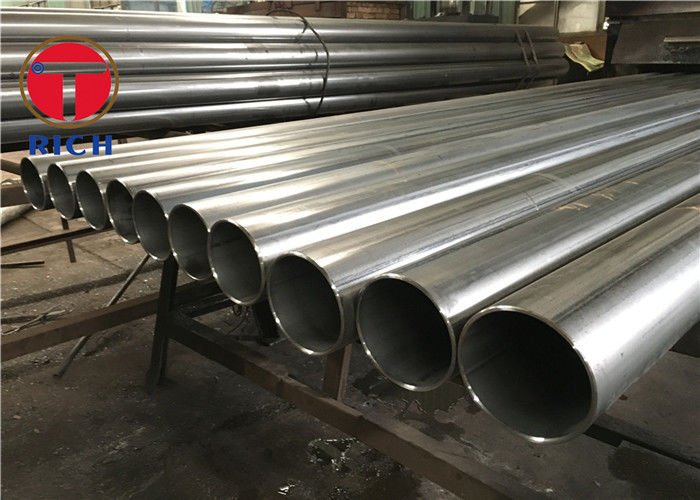

Pipa Baja Las Mekanik Busur Ganda GB / T12770 022Cr19Ni10
Properti Dasar
Tempat Asal:
Cina
Nama merek:
TORICH
Sertifikasi:
ISO9001:2008, ISO14001:2008, TS16949
Nomor Model:
GB / T12770
Properti Perdagangan
Jumlah Pesanan Minimum:
2 ton
Harga:
USD 600-1200 per Ton
Ketentuan Pembayaran:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Kemampuan Penyediaan:
20000 ton per tahun
Ringkasan Produk
GB/T12770 022Cr19Ni10 Pengelasan Arkus Ganda Struktur Mekanis Tabung Baja Ringan Ukuran: OD:20-500mm WT:2-50mm Panjang: 2-12m Aplikasi: Lapangan pemanas listrik seperti pemanas tabung logam,pemanas panas,termostat,perangkat pemanas,kondisi udara,pembekuan dan peralatan rumah tangga lainnya,pemanasan ...
Rincian produk
Menyoroti:
cold formed steel tube
,structural steel square tubing
Product Name:
GB / T12770 022Cr19Ni10 Busur Ganda Las Tabung Stainless Steel
Surface:
Pengawetan
Material:
12Cr18Ni9 06Cr19Ni10 022Cr19Ni10 022Cr17Ni12Mo2
Shape:
Bentuk bulat
Usage:
Struktur Mekanik
Type:
Tabung baja dilas
Length:
2-12 m
OD:
20-500mm
WT:
0,3-10mm
Deskripsi Produk
GB/T12770 022Cr19Ni10 Pengelasan Arkus Ganda Struktur Mekanis Tabung Baja Ringan
Ukuran:
OD:20-500mm
WT:2-50mm
Panjang: 2-12m
Aplikasi:
Lapangan pemanas listrik seperti pemanas tabung logam,pemanas panas,termostat,perangkat pemanas,kondisi udara,pembekuan dan peralatan rumah tangga lainnya,pemanasan dll.Makanan dan minuman,industri kimia minyak bumi,pertukaran panas, kondensor, lingkungan laut, pembuatan kertas, pupuk kimia, instrumen, medis, teknik otomotif, aeroangkasa, struktur pipa, tekstil priting dll.
Kondisi permukaan:
Cerah Annealed
Dipoli
Dipanaskan&Dipetik
Bright Annealed+Pelapis halus
Elektropolising
Sifat Mekanis Tabung Baja
|
Nomor |
Kelas | Kekuatan tarik yang dibutuhkan dari plastik Rp0.2/ MPa | Kekuatan tarik Rm MPa | Perpanjangan A/ % | ||
| Kondisi Pengolahan Panas | Kondisi non-pengolahan panas | |||||
| Tidak kurang dari | ||||||
| 1 | 12Cr18Ni9 | 210 | 520 | 35 | 25 | |
| 2 | 06Cr19Ni10 | 210 | 520 | |||
| 3 | 022Cr19Ni10 | 180 | 480 | |||
| 4 | 06Cr25Ni20 | 210 | 520 | |||
| 5 | 06Cr17Ni12Mo2 | 210 | 520 | |||
| 6 | 022Cr17Ni12Mo2 | 180 | 480 | |||
| 7 | 06Cr18Ni11Mo2 | 210 | 520 | |||
| 8 | 06Cr18Ni11Nb | 210 | 520 | |||
| 9 | 022Cr22Ni5Mo3N | 450 | 620 | 25 | - | |
| 10 | 022Cr23Ni5Mo3N | 485 | 655 | 25 | - | |
| 11 | 022Cr25Ni7Mo4N | 550 | 800 | 15 | - | |
| 12 | 022Cr19Ti | 180 | 360 | 20 | - | |
| 13 | 019Cr19Mo2NbTi | 240 | 410 | |||
| 14 | 06Cr13Al | 177 | 410 | |||
| 15 | 022Cr11Ti | 275 | 400 | 18 | - | |
| 16 | 022Cr12Ni | 275 | 400 | 18 | ||
| 17 | 06Cr13 | 210 | 410 | 20 | - | |
Toleransi OD
| Klasifikasi | Nominal OD | Toleransi yang Diizinkan | ||
| PC | PB | PA | ||
| HT | < 25 | ± 0.20 | ± 0.15 | ± 0.10 |
| ≥ 25 ~ < 40 | ± 0.30 | ± 0.25 | ± 0.20 | |
| ≥ 40 ~ < 63 | ± 0.50 | ± 0.30 | ± 0.25 | |
| ≥ 63 ~ < 90 | ± 0.60 | ± 0.50 | ± 0.40 | |
| ≥ 90 ~ < 159 | ± 0.80 | ± 0.65 | ± 0.50 | |
| ≥159~<300 | ± 0,8%D | ± 0,7%D | ± 0,5%D | |
| ≥ 300 ~ < 610 | ± 0,1%D | ± 0,8%D | ± 0,6%D | |
| ≥ 10 | protokol | protokol | protokol | |
| WC SP | < 25 | ± 0.15 | ± 0.12 | ± 0.10 |
| ≥ 25 ~ < 40 | ± 0.20 | ± 0.15 | ± 0.13 | |
| ≥ 40 ~ < 50 | ± 0.20 | ± 0.18 | ± 0.15 | |
| ≥ 50 ~ < 60 | ± 0.25 | ± 0.20 | ± 0.18 | |
| ≥ 60 ~ < 90 | ± 0.30 | ± 0.28 | ± 0.25 | |
| ≥ 90 ~ < 100 | ± 0.40 | ± 0.35 | ± 0.30 | |
| ≥100~<200 | ± 0,5%D | ± 0,4%D | protokol | |
| ≥ 200 | protokol | protokol | protokol | |
