GB / T 13296 Tabung Stainless Steel Seamless untuk Boiler / Penukar Panas
Properti Dasar
Tempat Asal:
Zhejiang China
Nama merek:
TORICH
Sertifikasi:
ISO 9001 ISO 14001 TS 16949
Nomor Model:
GB / T 13296
Properti Perdagangan
Jumlah Pesanan Minimum:
1 ton
Harga:
Dapat dinegosiasikan
Ketentuan Pembayaran:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Kemampuan Penyediaan:
20000 TON/tahun
Ringkasan Produk
Tabung stainless steel tanpa jahitan untuk boiler dan penukar panas GB/T 13296 Spesifikasi: Bahan:302 Jangkauan Ukuran:OD:6-159mm WT:1-14mm Panjang Umum:3-12m Toleransi: Menurut tabel berikut atau permintaan pelanggan. Penyimpangan yang diizinkan dari diameter luar dan ketebalan dinding Klasifikasi ...
Rincian produk
Menyoroti:
stainless steel putaran tabung
,stainless tube steel
Product Name:
Tabung Stainless Steel Seamless untuk Boiler dan Penukar Panas GB / T 13296
Material:
302
Surface:
Polishing
Application:
untuk Boiler dan Heat Exchanger
Shape:
Bulat
OD:
6-159mm
WT:
1-14mm
Length:
3-12 m
Deskripsi Produk
Tabung stainless steel tanpa jahitan untuk boiler dan penukar panas GB/T 13296
Spesifikasi:
Bahan:302
Jangkauan Ukuran:OD:6-159mm
WT:1-14mm
Panjang Umum:3-12m
Toleransi:
Menurut tabel berikut atau permintaan pelanggan.
Penyimpangan yang diizinkan dari diameter luar dan ketebalan dinding
| Klasifikasi | Ukuran nominal | Penyimpangan yang diizinkan | |
| W-H | OD | ≤ 140 | ± 1,25%D |
| > 140 | ± 1%D | ||
| S | ≤3 | -40%S | |
| >3 ~ 4 | -35%S | ||
| >4 ~ 5 | -33%S | ||
| > 5 | -28%S | ||
| WC | OD | 6 ~ 30 | +0.15 - 0.20 |
| > 30 ~ 50 | ± 0.30 | ||
| > 50 | ± 0,75%D | ||
| S | D≤38 | +20%S | |
| D> 38 | -22%S | ||
Kelas baja dan komposisi kimia
| Nomor | Besi kelas | Komposisi Kimia % | ||||||||
| C | Ya. | Mn | P | S | Tidak | Cr | Mo | Ti | ||
| 1 | 0Cr18Ni9 | ≤ 0.07 | ≤ 1.00 | ≤ 2.00 | ≤ 0.035 | ≤ 0.030 | 8.00 ~ 1.00 | 17.00 ~ 19.00 | ️ | ️ |
| 2 | 1Cr18Ni9 | ≤ 0.15 | ≤ 1.00 | ≤ 2.00 | ≤ 0.035 | ≤ 0.030 | 8.00 ~ 10.50 | 17.00 ~ 19.00 | ️ | ️ |
| 3 | 1Cr19Ni9 | 0.04 ~ 0.10 | ≤ 1.00 | ≤ 2.00 | ≤ 0.035 | ≤ 0.030 | 8.00 ~ 12.00 | 18.00 ~ 20.00 | ️ | ️ |
| 4 | 00Cr19Ni10 | ≤ 0.030 | ≤ 1.00 | ≤ 2.00 | ≤ 0.035 | ≤ 0.030 | 8.00 ~ 12.00 | 18.00 ~ 20.00 | ️ | ️ |
| 5 | 0Cr18Ni10Ti | ≤ 0.08 | ≤ 1.00 | ≤3.00 | ≤ 0.035 | ≤ 0.030 | 9.00 ~ 12.00 | 17.00 ~ 19.00 | ️ | ≥5C |
| 6 | 1Cr18Ni11Ti | 0.04 ~ 0.10 | ≤ 0.75 | ≤ 2.00 | ≤ 0.030 | ≤ 0.030 | 9.00 ~ 13.00 | 18.00 ~ 20.00 | ️ | 4Xc~ 0.60 |
| 7 | 0Cr18Ni11Nb | ≤ 0.08 | ≤ 1.00 | ≤ 2.00 | ≤ 0.035 | ≤ 0.030 | 9.00 ~ 13.00 | 17.00 ~ 20.00 | ️ | ️ |
| 8 | 1Cr19Ni11Nb | 0.04 ~ 0.10 | ≤ 1.00 | ≤ 2.00 | ≤ 0.035 | ≤ 0.030 | 9.00 ~ 13.00 | 17.00 ~ 20.00 | ️ | ️ |
| 9 | 0Cr17Ni12Mo2 | ≤ 0.08 | ≤ 1.00 | ≤ 2.00 | ≤ 0.035 | ≤ 0.030 | 11.00 ~ 14.00 | 18.00 ~ 20.00 | 2.00 ~ 3.00 | ️ |
| 10 | 1Cr17Ni12Mo2 | 0.04 ~ 0.10 | ≤ 0.75 | ≤ 2.00 | ≤ 0.030 | ≤ 0.030 | 11.0~ 14.00 | 16.00 ~ 20.00 | 2.00 ~ 3.00 | ️ |
Sistem pengolahan panas yang direkomendasikan dan sifat mekanik
| Nomor
| Kelas baja | Sistem pengolahan panas yang direkomendasikan | Sifat mekanik | |||
| Kekuatan tarik Rm MPa | Kekuatan tarik yang dibutuhkan dari plastik Rp0.2/ MPa | Perpanjangan A/ % | Kepadatan ρ/(kg/cm3) | |||
| Tidak kurang dari | ||||||
| 1 | 0Cr18Ni9 | 1010°C~1150°C | 520 | 205 | 35 | 7.93 |
| 2 | 1Cr18Ni9 | 1010°C~1150°C | 520 | 205 | 35 | 7.90 |
| 3 | 1Cr19Ni9 | 1010°C~1150°C | 520 | 205 | 35 | 7.93 |
| 4 | 00Cr19Ni10 | 1010°C~1150°C | 480 | 175 | 35 | 7.93 |
| 5 | 0Cr18Ni10Ti | 920°C ~ 1150°C | 520 | 205 | 35 | 7.95 |
| 6 | 1Cr18Ni11Ti | Digulung panas ≥1095°C Digulung dingin ≥1050°C | 520 | 205 | 35 | 7.93 |
| 7 | 0Cr18Ni11Nb | 980°C ~ 1150°C | 520 | 205 | 35 | 7.98 |
| 8 | 1Cr19Ni11Nb | Digulung panas ≥1095°C Digulung dingin ≥1050°C | 520 | 205 | 35 | 8.00 |
| 9 | 0Cr17Ni12Mo2 | 1010°C~1150°C | 520 | 205 | 35 | 7.98 |
| 10 | 1Cr17Ni12Mo2 | ≥1040°C | 520 | 205 | 35 | 7.89 |
Suhu tinggi memberikan kekuatan ekstensi yang tidak proporsional unit MPa N/mm²
| Besi kelas | Suhu°C | ||||||||||
| 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 | |
| 1Cr18Ni9 | 171 | 155 | 144 | 136 | 128 | 124 | 119 | 116 | 111 | 106 | ️ |
| 1Cr19Ni11Nb | 239 | 227 | 216 | 207 | 200 | 195 | 191 | 190 | 189 | 188 | ️ |
100 000 h Intensitas tahan yang direkomendasikan satuan data MPa N/mm²
| Besi kelas | 100 000 h Intensitas tahan lama | ||||||||||
| Suhu uji/°C | |||||||||||
| 600 | 610 | 620 | 630 | 640 | 650 | 660 | 670 | 680 | 690 | 700 | |
| 1Cr18Ni9 | 95 | 88 | 81 | 74 | 68 | 63 | 57 | 52 | 48 | 43 | 40 |
| 1Cr19Ni11Nb | 132 | 121 | 110 | 100 | 91 | 82 | 74 | 66 | 60 | 54 | 48 |
Pengolahan:W-H,W-C
Kondisi teknis pengiriman:Pengolahan panas dan pemanis
Digunakan secara luas di bidang:Boiler dan penukar panas

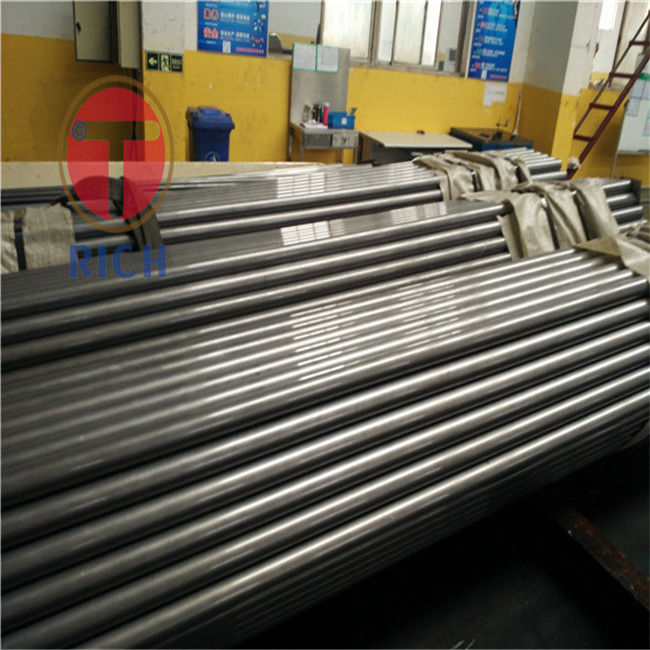

Gambar Produk:
