GB / T 13793 08 # 10 # Pipa Baja Galvanis Kustom OD 4mm - 1200mm
Properti Dasar
Tempat Asal:
Cina
Nama merek:
TORICH
Sertifikasi:
ISO 9001 ISO 14001 TS 16949
Nomor Model:
GB / T 13793
Properti Perdagangan
Jumlah Pesanan Minimum:
5 ton
Harga:
USD 400-800 / Ton
Ketentuan Pembayaran:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Kemampuan Penyediaan:
40000 Ton / Tahun
Ringkasan Produk
Pipa Baja dengan sambungan longitudinal (resistansi) GB / T 13793 Spesifikasi : Bahan: 08 # 10 # Q195 Q215 Q235 Q345 Kisaran Ukuran : OD: 4-1200mm WT: 0,3-200mm Panjang Umum: 4-12m Toleransi: Menurut tabel berikut atau permintaan pelanggan. Tabel 1 Toleransi Unit Diameter Luar : mm Diameter Luar (D) ...
Rincian produk
Menyoroti:
pengelasan pipa baja
,Listrik perlawanan dilas tabung baja
Product Name:
Pipa Baja dengan sambungan longitudinal (resistansi) GB / T 13793
Material:
08 # 10 # Q195 Q215 Q235 Q345
Surface:
Galvanis
Application:
Pipa
Shape:
Bulat
OD:
4-1200mm
WT:
0.3-200mm
Length:
4-12 m
Deskripsi Produk
Pipa Baja dengan sambungan longitudinal (resistansi) GB / T 13793
Spesifikasi :
Bahan: 08 # 10 # Q195 Q215 Q235 Q345
Kisaran Ukuran : OD: 4-1200mm
WT: 0,3-200mm
Panjang Umum: 4-12m
Toleransi:
Menurut tabel berikut atau permintaan pelanggan.
Spesifikasi :
Bahan: 08 # 10 # Q195 Q215 Q235 Q345
Kisaran Ukuran : OD: 4-1200mm
WT: 0,3-200mm
Panjang Umum: 4-12m
Toleransi:
Menurut tabel berikut atau permintaan pelanggan.
Tabel 1 Toleransi Unit Diameter Luar : mm
| Diameter Luar (D) | Tindakan Umum (PD) a | Presisi Tinggi (PD.B) | Presisi Tinggi (PD.C) |
| 5-20 | ± 0,30 | ± 0,15 | ± 0,05 |
| ﹥ 20-35 | ± 0,40 | ± 0,20 | ± 0,10 |
| ＞ 35-50 | ± 0,50 | ± 0,25 | ± 0,15 |
| ＞ 50-80 | ± 1% D | ± 0,35 | ± 0,25 |
| ＞ 80-114.3 | ± 0,60 | ± 0,40 | |
| ＞ 114.3-168.3 | ± 0,70 | ± 0,50 | |
| ＞ 168.3-219.1 | ± 0,80 | ± 0,60 | |
| ＞ 219.1-711 | ± 0,75% D | ± 0,5% D | |
| a Tidak berlaku untuk pipa baja untuk roller conveyor belt | |||
Tabel 2 Toleransi Satuan Ketebalan Dinding : mm
| Ketebalan dinding (t) | Tindakan Umum (PD) a | Presisi Tinggi (PD.B) | Presisi Tinggi (PD.C) | Ketebalan Dinding Tidak Seragam b |
| 0,50-0,70 | ± 0,10 | ± 0,04 | ± 0,03 | ≤7,5% t |
| ＞ 0.70-1.0 | ± 0,05 | ± 0,04 | ||
| ＞ 1.0-1.5 | ± 0,06 | ± 0,05 | ||
| ＞ 1.5-2.5 | ± 10% t | ± 0,12 | ± 0,06 | |
| ＞ 2.5-3.5 | ± 0,16 | ± 0,10 | ||
| ＞ 3.5-4.5 | ± 0,22 | ± 0,18 | ||
| ＞ 4.5-5.5 | ± 0,26 | ± 0,21 | ||
| ＞ 5.5 | ± 7,5% t | ± 5,0% t | ||
a Tidak berlaku untuk pipa baja untuk roller conveyor belt | ||||
Tabel 3 Pembengkokan tabung baja
| Diameter Luar (D) / mm | Membungkuk / (mm / m), Tidak lebih dari | ||
| General Precesion (PD.A) | Presisi Tinggi (PD.B) | Presisi Tinggi (PD.C) | |
| ＞ 16 | 1.5 | 1.0 | 0,5 |
Tabel 4 Sifat Mekanis
| Kualitas baja | Kekuatan luluh yang lebih rendah R e1. / MPa | Kekuatan tekanan | Pemanjangan | |
D ≤168.3mm | D ＞ 168.3mm | |||
| ≥ | ||||
| 08,10 | 195 | 315 | 22 | |
| 15 | 215 | 355 | 20 | |
| 20 | 235 | 390 | 19 | |
| Q195 b | 195 | 315 | 15 | 20 |
| Q215A, Q215B | 215 | 335 | ||
| Q235A, Q235B, Q235C | 235 | 370 | ||
| Q275A, Q275B, Q275C | 275 | 410 | 13 | 18 |
| Q345A, Q345B, Q345C | 345 | 470 | ||
| Q390A, Q390B, Q390C | 390 | 490 | 19 | |
| Q420A, Q420B, Q420C | 420 | 520 | 19 | |
| Q460C, Q460D | 460 | 550 | 17 | |
Memproses: ERW
Kondisi Pengiriman Teknis: Pengelasan atau perlakuan panas
Banyak digunakan di bidang : Aplikasi mekanik dan konstruksi

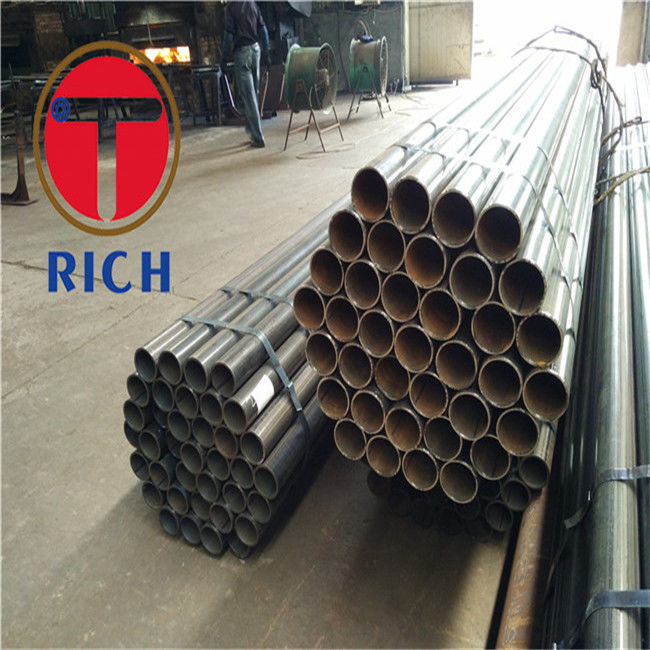

Gambar produk :
