Tabung Baja Dilas untuk Layanan Tambang Cair GB / T 14291 Q235A Q235B
Properti Dasar
Tempat Asal:
Cina
Nama merek:
TORICH
Sertifikasi:
ISO 9001 ISO 14001 TS 16949
Nomor Model:
GB / T 14291
Properti Perdagangan
Jumlah Pesanan Minimum:
5 ton
Harga:
USD 400-800 / Ton
Ketentuan Pembayaran:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Kemampuan Penyediaan:
40000 Ton / Tahun
Ringkasan Produk
Tabung baja las untuk layanan cair tambang GB/T 14291 Q235A Q235B Spesifikasi: Bahan:Q235A Q235B Q345A Q345B Jangkauan Ukuran:OD:4-1200mm WT:0.3-200mm Panjang Umum:4-12m Toleransi: Menurut tabel berikut atau permintaan pelanggan. Tabel 3 Diameter luar,Ketebalan dinding,Berat Teoritis dan Tekanan Uji ...
Rincian produk
Menyoroti:
pipa baja dilas
,pengelasan pipa baja
Product Name:
Tabung Baja Dilas untuk Layanan Tambang Cair GB / T 14291 Q235A Q235B
Material:
Q235A Q235B Q345A Q345B
Surface:
Galvanis
Application:
Pengiriman pulp, pengeringan gas, drainase tambang
Shape:
Bulat
OD:
4-1200mm
WT:
0.3-200mm
Length:
4-12 m
Deskripsi Produk
Tabung baja las untuk layanan cair tambang GB/T 14291 Q235A Q235B
Spesifikasi:
Bahan:Q235A Q235B Q345A Q345B
Jangkauan Ukuran:OD:4-1200mm
WT:0.3-200mm
Panjang Umum:4-12m
Toleransi:
Menurut tabel berikut atau permintaan pelanggan.
Tabel 3 Diameter luar,Ketebalan dinding,Berat Teoritis dan Tekanan Uji
| Diameter luar normal ((D) /mm | Ketebalan dinding normal ((S) /mm | Berat Teoritis (kg/m) | Tekanan uji/MPa | ||
| Q235A,Q235B | Q295A,Q295B | Q345A,Q345B | |||
| 21.3 | 2.5 | 1.16 | 15 | 15 | 15 |
| 21.3 | 3 | 1.35 | 15 | 15 | 15 |
| 21.3 | 3.5 | 1.54 | 15 | 15 | 15 |
| 25 | 2.5 | 1.39 | 15 | 15 | 15 |
| 25 | 3 | 1.63 | 15 | 15 | 15 |
| 25 | 3.5 | 1.86 | 15 | 15 | 15 |
| 25 | 4 | 2.07 | 15 | 15 | 15 |
| 26.9 | 2.5 | 1.50 | 15 | 15 | 15 |
| 26.9 | 3 | 1.77 | 15 | 15 | 15 |
| 26.9 | 3.5 | 2.02 | 15 | 15 | 15 |
| 26.9 | 4 | 2.26 | 15 | 15 | 15 |
| 31.8 | 2.5 | 1.81 | 15 | 15 | 15 |
| 31.8 | 3 | 2.13 | 15 | 15 | 15 |
| 31.8 | 3.5 | 2.44 | 15 | 15 | 15 |
| 31.8 | 4 | 2.74 | 15 | 15 | 15 |
| 33.7 | 2.5 | 1.92 | 15 | 15 | 15 |
| 33.7 | 3 | 2.27 | 15 | 15 | 15 |
| 33.7 | 3.5 | 2.61 | 15 | 15 | 15 |
| 33.7 | 4 | 2.93 | 15 | 15 | 15 |
| 38 | 2.5 | 2.19 | 15 | 15 | 15 |
| 38 | 3 | 2.59 | 15 | 15 | 15 |
| 38 | 3.5 | 2.98 | 15 | 15 | 15 |
| 38 | 4 | 3.35 | 15 | 15 | 15 |
| 40 | 2.5 | 2.31 | 15 | 15 | 15 |
| 40 | 3 | 2.74 | 15 | 15 | 15 |
| 40 | 3.5 | 3.15 | 15 | 15 | 15 |
| 40 | 4 | 3.55 | 15 | 15 | 15 |
| 42.4 | 2.5 | 2.46 | 15 | 15 | 15 |
| 42.4 | 3 | 2.91 | 15 | 15 | 15 |
| 42.4 | 3.5 | 3.36 | 15 | 15 | 15 |
| 42.4 | 4 | 3.79 | 15 | 15 | 15 |
| 48.3 | 2.5 | 2.82 | 14.6 | 15 | 15 |
| 48.3 | 3 | 3.35 | 15 | 15 | 15 |
| 48.3 | 3.5 | 3.87 | 15 | 15 | 15 |
| 48.3 | 4 | 4.37 | 15 | 15 | 15 |
| 51 | 2.5 | 2.99 | 13.8 | 15 | 15 |
Pengolahan:
Kondisi teknis pengiriman:Pengelasan atau pengolahan panas
Banyak digunakan di bidang:

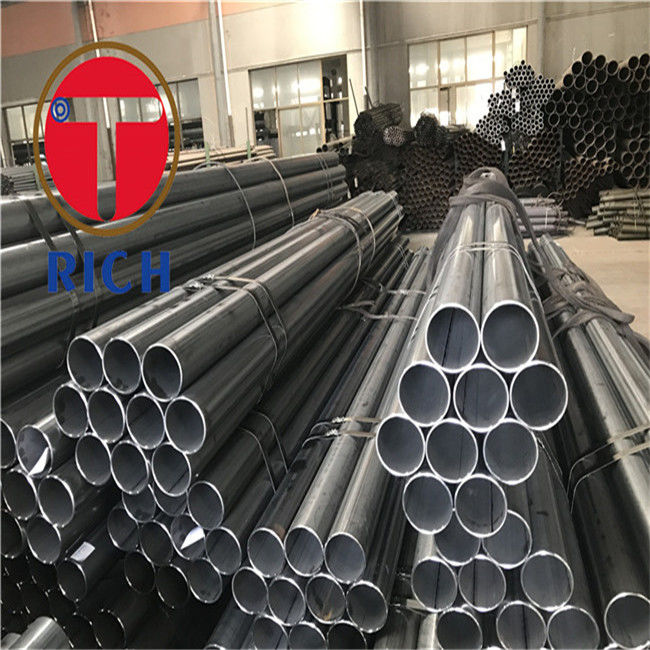

Gambar Produk:
