Pipa Stainless Steel Seamless Kustom Untuk Transportasi Cairan GB / T 14976
Properti Dasar
Tempat Asal:
Cina
Nama merek:
TORICH
Sertifikasi:
ISO 9001 ISO 14001 TS 16949
Nomor Model:
GB / T 14976
Properti Perdagangan
Jumlah Pesanan Minimum:
1 TON
Harga:
Dapat dinegosiasikan
Ketentuan Pembayaran:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Kemampuan Penyediaan:
40000 Ton / Tahun
Ringkasan Produk
Pipa stainless steel tanpa jahitan untuk transportasi cairan GB/T 14976 Spesifikasi: Bahan: Jangkauan Ukuran:OD:4-1200mm WT:0.3-200mm Panjang Umum:1- 12m Toleransi: Menurut tabel berikut atau permintaan pelanggan. Tabel 1 Toleransi Diameter Luar dan Ketebalan Tembok Unit:mm Penggulung panas ...
Rincian produk
Menyoroti:
stainless steel putaran tabung
,stainless tube steel
Product Name:
Pipa Stainless Steel Seamless untuk Transportasi Cairan GB / T 14976
Material:
302.304.304L / N, 316L / N
Surface:
Polishing
Application:
302.304.304L / N, 316L / N
Shape:
Bulat
OD:
4-1200mm
WT:
0.3-200mm
Length:
1-12m
Deskripsi Produk
Pipa stainless steel tanpa jahitan untuk transportasi cairan GB/T 14976
Spesifikasi:
Bahan:
Jangkauan Ukuran:OD:4-1200mm
WT:0.3-200mm
Panjang Umum:1- 12m
Toleransi:
Menurut tabel berikut atau permintaan pelanggan.
Tabel 1 Toleransi Diameter Luar dan Ketebalan Tembok Unit:mm
| Penggulung panas (ekstrusi, ekspansi) tabung baja | Tabung baja yang ditarik dingin (rolling) | ||||||
| Dimensi | Toleransi | Dimensi | Toleransi | ||||
| PA Kelas Biasa | PC Tingkat Tinggi | PA Kelas Biasa | PC Tingkat Tinggi | ||||
| Diameter luar nominal D | 68 ~ 159 | ± 1,25%D | ± 1%D | Diameter luar nominal D | 6 ~ 10 | ± 0.20 | ± 0.15 |
| > 10 ~ 30 | ± 0.30 | ± 0.20 | |||||
| > 30 ~ 50 | ± 0.40 | ± 0.30 | |||||
| > 50 ~ 219 | ± 0,85%D | ± 0,75%D | |||||
| >159 | ±1,5%D | >219 | ± 0,9%D | ± 0,8%D | |||
| Ketebalan dinding nominal S | < 15 | +15%S - 12,5% | ± 12,5%S | Ketebalan dinding nominal S | ≤3 | ±12%S | ± 10%S |
| ≥ 15 | +20%S -15%S | >3 | + 12,5%S -10%S | ± 10%S | |||
Tabel2 Toleransi dari Unit Ketebalan Tembok Minimal:mm
| Metode Produksi | Dimensi | Toleransi | |
| PA Kelas Biasa | PC Tingkat Tinggi | ||
| Penggulung panas (ekstrusi, ekspansi) tabung baja W-H | Smenit< 15 | +25%Smenit 0 | + 22,5%Smenit 0 |
| Smenit≥ 15 | +32,5%Smenit 0 | ||
| Tabung baja yang ditarik dingin (rolling) WC | Semua Kekakuan Dinding | +22%Smenit 0 | +20%Smenit 0 |
Tabel 3 Kelas dan komponen kimia
| Tidak, tidak. | GB/T 20878 | Kelas | Komponen Kimia (Fraksi Kualitas) /% | |||||||||||
| Tidak, tidak. | Unified Digital Code (Kode Digital Bersatu) | C | Ya. | Mn | P | S | Tidak | Cr | Mo | Cu | N | lainnya | ||
| 1 | 13 | S30210 | 12Cr18Ni9 | 0.15 | 1.00 | 2.00 | 0.035 | 0.030 | 8.00 ~ 10.00 | 17.00~19.00 | - | - | 0.10 | - |
| 2 | 17 | S30408 | 06Cr19Ni10 | 0.08 | 1.00 | 2.00 | 0.035 | 0.030 | 8.00 ~ 11.00 | 18.00 ~ 20.00 | - | - | - | - |
| 3 | 18 | S30403 | 022Cr19Ni10 | 0.030 | 1.00 | 2.00 | 0.035 | 0.030 | 8.00 ~ 12.00 | 18.00 ~ 20.00 | - | - | - | - |
| 4 | 23 | S30458 | 06Cr19Ni10N | 0.08 | 1.00 | 2.00 | 0.035 | 0.030 | 8.00 ~ 11.00 | 18.00 ~ 20.00 | - | - | 0.10 ~ 0.16 | - |
| 5 | 24 | S30478 | 06Cr19Ni9NbN | 0.030 | 1.00 | 2.50 | 0.035 | 0.030 | 7.50 ~ 10.50 | 18.00 ~ 20.00 | - | - | 0.15 ~ 0.30 | Perhatikan:0.15 |
| 6 | 25 | S30453 | 022Cr19Ni10N | 0.08 | 1.00 | 2.00 | 0.035 | 0.030 | 8.00 ~ 11.00 | 18.00 ~ 20.00 | - | - | 0.10 ~ 0.16 | - |
| 7 | 32 | S30908 | 06Cr23Ni13 | 0.030 | 1.00 | 2.00 | 0.035 | 0.030 | 12.00 ~ 15.00 | 22.00 ~ 24.00 | - | - | - | - |
| 8 | 35 | S31008 | 06Cr25Ni20 | 0.08 | 1.50 | 2.00 | 0.035 | 0.030 | 19.00 ~ 22.00 | 24.0 ~ 26.00 | - | - | - | - |
| 9 | 38 | S31608 | 06Cr17Ni12Mo2 | 0.08 | 1.00 | 2.00 | 0.035 | 0.030 | 10.00 ~ 14.00 | 16.00 ~ 18.00 | 2.00 ~ 3.00 | - | - | - |
| 10 | 39 | S31603 | 022Cr17Ni12Mo2 | 0.030 | 1.00 | 2.00 | 0.035 | 0.030 | 10.00 ~ 14.00 | 16.00 ~ 18.00 | 2.00 ~ 3.00 | - | - | - |
| 11 | 40 | S31609 | 07Cr17Ni12Mo2 | 0.04 ~ 0.10 | 1.00 | 2.00 | 0.035 | 0.030 | 10.00 ~ 14.00 | 16.00 ~ 18.00 | 2.00 ~ 3.00 | - | - | - |
| 12 | 41 | S31668 | 06Cr17Ni12Mo2Ti | 0.08 | 1.00 | 2.00 | 0.035 | 0.030 | 10.00 ~ 14.00 | 16.00 ~ 18.00 | 2.00 ~ 3.00 | - | - | Ti:5C~0.70 |
Tabel 4 Sistem Pengolahan Panas yang Direkomendasikan,Sifat Mekanis dan Densitas Tabung Baja
| Jenis organisasi | Tidak, tidak. | GB/T 20878 | Kelas | Sistem pengolahan panas yang direkomendasikan | Sifat Mekanis | Kepadatan ρ/(kg/dm2) | |||
| Tidak, tidak. | Kode digital tunggal | Kekuatan tarik Rm/MPa | Kekuatan elongasi plastik yang ditentukan Rp0.2/MPa | Persentase elongasi setelah patah tulang A/% | |||||
| Tidak kurang dari | |||||||||
| Austenit | 1 | 13 | S30210 | 12Cr18Ni9 | 1010°C~1150°C,dingin atau lainnya | 520 | 205 | 35 | 7.93 |
| 2 | 17 | S30408 | 06Cr19Ni10 | 1010°C~1150°C,dingin atau lainnya | 520 | 205 | 35 | 7.93 | |
| 3 | 18 | S30403 | 022Cr19Ni10 | 1010°C~1150°C,dingin atau lainnya | 480 | 175 | 35 | 7.90 | |
| 4 | 23 | S30458 | 06Cr19Ni10N | 1010°C~1150°C,dingin atau lainnya | 550 | 275 | 35 | 7.93 | |
| 5 | 24 | S30478 | 06Cr19Ni9NbN | 1010°C~1150°C,dingin atau lainnya | 685 | 345 | 35 | 7.98 | |
| 6 | 25 | S30453 | 022Cr19Ni10N | 1010°C~1150°C,dingin atau lainnya | 550 | 245 | 40 | 7.93 | |
| 7 | 32 | S30908 | 06Cr23Ni13 | 1010°C~1150°C,dingin atau lainnya | 520 | 205 | 40 | 7.98 | |
| 8 | 35 | S31008 | 06Cr25Ni20 | 1010°C~1150°C,dingin atau lainnya | 520 | 205 | 40 | 7.98 | |
| 9 | 38 | S31608 | 06Cr17Ni12Mo2 | 1010°C~1150°C,dingin atau lainnya | 520 | 205 | 35 | 8.00 | |
| 10 | 39 | S31603 | 022Cr17Ni12Mo2 | 1010°C~1150°C,dingin atau lainnya | 480 | 175 | 35 | 8.00 | |
| 11 | 40 | S31609 | 07Cr17Ni12Mo2 | ≥1040°C,dingin atau lainnya | 515 | 205 | 35 | 7.98 | |
| 12 | 41 | S31668 | 06Cr17Ni12Mo2Ti | 1000°C~1100°C,dingin atau lainnya | 530 | 205 | 35 | 7.90 | |
Tabel 5 Item Pemeriksaan tabung baja, Metode pengujian dan Jumlah pengambilan sampel
| Tidak, tidak. | Item Pemeriksaan | Jumlah Sampel | Metode pengambilan sampel | Metode pengujian |
| 1 | Komponen kimia | Ambil sampel dari setiap furance | GB/T 20066 | Peraturan Menteri Keuangan Nomor: (a) |
| 2 | Uji ketegangan | Ambil sampel antara dua tabung baja dari setiap batch | GB/T 2975 | GB/T 228.1 |
| 3 | Tes perataan | Ambil sampel antara dua tabung baja dari setiap batch | GB/T 246 | GB/T 246 |
| 4 | Uji pembakaran | Ambil sampel antara dua tabung baja dari setiap batch | GB/T 242 | GB/T 242 |
| 5 | Uji hidraulik | Setiap bagian | - | GB/T 241 |
| 6 | Uji Ultrasonik | Setiap bagian | - | GB/T 5777-2008 |
| 7 | Tes Eddy | Setiap bagian | - | GB/T 7735-2004 |
| 8 | Uji korosi interkristalin | Ambil sampel antara dua tabung baja dari setiap batch | GB/T 4334-2008 | GB/T 4334-2008 |
Tabel A.1 Perbandingan Kelas Baja Tidak Berlemak
| Tidak, tidak. | GB/T 20878-2007 | ASTM A 959-09 | JIS G4303-2005 JIS G 4311-1991 | ISO/TS 15510:2003 ISO 4955:2005 | EN 10088:1-2005 | PTN 5632-1972 | |
| Unified Digital Code (Kode Digital Bersatu) | Kelas | ||||||
| 1 | S30210 | 12Cr18Ni9 | S30200,302 | SUS302 | X10CrNi18-8 | X10CrNi18-8,1.4310 | 12X18H9 |
| 2 | S30408 | 06Cr19Ni10 | S30400,304 | SUS304 | X5CrNi18-9 | X5CrNi18-10,1.4301 | - |
| 3 | S30403 | 022Cr19Ni10 | S30403,304L | SUS304L | X2CrNi19-11 | X2CrNi19-11,1.4306 | 03X18H11 |
| 4 | S30458 | 06Cr19Ni10N | S30451,304N | SUS304N1 | X5CrNiN18-8 | X5CrNiN19-9,1.4315 | - |
| 5 | S30478 | 06Cr19Ni9NbN | S30452,XM-21 | SUS304N2 | - | - | - |
| 6 | S30453 | 022Cr19Ni10N | S30453,304LN | SUS304LN | X2CrNiN18-9 | X2CrNiN18-10,1.4311 | - |
| 7 | S30908 | 06Cr23Ni13 | S30908,309S | SUS309S | X12CrNi23-13 | X12CrNi23-13,1.4833 | - |
| 8 | S31008 | 06Cr25Ni20 | S31008,310S | SUS310S | X8CrNi25-21 | X8CrNi25-21,1.4845 | 10X23H18 |
| 9 | S31608 | 06Cr17Ni12Mo2 | S31600,316 | SUS316 | X5CrNiMo17-12-2 | X5CrNiMo17-12-2,1.4401 | - |
| 10 | S31603 | 022Cr17Ni12Mo2 | S31603,316L | SUS316L | X2CrNiMo17-12-2 | X2CrNiMo17-12-2,1.4404 | 03X17H14M3 |
| 11 | S31609 | 07Cr17Ni12Mo2 | S31609,316H | - | - | X3CrNiMo17-13-3,1.4436 | - |
| 12 | S31668 | 06Cr17Ni12Mo2Ti | S31635,316Ti | SUS316Ti | X6CrNiMoTi17-12-2 | X6CrNiMoTi17-12-2,1.4571 | 08X17H13M2T |
Pengolahan:W-H,W-C
Kondisi teknis pengiriman:Pengolahan panas dan pemurnian atau perawatan panas atmosfer pelindung
Banyak digunakan di bidang:Pengangkutan cairan

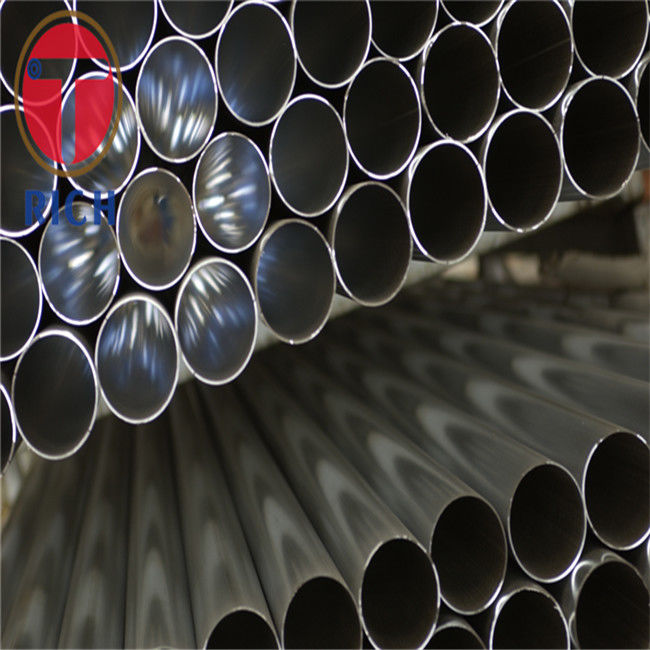

Gambar Produk:
