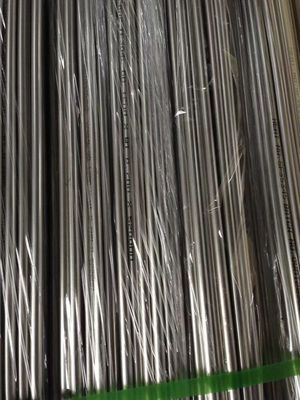

Stainless Steel Dingin digulung Tabung Seamless 304 / 316GB / T 14975, ASTM A269 / A269M
Properti Dasar
Tempat Asal:
Cina
Nama merek:
Torich
Sertifikasi:
TS16949 ISO9001 ISO14001
Nomor Model:
A269
Properti Perdagangan
Jumlah Pesanan Minimum:
0.5tons
Harga:
Dapat dinegosiasikan
Ketentuan Pembayaran:
L/C, T/T
Kemampuan Penyediaan:
50000tons per tahun
Ringkasan Produk
Tabung stainless steel tanpa jahitan yang digulung dingin 304 / 316 Standar: GB/T 14975, ASTM A269 / A269M, ASTM A511 / A511 M Bahan: S30408 S30403 304 304L TP304 TP304L 316 316L TP316 TP316L12Cr18Ni9, 06Cr19Ni10,022Cr19Ni10, 06Cr19Ni10N, 06Cr19Ni9NbN,022Cr19Ni10N, 06Cr23Ni13, 06Cr25Ni20, 015Cr20Ni1...
Rincian produk
Menyoroti:
stainless steel putaran tabung
,stainless tube steel
Matrial:
304 316 304 L 316L dll
Production Method:
Digulung dingin
OD:
3-323.9
Length:
maksimal 12m
End:
Polos
Standard:
GB/T 14975, ASTM A269 / A269M, ASTM A511 / A511 M
Deskripsi Produk
Tabung stainless steel tanpa jahitan yang digulung dingin 304 / 316
Standar: GB/T 14975, ASTM A269 / A269M, ASTM A511 / A511 M
Bahan: S30408 S30403 304 304L TP304 TP304L 316 316L TP316 TP316L12Cr18Ni9, 06Cr19Ni10,022Cr19Ni10, 06Cr19Ni10N, 06Cr19Ni9NbN,022Cr19Ni10N, 06Cr23Ni13, 06Cr25Ni20, 015Cr20Ni18Mo6CuN, 06Cr17Ni12Mo2, 022Cr17Ni12Mo2
Tabung stainless steel tanpa jahitan yang digulung dingin 304 / 316
Toleransi Nominal Diameter Luar dan Ketebalan Dinding Satuan: mm
| Tabung baja yang ditarik dingin (roll) | |||
| Dimensi | Toleransi | ||
| PA tingkat biasa | PC Tingkat Tinggi | ||
| Diameter luar nominal D | < 12.7 | ± 0.30 | ± 0.10 |
| 12.7~<38.1 | ± 0.30 | ± 0.15 | |
| 38.1~<88.9 | ± 0.40 | ± 0.30 | |
| 88.9~<139.7 | ± 0,9%D | ± 0.40 | |
| 139.7~<203.2 | ± 0.80 | ||
| 203.2~<219.1 | ± 1.10 | ||
| 219.1~<323.9 | ± 1.60 | ||
| ≥ 323.9 | ± 0,5%D | ||
| Ketebalan dinding nominal S | Semua Ketebalan Dinding | + 12,5%S -10%S | ± 10%S |
Toleransi ketebalan dinding minimumSatuan: mm
| Metode Produksi | Dimensi | Toleransi | |
| PA tingkat biasa | PC Tingkat Tinggi | ||
| Hot Roll (Extrusion, Expansion) tabung baja W-H | Smin<15 | +27,5% Smin 0 | +25% Smin 0
|
| Smin≥15 | +35% Smin 0 | ||
| Tabung baja yang ditarik dingin (roll) WC | Semua Ketebalan Dinding | +22% S 0 | +20% S 0 |
Kelas dan komponen kimia
| Tidak, tidak. | Unified Digital Code (Kode Digital Bersatu) | Kelas | Komponen Kimia (Fraksi Kualitas) /% | |||||||||
| C | Ya. | Mn | P | S | Tidak | Cr | Mo | Cu | N | |||
| 1 | S30210 | 12Cr18Ni9 | 0.15 | 1.00 | 2.00 | 0.040 | 0.030 | 8.00 ~ 10.00 | 17.00~19.00 | - | - | 0.10 |
| 2 | S30408 | 06Cr19Ni10 | 0.08 | 1.00 | 2.00 | 0.040 | 0.030 | 8.00 ~ 11.00 | 18.00 ~ 20.00 | - | - | - |
| 3 | S30403 | 022Cr19Ni10 | 0.030 | 1.00 | 2.00 | 0.040 | 0.030 | 8.00 ~ 12.00 | 18.00 ~ 20.00 | - | - | - |
| 4 | S30458 | 06Cr19Ni10N | 0.08 | 1.00 | 2.00 | 0.040 | 0.030 | 8.00 ~ 11.00 | 18.00 ~ 20.00 | - | - | 0.10 ~ 0.16 |
| 5 | S30478 | 06Cr19Ni9NbN | 0.08 | 1.00 | 2.50 | 0.040 | 0.030 | 7.50 ~ 10.50 | 18.00 ~ 20.00 | - | - | 0.15 ~ 0.30 |
| 6 | S30453 | 022Cr19Ni10N | 0.030 | 1.00 | 2.00 | 0.040 | 0.030 | 8.00 ~ 11.00 | 18.00 ~ 20.00 | - | - | 0.10 ~ 0.16 |
| 7 | S30908 | 06Cr23Ni13 | 0.08 | 1.00 | 2.00 | 0.040 | 0.030 | 12.00 ~ 15.00 | 22.00 ~ 24.00 | - | - | - |
| 8 | S31008 | 06Cr25Ni20 | 0.08 | 1.50 | 2.00 | 0.040 | 0.030 | 19.00 ~ 22.00 | 24.00~26.00 | - | - | - |
| 9 | S31252 | 015Cr20Ni18Mo6CuN | 0.02 | 0.80 | 1.00 | 0.030 | 0.010 | 17.50 ~ 18.50 | 19.50 ~ 20.50 | 6.00 ~ 6.50 | 0.50 ~ 1.00 | 0.18 ~ 0.22 |
| 10 | S31608 | 06Cr17Ni12Mo2 | 0.08 | 1.00 | 2.00 | 0.040 | 0.030 | 10.00 ~ 14.00 | 16.00 ~ 18.00 | 2.00 ~ 3.00 | - | - |
| 11 | S31603 | 022Cr17Ni12Mo2 | 0.030 | 1.00 | 2.00 | 0.040 | 0.030 | 10.00 ~ 14.00 | 16.00 ~ 18.00 | 2.00 ~ 3.00 | - | - |
Kejujuran:
Panjang tabung baja tidak boleh lebih dari 0,15% dari total panjang tabung baja dan tidak lebih dari 12 mm.
Tingkat lentur pipa baja per meter tidak boleh lebih dari berikut:
WT ≤ 15 mm, 1,5 mm / m
WT > 15mm, 2,0mm / m
Pipa ekspansi termal, 3,0 mm / m
