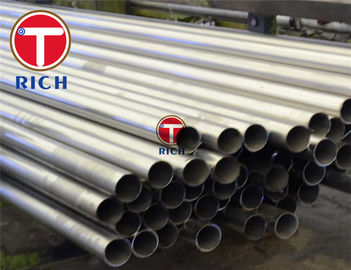

Tabung Stainless Steel Dilas Tabung U Bend 008Cr29Mo4 GB / T 30065
Properti Dasar
Tempat Asal:
Cina
Nama merek:
TORICH
Sertifikasi:
ISO 9001 ISO14001 TS16949
Nomor Model:
GB / T 30065
Properti Perdagangan
Jumlah Pesanan Minimum:
1 ton
Harga:
Dapat dinegosiasikan
Ketentuan Pembayaran:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Kemampuan Penyediaan:
60000 Ton per Tahun
Ringkasan Produk
Deskripsi produk: Tabung baja tahan karat las U Bend Tube 008Cr29Mo4 GB/T 30065 Kelas baja/bahan baja: Kelas baja Komposisi Kimia, % C Mn P S Ya. Tidak Cr Mo Cu N 019Cr25Mo4NiNbTi ≤ 0.025 ≤ 1.00 ≤ 0.030 ≤ 0.020 ≤ 0.75 3.50-4.50 24.50-26.00 3.50-4.50 - ≤ 0.030 022Cr27Mo4Ni2NbTi ≤ 0.030 ≤ 1.00 ≤ 0.030 ...
Rincian produk
Menyoroti:
stainless tube steel
,diameter besar tabung baja stainless
Characteristic:
Dilas Feritik Stainless U Bend Tabung
Material:
019Cr25Mo4Ni4NbTi, 008Cr29Mo4 dll
Production Method:
uto-welding dari Cold Rolled Steel Strip
Package:
Dalam bundel atau sesuai permintaan
End Protector:
Polos
Length:
Sesuai dengan kebutuhan pelanggan
Type:
Tabung stainless
MTC:
EN10204.3.1
Deskripsi Produk
Deskripsi produk:
Tabung baja tahan karat las U Bend Tube 008Cr29Mo4 GB/T 30065
Kelas baja/bahan baja:
| Kelas baja | Komposisi Kimia, % | |||||||||
| C | Mn | P | S | Ya. | Tidak | Cr | Mo | Cu | N | |
| 019Cr25Mo4NiNbTi | ≤ 0.025 | ≤ 1.00 | ≤ 0.030 | ≤ 0.020 | ≤ 0.75 | 3.50-4.50 | 24.50-26.00 | 3.50-4.50 | - | ≤ 0.030 |
| 022Cr27Mo4Ni2NbTi | ≤ 0.030 | ≤ 1.00 | ≤ 0.030 | ≤ 0.020 | ≤ 1.00 | 1.00-3.50 | 25.00-28.00 | 3.00-4.00 | - | ≤ 0.030 |
| 008Cr29Mo4 | ≤ 0.010 | ≤ 0.30 | ≤ 0.025 | ≤ 0.020 | ≤ 0.20 | ≤ 0.15 | 28.00-30.00 | 3.50-4.20 | ≤ 0.15 | ≤ 0.020 |
| 008Cr29Mo4Ni2 | ≤ 0.010 | ≤ 0.30 | ≤ 0.025 | ≤ 0.020 | ≤ 0.20 | 2.00-2.50 | 28.00-30.00 | 3.50-4.20 | ≤ 0.15 | ≤ 0.020 |
| 022Cr29Mo4NbTi | ≤ 0.030 | ≤ 1.00 | ≤ 0.030 | ≤ 0.020 | ≤ 1.00 | ≤ 1.00 | 28.00-30.00 | 3.60-4.20 | - | ≤ 0.030 |
Sifat Mekanis:
| Kelas baja | Kekuatan tarik Rm MPa | Kekuatan Pembuatan Rp0.2 MPa | Perpanjangan A50 mm % |
| ≥ | |||
| 019Cr25Mo4NiNbTi | 620 | 515 | 20 |
| 022Cr27Mo4Ni2NbTi | 585 | 450 | 20 |
| 008Cr29Mo4 | 550 | 415 | 20 |
| 008Cr29Mo4Ni2 | 550 | 415 | 20 |
| 022Cr29Mo4NbTi | 515 | 415 | 18 |
Kondisi pengiriman:
Dipanaskan dan Digoreng
Jangkauan ukuran:
OD: 12-32mm
WT: 0,5-2,5mm
Panjang: sesuai kebutuhan pelanggan
Ukuran biasa kami: 12.7x0.889mm, 19.05x1.65mm, 19.05x2.11mm dll
Karakteristik pipa berlapis:
Kekuatan tinggi

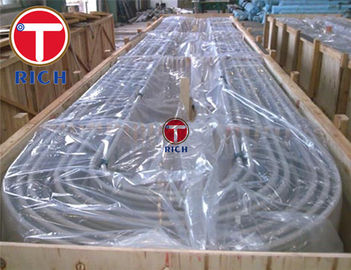

Bisa membungkuk menjadi tabung U
Tahan korosi
Kualitas stabil
Kerontokan yang halus
TORICH Jaminan Kualitas
Proses Produksi:
Pengelasan otomatis dari strip baja yang digulung dingin + Pengolahan panas dari annealed dan pickled
Bending dengan Cold Bending
Bahan baku baja:
Garis produksi:
Uji arus eddy dan uji ultrasonik:
Inspeksi kualitas di laboratorium:
