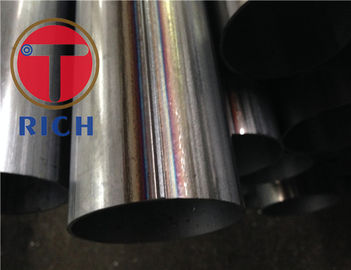

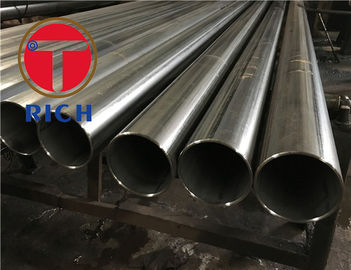

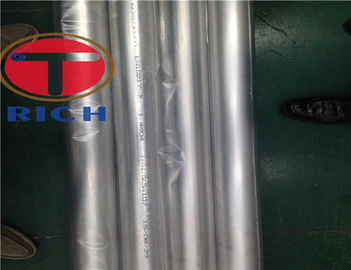

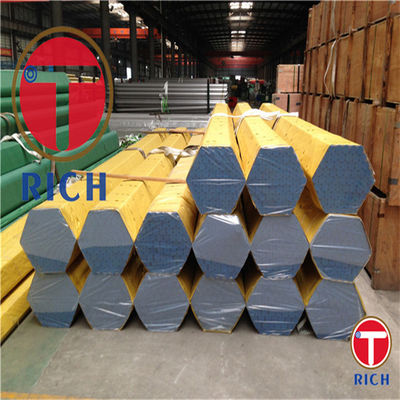

Tabung Stainless Steel Presisi Feritik / Martenstik Untuk Penukar Panas
Rincian produk
Presisi pipa baja
,precision pipes and tubes
ASTM A268 Tabung stainless steel ferritic dan martenstic tanpa jahitan dan las untuk layanan umum
Merek:Sejarah
Standar:ASTM A268
OD:12.7-203mm
W.T. Normal:5.1mm
Aplikasi: Untuk boiler dan penukar panas
Toleransi Ukuran
Ukuran kelompok, O.D in ((mm) Varian O.D yang diizinkan (mm)
1 sampai 1/2 ((12.7), kecuali +/- 0,005 ((0,13)
1/2 sampai 1,1/2 ((12,7 sampai 38,1), kecuali +/- 0,005 ((0,13)
2 1,1/2 sampai 3,1/2 (38,1 sampai 88,9) excl +/- 0,01 (0,25)
3 3,1/2 sampai 5,1/2 ((88.9 sampai 139.7) excl +/- 0.015 ((0.38)
4 5,1/2 sampai 8 (139,7 sampai 203,2) inkl +/- 0,03 ((0,76)
Percobaan Mekanis Dibutuhkan
Tes Ketegangan
Tes pembakaran (untuk tabung tanpa jahitan)
Uji flange (untuk tabung las)
Tes Kekerasan
Uji perataan terbalik
Uji listrik hidrostatik atau tidak merusak
Persyaratan Tambahan
Uji tekanan udara di bawah air
Pengujian tambahan tabung las sesuai dengan Permintaan ASME.
-
