Astm A269 Tabung Stainless Steel Kapiler Untuk Industri Alat Listrik
Rincian produk
stainless steel putaran tabung
,stainless tube steel

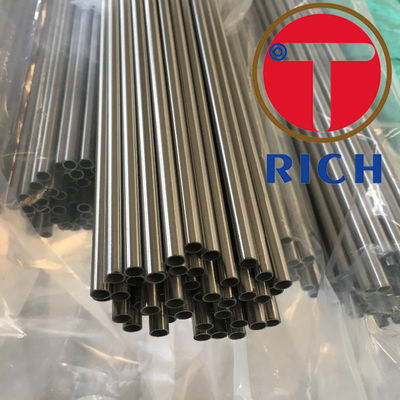

ASTM A269 Kapiler Stainless Steel Coil Tube
Jangkauan ukuran:
diameter luar:2.5-6mm
Ketebalan dinding: 0,2-1,5 mm
Ukuran Koil: 500-1500mm
Panjangnya bisa tetap dan panjang gulungan hingga 5000m
Contoh sifat fisik pipa baja di bawah kondisi Bright Annealing:
Persentase perpanjangan: > 55%
Kekerasan permukaan: < 170HV
Kekuatan tarik:> 550N/MM2
Kekuatan output:> 195N/NM2
Tabel spesifikasi tabung kumparan
| O.D. mm
W.T mm | 3.0-4.0 | 4.01-6.00 | 6.01-8.00 | 8.01-10.0 | 10.01-12.7 | 12.71-19.05 | 19.05-25.4 |
| 0.30-0.40 | √ | √ | √ | ||||
| 0.41-0.50 | √ | √ | √ | √ | |||
| 0.51-0.60 | √ | √ | √ | √ | √ | ||
| 0.61-0.70 | √ | √ | √ | √ | √ | √ | |
| 0.71-1.00 | √ | √ | √ | √ | √ | √ | √ |
| 1.01-1.20 | √ | √ | √ | √ | √ | √ | |
| 1.21-1.50 | √ | √ | √ | √ | |||
| 1.51-2.0 | √ | √ | √ |
Standar: ASTM A269/A249
Aplikasi:
1Instrumen
2. Minyak lepas pantai
3.Petrokimia
4Industri peralatan listrik
Keuntungan kami:
1.Kita bisa membuatnya lebih lama.
2Tidak peduli berapa panjang setiap tabung kumparan, tidak akan ada kebocoran
3.100% inspeksi, tahan tekanan dan lebih andal
4. Bersih internal dan eksternal, mencapai kelas makanan ((Pelanggan harus memberikan pemberitahuan sebelumnya)
5. Spesifikasi lengkap, produk dari beberapa spesifikasi dalam stok
6. lulus tes FDA
-
