Astm A312 Pipa Stainless Steel Dipoles Seamless Sangat Dingin Bekerja
Rincian produk
stainless steel putaran tabung
,diameter besar tabung baja stainless

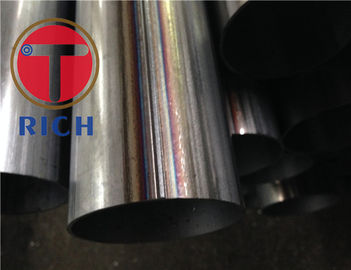

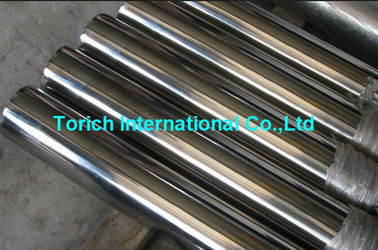

TORICH ASTM A312 pipa stainless steel austenit tanpa jahitan
TORICH ASTMA312 pipa baja tahan karat austenit tanpa jahitan
Standar:Bahan baku yang dapat digunakan untuk pembuatan produk ini adalah:ASTM A1016/A1016M, E112, E381, ANSI B1.20.1, B36.10, B36.19, AWS A5.9, SAE J1086
Bahan:TP304H, TP304H, TP309HCb, TP310H, TP310HCb, TP316H, TP347H, TP348H
OD: 10.29-762.0mm
WT:1.24-12.7mm
Penggunaan: Standar ini mencakup pipa stainless steel austenit tanpa jahitan untuk suhu tinggi dan layanan korosif umum.
Catatan: Kelas baja khusus juga tersedia, sesuai permintaan pelanggan.
Persyaratan Kimia
| TP304H | TP309H | TP309HCb | TP310H | TP310HCb | TP316H | TP347H | TP348H | |
| C | 0.04-0.10 | 0.04-0.10 | 0.04-0.10 | 0.04-0.10 | 0.04-0.10 | 0.04-0.10 | 0.04-0.10 | 0.04-0.10 |
| Mn | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 |
| P | 0.045 | 0.045 | 0.045 | 0.045 | 0.045 | 0.045 | 0.045 | 0.045 |
| S | 0.030 | 0.030 | 0.030 | 0.030 | 0.030 | 0.030 | 0.030 | 0030 |
| Ya. | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 |
| Cr | 18.0-20.0 | 22.0-24.0 | 22.0-24.0 | 24.0-26.0 | 24.0-26.0 | 16.0-18.0 | 17.0-19.0 | 17.0-19.0 |
| Tidak | 8.0-11.0 | 12.0-15.0 | 12.0-16.0 | 19.0-22.0 | 19.0-22.0 | 11.0-14.0 | 9.0-13.0 | 9.0-13.0 |
| Mo | - | - | 0.75 | - | 0.75 | 2.00-3.00 | - | - |
| Ti | - | - | - | - | - | - | - | - |
| Nb | - | - | 10xC Min, 10 max | - | 10xC Min, 10 max | - | - | - |
| Ta | - | - | - | - | - | - | - | 0.10 |
| N | - | - | - | - | - | - | - | - |
| V | - | - | - | - | - | - | - | - |
| Cu | - | - | - | - | - | - | - | - |
| Ce | - | - | - | - | - | - | - | - |
| B | - | - | - | - | - | - | - | - |
| Al | - | - | - | - | - | - | - | - |
| lainnya | - | - | - | - | - | - | - | - |
Perbedaan Ketebalan Dinding yang Diizinkan
| Penunjuk NPS | Selesai. | Di bawah |
| 1/8 sampai 2 1/2 termasuk, semua rasio t/D | 20.0 | 12.5 |
| 3 sampai 8 inkl., t/D hingga 5% inkl. | 22.5 | 12.5 |
| 3 sampai 8 termasuk, t/D >5% | 15.0 | 12.5 |
| 20 dan lebih besar, dilas,all/Dratios | 17.5 | 12.5 |
| 20 dan lebih besar, tanpa jahitan, t/Dupto 5% inkl. | 22.5 | 12.5 |
| 20 dan lebih besar, tanpa jahitan,t/D> 5% | 15.0 | 12.5 |
T: Apakah Anda perusahaan dagang atau produsen?
A: Penemu profesional pipa baja, produsen dan penyedia solusi
T: Berapa lama waktu pengiriman Anda?
A: Umumnya adalah 7-14 hari jika barang ada di stok. atau 30-60 hari jika barang tidak ada di stok, dan itu sesuai dengan kuantitas.
T: Apakah Anda menyediakan sampel? apakah itu gratis atau tambahan?
A: Ya, kami dapat menawarkan sampel gratis tetapi Anda perlu membayar biaya pengiriman.
T: Apa syarat pembayaran Anda?
A: Pembayaran <=1000USD, 100% di muka. Pembayaran>=1000USD, 30% T / T di muka, saldo sebelum pengiriman.
Jika Anda memiliki pertanyaan lain, jangan ragu untuk menghubungi kami
