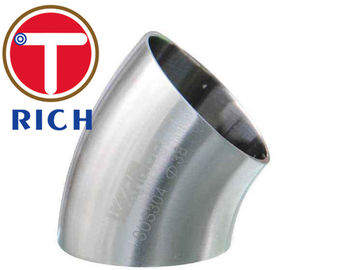

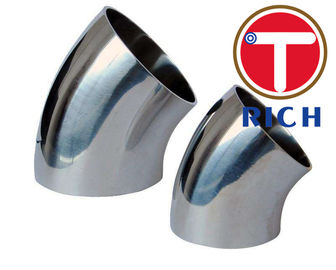

Mesin Tabung Las 45 Derajat Siku Asme Standar Seamless Dn15 - Dn600
Rincian produk
steel mechanical tubing
,low carbon steel pipe
ASME B16.9 DIN 2605 Baja tahan karat tanpa jahitan dan las 45 derajat siku
ASME B16.9 DIN 2605 Baja tahan karat tanpa jahitan dan las 45 derajat siku
Ukuran:tanpa jahitan1/2'~24' (DN15-DN600)
dilas1/2'~48' (DN15~DN1200)
Standar:ASME B16.9 DIN2605 JIS
Ketebalan:SCH5S-SCH160
Bahan:
317/L; 304/L;316/L;310/S;309/S;347/H;321/321/H;904/L
Aplikasi:
Susu, makanan, bir, minuman, farmasi, kosmetik, dll.
| DN | NPS | OD | Pusat sampai akhir | Pusat ke Pusat |
| 15 | 1/2 | 18 21.3 | 38 | 76 |
| 20 | 3/4 | 25 26.7 | 38 | 76 |
| 25 | 1 | 32 33.4 | 38 | 76 |
| 32 | 1 1/4 | 38 42.2 | 48 | 96 |
| 40 | 1 | 45 48.3 | 57 | 114 |
| 50 | 2 | 57 60.3 | 76 | 152 |
| 65 | 2 1/2 | 76 73 | 95 | 190 |
| 80 | 3 | 89 | 114 | 228 |
| 90 | 3 1/2 | 101.6 | 133 | 266 |
| 100 | 4 | 108 114 | 152 | 304 |
| 125 | 5 | 133 141.3 139.7 | 190 | 380 |
| 150 | 6 | 168.3 159 165 | 229 | 458 |
| 200 | 8 | 219 216 | 305 | 610 |
Bagaimana cara mendapatkan sampelnya?
1.Anda diminta untuk membayar biaya sampel dan biaya kurir dari Cina ke negara Anda; dan sampel gratis adalah sesuai dengan produk seperti ukuran, kelas baja dan kuantitas,Silakan konsultasikan penjualan kami untuk rincian
2Biaya sampel akan dikembalikan saat pesanan dilakukan.
Berapa jangka waktu pembayaranmu?
1.T/T: 30% deposit di muka, saldo 70% dibayarkan sebelum pengiriman
2.30% uang muka, saldo 70% dibayarkan terhadap L / C pada saat melihat
3Setelah negosiasi.
Siapa pelangganmu?
1Pemasok, Distributor, Penjual grosir, Agen, Pedagang, Pengguna Akhir, dll
Berapa lama kau akan bereaksi terhadap permintaan kami?
1.Permintaan Anda akan diproses dalam waktu 24 jam pada hari kerja. Kutipan akan dikirim setelah rincian teknis dikonfirmasi oleh pelanggan!
Jika ada pertanyaan tentang keraguan Anda, jangan ragu untuk mengirim email Anda atau hubungi kami!
-
