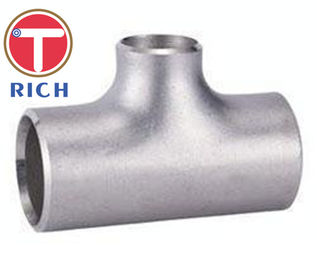

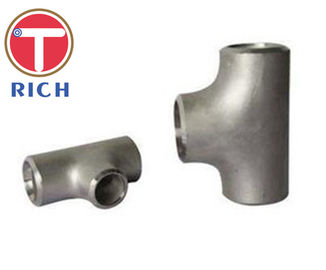

TORICH Fitting Pengurangan Baja Stainless GB / T12459 untuk Bagian-bagian Mesin
Rincian produk
steel mechanical tubing
,low carbon steel pipe
TORICH GB/T12459 T-shirt pengurangan baja tahan karat yang dilas dan tanpa jahitan
TORICH GB/T12459 T-shirt pengurangan baja tahan karat yang dilas dan tanpa jahitan
Standar:GB/T 12459, GB/T13401, SH3408, SH3409, HG/T21635, HG/T21631, ASME B16.9, MSS SP-43, DIN2605, JIS B2313
Tembaga: 1/2 "-48" DN15-DN1200
Tanpa jahitan: 1/2 "-24"DN15-DN600
Bahan:304/L,316/L,321/L,317/L,347/H,904L,310S,Duplex2205/S31803/F51, 2507/S32750/F53
WT:SCH5S-XXS
OD:25x18-920x926mm
Penggunaan:Bagian Mesin
| Diameter tidur | OD | Pusat sampai akhir | Berat sekitar | ||
| DN | PNS | D1xD2 | C | M | SCH5S |
| 20x15 | 3/4x1/2 | 25X18 26.7X21.3 | 29 | 29 | 0.06 0.07 |
| 25x20 | 1x3/4 | 32X25 33.4X26.7 | 38 | 38 | 0.10 0.11 |
| 32x25 | 1.1/4x1 | 38X32 42.2X33.4 | 48 | 48 | 0.18 0.19 |
| 40x32 | 1.1/2x1.1/4 | 45X38 48.3X42.2 | 57 | 57 | 0.32 0.42 |
| 50x40 | 2x1.1/2 | 57x45 60.3x48.3 | 64 | 60 | 0.44 0.45 |
| Aku tidak tahu. | Aku tidak tahu. | Aku tidak tahu. | Aku tidak tahu. | Aku tidak tahu. | Aku tidak tahu. |
| 900x850 | 36x34 | 914X864 | 673 | 660 | ... |
Karakteristik:
Konsentrisitas yang baikKeakuratan Tinggi
Kualitas permukaan yang baikKualitas stabil
Toleransi OD dan ID yang baikKerontokan yang halus
T: Apakah Anda perusahaan dagang atau produsen?
A: Penemu profesional pipa baja, produsen dan penyedia solusi
T: Berapa lama waktu pengiriman Anda?
A: Umumnya adalah 7-14 hari jika barang ada di stok. atau 30-60 hari jika barang tidak ada di stok, dan itu sesuai dengan kuantitas.
T: Apakah Anda menyediakan sampel? apakah itu gratis atau tambahan?
A: Ya, kami dapat menawarkan sampel gratis tetapi Anda perlu membayar biaya pengiriman.
T: Apa syarat pembayaran Anda?
A: Pembayaran <=1000USD, 100% di muka. Pembayaran>=1000USD, 30% T / T di muka, saldo sebelum pengiriman.
Jika Anda memiliki pertanyaan lain, jangan ragu untuk menghubungi kami
