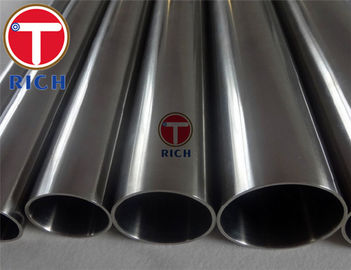

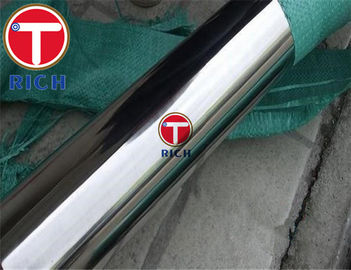

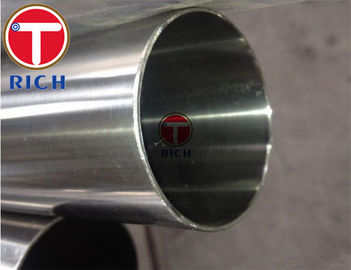

Sanitary Tube Stainless Steel Astm Mulus A270 Untuk Industri Susu / Makanan
Properti Dasar
Tempat Asal:
Cina
Nama merek:
Torich
Sertifikasi:
ISO 9001 ISO14001 TS16949
Nomor Model:
ASTM A270
Properti Perdagangan
Jumlah Pesanan Minimum:
1 ton
Harga:
Dapat dinegosiasikan
Ketentuan Pembayaran:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Kemampuan Penyediaan:
60000 Ton per Tahun
Ringkasan Produk
Deskripsi produk: ASTM A270 untuk industri susu dan makanan Stainless Steel Seamless Sanitary Tube Kelas baja/bahan baja:TP304, TP304L, TP316, TP316L, TP3211.4301, 1.4306, 1.4401, 1.4404, 1.4541S32205, S32750, S32003 Kelas dan komposisi kimia utama% C Ya. Mn P≤ S≤ Cr Mo Tidak lainnya 201 ≤ 0.15 ≤ 1...
Rincian produk
Menyoroti:
stainless tube steel
,diameter besar tabung baja stainless
Characteristic:
Tabung Sanitasi Stainless Steel
Material:
304, 304L, 316, 316L dll
Production Method:
Mulus atau dilas
Package:
Dalam bundel atau sesuai permintaan
End Protector:
Polos / Miring
Length:
2-12M
Type:
tabung stainless steel
MTC:
EN10204.3.1
Deskripsi Produk
Deskripsi produk:
ASTM A270 untuk industri susu dan makanan Stainless Steel Seamless Sanitary Tube
Kelas baja/bahan baja:
TP304, TP304L, TP316, TP316L, TP321
1.4301, 1.4306, 1.4401, 1.4404, 1.4541
S32205, S32750, S32003
| Kelas dan komposisi kimia utama% | |||||||||
| C | Ya. | Mn | P≤ | S≤ | Cr | Mo | Tidak | lainnya | |
| 201 | ≤ 0.15 | ≤ 1.00 | 5.5-7.5 | 0.06 | 0.03 | 16-18 | - | 3.5-5.5 | N ≤ 0.25 |
| 202 | ≤ 0.15 | ≤ 1.00 | 7.5-10.0 | 0.06 | 0.03 | 17-19 | - | 4.0-6.0 | N ≤ 0.25 |
| 301 | ≤ 0.15 | ≤ 1.00 | ≤ 2.00 | 0.045 | 0.03 | 16-18 | - | 6.0-8.0 | - |
| 302 | ≤ 0.15 | ≤ 1.00 | ≤ 2.00 | 0.045 | 0.03 | 17-19 | - | 8-10.0 | - |
| 303 | ≤ 0.15 | ≤ 1.00 | ≤ 2.00 | 0.2 | ≥ 0.015 | 17-19 | ≤ 0.6 | 8.0-10.0 | - |
| 304 | ≤ 0.08 | ≤ 1.00 | ≤ 2.00 | 0.045 | 0.03 | 18-20 | - | 8-10.5 | - |
| 304L | ≤ 0.03 | ≤ 1.00 | ≤ 2.00 | 0.045 | 0.03 | 18-20 | - | 9-13 | - |
| 305 | ≤ 0.12 | ≤ 1.00 | ≤ 2.00 | 0.045 | 0.03 | 17-19 | - | 10.5-13 | - |
| 309S | ≤ 0.08 | ≤ 1.00 | ≤ 2.00 | 0.045 | 0.03 | 22-24 | - | 12-15 | - |
| 310S | ≤ 0.08 | ≤ 1.5 | ≤ 2.00 | 0.045 | 0.03 | 24-26 | - | 19-22 | - |
| 316 | ≤ 0.08 | ≤ 1.00 | ≤ 2.00 | 0.045 | 0.03 | 16-18 | 2-3 | 10-14 | - |
| 316L | ≤ 0.03 | ≤ 1.00 | ≤ 2.00 | 0.045 | 0.03 | 16-18 | 2-3 | 12-15 | - |
| 317 | ≤ 0.08 | ≤ 1.00 | ≤ 2.00 | 0.045 | 0.03 | 18-20 | 3-4 | 11-15 | - |
| 317L | ≤ 0.03 | ≤ 1.00 | ≤ 2.00 | 0.045 | 0.03 | 18-20 | 3-4 | 11-15 | - |
| 321 | ≤ 0.08 | ≤ 1.00 | ≤ 2.00 | 0.045 | 0.03 | 17-19 | - | 9-13 | Ti ≥ 5 × C |
| 405 | ≤ 0.08 | ≤ 1.00 | ≤ 1.00 | 0.04 | 0.03 | 11.5-14.5 | - | ≤ 0.6 | AL0.1-0.3 |
| 420F | 0.26-0.4 | ≤ 1.00 | ≤ 1.25 | 0.06 | ≥ 0.15 | 12-14 | ≤ 0.6 | ≤ 0.6 | - |
| 430 | ≤ 0.12 | ≤ 0.75 | ≤ 1.00 | 0.04 | 0.03 | 16-18 | - | ≤ 0.6 | |
Kondisi pengiriman:Mill Finish; Mechanical Polished Surface Finish ((80 grit, 120 grit, 180 grit, 240 grit dll); Electropolished Finish
Jangkauan ukuran:
OD: 5-304.8mm
WT: 3-24.5mm
Panjang: 2-12m
Karakteristik tabung baja:
Kekuatan tinggi
Tinggi presisi
Kualitas Permukaan yang Baik
Kualitas stabil
Kerontokan yang halus
TORICH Jaminan Kualitas
Proses Produksi:
Tanpa jahitan/dilas Tergambar dingin atau digulung dingin + Pengolahan panas + dipoles

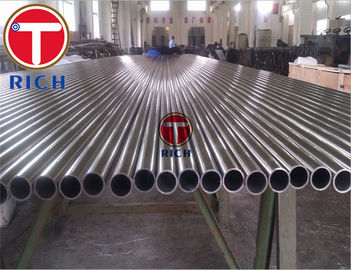

Produksi tabung baja:
Uji arus eddy dan uji ultrasonik:
Kemasan:
