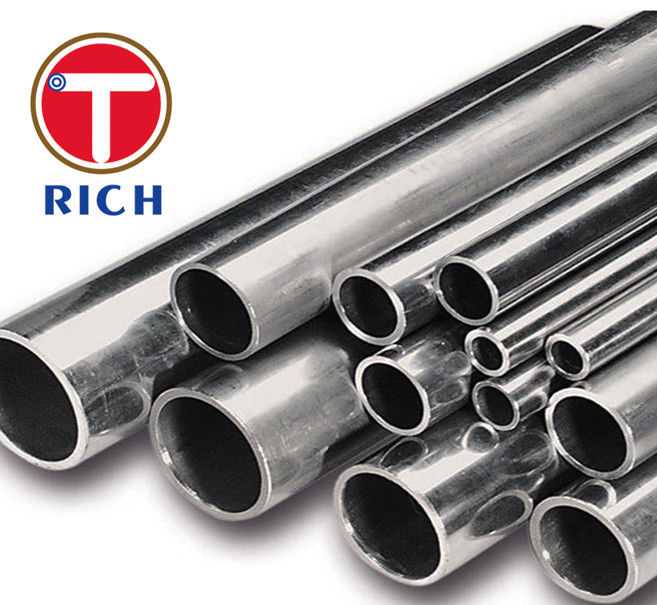

Din 11850 X5crni1810 Tabung Stainless Steel / Pipa Seamless Untuk Industri Makanan
Rincian produk
stainless steel putaran tabung
,stainless tube steel
DIN 11850 Pipa stainless steel untuk industri makanan ukuran,bahan
Bahan:
X5CrNi1810 - bahan nomor 1.4301
X6CrNiMoTi17122 - bahan nomor 1.4571
X6CrNiMo17122 - bahan nomor 1.4401
X2CrNiMo18143 - bahan nomor 1.4435
X6CrNiTi1810 - bahan nomor 1.4541
Jumlah pesanan minimum: 5 MT
Syarat pembayaran: L/C atau T/T
Kemampuan Penyediaan: 700 MT/Bulan
Waktu Pengiriman: FOB, CFR, CIF dapat dilakukan
30 ~ 60 hari sesuai detail PO kuantitas
Tabel 1 Dimensi dan penyimpangan pipa yang diizinkan
| Nominal | Seri | Toleransi | Berat badan | komentar | ||||
| 1 | 2 | 3 | OD.dev | Ketebalan dinding, dev | ||||
| 10 | 12 |
|
| ± 0.12 | 1.0 | ± 10% | 0.27 | Pipa dengan ketebalan dinding yang lebih besar daripada menurut seri 1 harus dipilih dari standar pipa yang ada untuk kisaran diameter nominal ini. |
|
| 13 |
| ± 0.3 | 1.5 | ± 10% | 0.43 | ||
|
|
| 14 | ± 0.3 | 2.0 | ± 10% | 0.60 | ||
| 15 | 18 |
|
| ± 0.12 | 1.0 | ± 10% | 0.42 | |
|
| 19 |
| ± 0.3 | 1.5 | ± 10% | 0.66 | ||
|
|
| 20 | ± 0.3 | 2.0 | ± 10% | 0.90 | ||
| 20 | 22 |
|
| ± 0.12 | 1.0 | ± 10% | 0.51 | |
|
| 23 |
| ± 0.3 | 1.5 | ± 10% | 0.81 | ||
|
|
| 24 | ± 0.3 | 2.0 | ± 10% | 1.10 | ||
| 25 | 28 |
|
| ± 0.15 | 1.0 | ± 10% | 0.66 | |
|
| 29 |
| ± 1% | 1.5 | ± 10% | 1.03 | ||
|
|
| 30 | ± 0.3 | 2.0 | ± 10% | 1.40 | ||
| 32 | 34 |
|
| ± 0.15 | 1.0 | ± 10% | 0.82 | |
|
| 35 |
| ± 1% | 1.5 | ± 10% | 1.26 | ||
|
|
| 36 | ± 1% | 2.0 | ± 10% | 1.70 | ||
| 40 | 40 |
|
| ± 0.2 | 1.0 | ± 10% | 0.97 | |
|
| 41 |
| ± 1% | 1.5 | ± 10% | 1.50 | ||
|
|
| 42 | ± 1% | 2.0 | ± 10% | 2.00 | ||
| 50 | 52 |
|
| ± 0.2 | 1.0 | C10% | 1.26 | |
|
| 53 |
| ± 1% | 1.5 | ± 10% | 1.90 | ||
|
|
| 54 | ± 1% | 2.0 | ± 10% | 2.60 | ||
| 65 | 70 |
|
| ± 0.3 | 2.0 | ± 10% | 3.43 | |
| 80 | 85 |
|
| ± 0.3 | 2.0 | ± 10% | 4.16 | |
| 100 | 104 |
|
| ± 0.3 | 2.0 | ± 10% | 5.03 | |
| 125 | 129 |
|
| ± 0.4 | 2.0 | ± 10% | 6.36 | |
| 150 | 154 |
|
| ± 0.4 | 2.0 | ± 10% | 7.49 | |
Standar yang dikutip:
DIN 2413 Pipa Baja perhitungan ketebalan dinding untuk menahan tekanan internal
DIN 17456 pipa stainless steel bulat tanpa jahitan untuk persyaratan umum spesifikasi teknis
Sertifikat uji bahan DIN 50049
-
