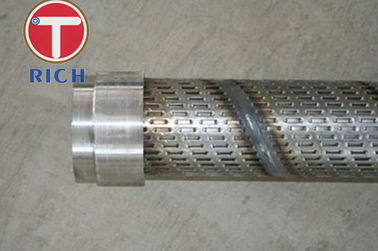

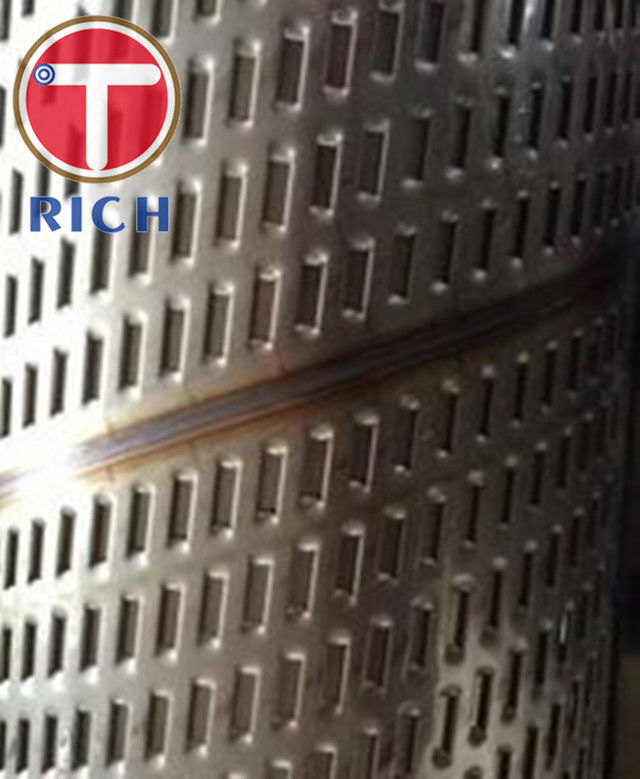

15m Max Panjang Yah Pipa Layar, Tubing Mekanik Mulus Untuk Kontrol Pasir
Rincian produk
stainless steel presisi tubing
,Seamless Carbon Steel tube
TORICH API5CT-0735 J55, K55, N80 slot dan pipa layar
TORICH API5CT-0735 J55, K55, N80 slot dan pipa layar
Standar:API 5CT,API 5L,ASTM A106,ASTM A53
OD:50-500mm
WT: 2-20mm
Panjangnya: 15m maksimal
Slot dan lebar layar:0.1-6mm, ±0,03mm
Slot Dan Jenis Layar:Paralel, Berpotongan, Spiral
Bahan:J55, K55, N80, N80Q,L80,P110 dll
Penggunaan:Minyak dan Berakhir untuk Pengendalian Pasir
Daftar casing
| Kode | OD | KG/M | WT | Bentuk pengolahan akhir | |||||||||
| 1 | 2 | H40 | J55 K55 | M65 | L80 R95 | N80 1Q. | C90 T95 | C110 | P110 | Q125 | |||
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 |
| 4-1/2 | 9.50 | 114.30 | 14.14 | 5.21 | PS | PS | PS | - | - | - | - | - | - |
| 4-1/2 | 10.50 | 114.30 | 15.63 | 5.69 | - | PSB | PSB | - | - | - | - | - | - |
| 4-1/2 | 11.60 | 114.30 | 17.26 | 6.35 | - | PSLB | PLB | PLB | PLB | PLB | P | PLB | - |
| 4-1/2 | 13.50 | 114.30 | 20.09 | 7.73 | - | - | PLB | PLB | PLB | PLB | P | PLB | |
| 4-1/2 | 15.10 | 114.30 | 22.47 | 8.56 | - | - | - | - | - | - | - | PLB | PLB |
| 5 | 11.50 | 127.00 | 17.11 | 5.59 | - | PS | PS | - | - | - | - | - | - |
| 5 | 13.00 | 127.00 | 19.35 | 6.43 | - | PSLB | PSLB | - | - | - | - | - | - |
| Aku tidak tahu. | |||||||||||||
| 20 | 133.00 | 508.00 | 197.93 | 16.13 | - | PSLB | - | - | - | - | - | - | - |
Lokakarya:
Peralatan pengujian:
Laboratorium Analisis Kimia ZEISS Mikroskop MetallografiHW200B CS Analyzer Cryostat Untuk Tes Dampak
Pendulum Impact Tester 300KN Elektronik Universal Tester
Karakteristik:
Konsentrisitas yang baik Keakuratan tinggi
Kualitas permukaan yang baik Kualitas yang stabil
Toleransi OD dan ID yang baik Kerapatan halus
T: Apakah Anda perusahaan dagang atau produsen?
A: Penemu profesional pipa baja, produsen dan penyedia solusi
T: Berapa lama waktu pengiriman Anda?
A: Umumnya adalah 7-14 hari jika barang ada di stok. atau 30-60 hari jika barang tidak ada di stok, dan itu sesuai dengan kuantitas.
T: Apakah Anda menyediakan sampel? apakah itu gratis atau tambahan?
A: Ya, kami dapat menawarkan sampel gratis tetapi Anda perlu membayar biaya pengiriman.
T: Apa syarat pembayaran Anda?
A: Pembayaran <=1000USD, 100% di muka. Pembayaran>=1000USD, 30% T / T di muka, saldo sebelum pengiriman.
Jika Anda memiliki pertanyaan lain, jangan ragu untuk menghubungi kami
TORICH API5CT-0735 J55, K55, N80 slot dan pipa layar
-
