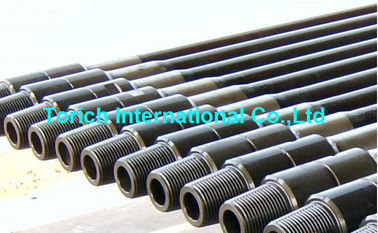

Pipa Bor Seamless Dingin Diambil 4000 - 12500mm Untuk Pengeboran Geologi / Penambangan
Properti Dasar
Tempat Asal:
Zhejiang, China
Nama merek:
TORICH
Sertifikasi:
ISO9001 ISO14001 TS16949
Nomor Model:
GB / T 9808-2008, JIS G3465-2006
Properti Perdagangan
Jumlah Pesanan Minimum:
5 ton
Harga:
Dapat dinegosiasikan
Ketentuan Pembayaran:
T / T, L / C, D / A, D / P, Western Union, MoneyGram
Kemampuan Penyediaan:
20000 ton per tahun
Ringkasan Produk
Pipa bor tanpa jahitan yang ditarik dingin untuk pengeboran geologi dan pertambangan,GB/T 9808-2008, JIS G3465-2006,TORICH Pipa bor tanpa jahitan yang ditarik dingin untuk pengeboran geologi dan pertambangan,GB/T 9808-2008, JIS G3465-2006,TORICH Standar:GB/T 9808-2008 Aplikasi: untuk batang bor ...
Rincian produk
Menyoroti:
Pipa baja mulus
,stainless steel presisi tubing
Product Name:
Pipa Bor Seamless Cold Drawn untuk Geological Drilling & Mining, GB / T 9808-2008, JIS G3465-200
Product Name:
Pipa Bor Seamless Cold Drawn untuk Geological Drilling & Mining, GB / T 9808-2008, JIS G3465-200
Keyword:
pipa bor
Shape:
Bulat
Shape:
Bulat
Application:
untuk Pengeboran & Penambangan Geologi
Type:
Mulus
Technique:
Drwan dingin
Technique:
Drwan dingin
Standard:
GB / T 9808-2008, JIS G3465-2006
Standard:
GB / T 9808-2008, JIS G3465-2006
Length:
4000-12500mm
OD:
6-420mm
OD:
6-420mm
WT:
0.5-50mm
WT:
0.5-50mm
Deskripsi Produk
Pipa bor tanpa jahitan yang ditarik dingin untuk pengeboran geologi dan pertambangan,GB/T 9808-2008, JIS G3465-2006,TORICH
Pipa bor tanpa jahitan yang ditarik dingin untuk pengeboran geologi dan pertambangan,GB/T 9808-2008, JIS G3465-2006,TORICH
Standar:GB/T 9808-2008
Aplikasi: untuk batang bor kawat,pipa barel inti,pangkat penghubung dan casing batang bor
Jangkauan ukuran:
OD:5-420mm WT:0.5-50mm Panjang:max12000mm
Ukuran normal
| Mesin pengeboran kabel | Tabung Core Barrel | Casing | Kopling |
| 43.5*4.75 | 31*2 | 45 kali 4.5 | 46 x 6.5 |
| 53 kali 4.5 | 41*2 | 54 kali 4.5 | 56*7 |
| 55.5*4.75 | 43 kali 2.5 | 58 kali 4.5 | 58*7 |
| 71*5 | 56 x 2.5 | 73*5 | 74 kali 7.5 |
| 71 kali 5.5 | 56 x 2.5 | 73*5 | 75*8 |
| 89*5 | 71*3 | 89*6 | 94*9.5 |
| 55.5*4.8 ((BQ) | 42.9*2.4 | 57.2 x 5.6 | |
| 70.1*5 ((NQ) | 55.62*8 | 73 kali 6.25 | |
| 89*5.6 ((Pusat) | 73 kali 3.15 | 92.1*7.15 |
Kelas baja dan komposisi kimia
| Baja | Kekuatan tarik | Titik Yield | Perpanjangan | Pengolahan Panas |
| Kelas | Mpa (menit) | Mpa (menit) | % ((Min) | |
| ZT380 | 640 | 380 | 14 | Diormalkan |
| ZT490 | 690 | 490 | 12 | Diormalkan |
| ZT540 | 740 | 540 | 12 | Diormalkan |
| ZT590 | 770 | 590 | 12 | Diormalkan |
| ZT640 | 790 | 640 | 12 | QT |
| ZT740 | 840 | 740 | 10 | QT |
| XJY850 | 950 | 850 | 15 | QT |
Pipa bor tanpa jahitan yang ditarik dingin untuk pengeboran geologi dan pertambangan,GB/T 9808-2008, JIS G3465-2006,TORICH
