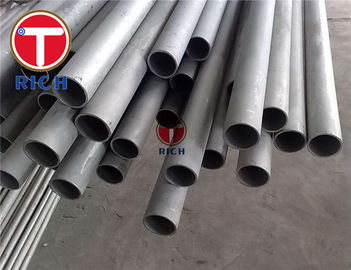

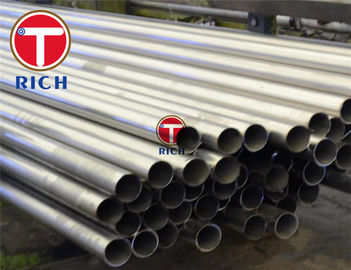

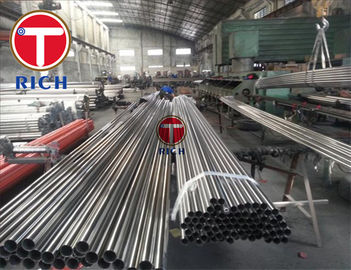

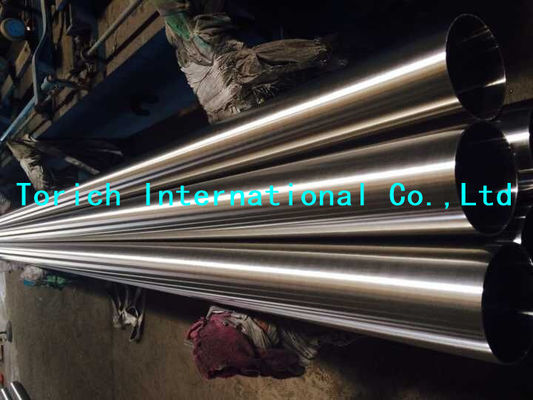

Boiler / Penukar Panas Tabung Stainless Steel, Pipa Acar Annealed Ss Seamless
Rincian produk
stainless steel putaran tabung
,diameter besar tabung baja stainless
Boiler dan penukar panas tabung Annealed dan diseduh tabung stainless steel tanpa jahitan
Tabung stainless steel tanpa jahitan untuk boiler dan penukar panas, dibuat sesuai dengan standar nasional Cina GB13296-91.
GB13296-91 adalah standar yang berlaku untuk pipa stainless steel tanpa jahitan yang digunakan untuk boiler dan penukar panas.
GB13296-1991 Tabung stainless steel tanpa jahitan untuk boiler, penukar panas
0Cr18Ni9 1Cr18Ni9Ti 0Cr18Ni12Mo2Ti
Standar teknis:GB13296-91
Toleransi untuk tabung boiler stainless steel tanpa jahitan:
| Metode Produksi | Ukuran ((mm) | Toleransi | |
| Hot Rolling (Ekstrusi) | OD | ≤ 140 | ± 1,25% |
| > 140 | ± 1,0% | ||
| WT | ≤10 | ± 12,5% | |
| > 10 | ± 15% | ||
| Ditarik dingin ((Dilapisi dingin)) | OD | 8 ~ 30 | ±0,20mm |
| > 30 ~ 50 | ± 0,30mm | ||
| > 50 | ± 0,8% | ||
| WT | 1.0~3 | +12% -10% | |
| > 3.0 | ± 10% | ||
Panjangnya:
Panjang atau tabung baja umum:
Hot Rolling (Extrusion) tabung: 3 ~ 12 m
Tabung yang ditarik dingin: 3 ~ 8 m
Panjang untuk pipa air & pipa baja boiler:
Hot Rolling (Extrusion) tabung: 4 ~ 12 m
Tabung yang ditarik dingin: 4 ~ 8 m
Toleransi lentur:
WT≤15mm, Bending≤1.5mm/m
WT>15mm, Bending≤2.0mm/m
Bentuk akhir:
Kedua ujung pipa harus dipotong pada sudut lurus, dan menghapus burrs
Sifat mekanik
Pengolahan panas dari sifat mekanik longitudinal pipa baja harus sesuai dengan standar.
| Bahan | Kekuatan tarik MPa ≥ | Kekuatan hasil MPa ≥ | Perpanjangan % ≥ |
| 0Cr18Ni9 | 520 | 205 | 35 |
| 1Cr19Ni9 | 520 | 205 | 35 |
| 0Cr19Ni10 | 480 | 175 | 35 |
| 1Cr18Ni9Ti | 550 | 205 | 40 |
| 0Cr18Ni12Mo2Ti | 530 | 205 | 35 |
| 0Cr26Ni5Mo2 | 590 | 390 | 18 |
| 1Cr17 | 410 | 245 | 20 |
| 00Cr27Mo | 410 | 245 | 20 |
| 1Cr25Ti | 440 | 245 | 17 |
Kekerasan:
Untuk tabung yang W.T ≥ 2 mm, tes kekerasan Rockwell harus dilakukan.
Uji tabung boiler tanpa jahitan:
1.Pengujian lentur:
Tabung harus menjalani uji lentur ketika OD ≤22mm. Sudut lentur adalah 90 derajat, dan jari-jari lentur adalah 6 kali diameter luar tabung baja.
2. Uji hidraulik;
Pengujian eddy current, pengujian ultrasonik dapat digunakan sebagai pengganti pengujian hidrolik.C8 harus diikuti.
3. Tes perataan
4. Uji Flanging
5. Ekspansi tes
-
