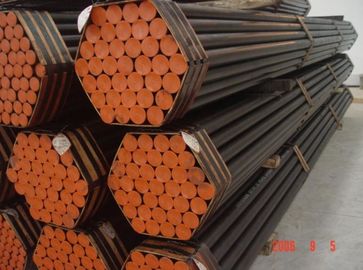

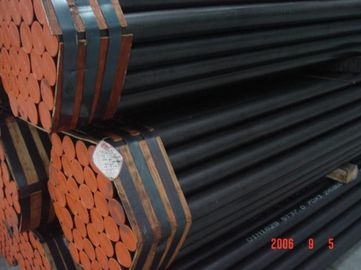

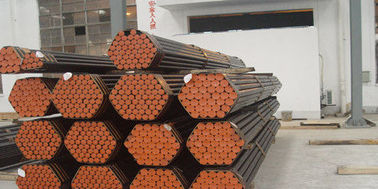

Astm A106 A53 Api 5l Pipa Baja Struktural / Tabung Baja Karbon / Pipa Baja Struktural
Properti Dasar
Tempat Asal:
Zhejiang, China
Nama merek:
TORICH
Sertifikasi:
ISO9001 ISO14001 TS16949
Nomor Model:
ASTM A106 A53 API 5L
Properti Perdagangan
Jumlah Pesanan Minimum:
5 ton
Harga:
600-900 usd per ton
Ketentuan Pembayaran:
T / T, L / C, D / A, D / P, Western Union, MoneyGram
Kemampuan Penyediaan:
50000 TON PER TAHUN
Ringkasan Produk
Astm A106 A53 Api 5l Pipa Baja Struktural / Tabung Baja Karbon / Pipa Baja Struktural ASTM A106 A53 API 5L Structural Steel Pipe, Carbon Steel Seamless Tube,TORICH ASTM A106 A53 API 5L Tabung baja karbon tanpa jahitan untuk layanan suhu tinggi Aplikasi: untuk layanan suhu tinggi Rentang ukuran: O.D....
Rincian produk
Menyoroti:
Tabung Baja struktural
,structural steel square tubing
Product Name:
Astm A106 A53 Api 5l Pipa Baja Struktural / Tabung Baja Karbon / Pipa Baja Struktural
Keyword:
pipa baja struktural
Application:
Untuk layanan suhu tinggi
Type:
Mulus
Grade:
GradeA, GradeB, Gradec
OD:
6-168mm
WT:
1-15mm
Length:
max12000mm
Brand:
UNTUK KAYA
Certifications:
ISO 9001: 2008, TS16949, ABS, CCS, DNV, GL
Deskripsi Produk
Astm A106 A53 Api 5l Pipa Baja Struktural / Tabung Baja Karbon / Pipa Baja Struktural
ASTM A106 A53 API 5L Structural Steel Pipe, Carbon Steel Seamless Tube,TORICH
ASTM A106 A53 API 5L Tabung baja karbon tanpa jahitan untuk layanan suhu tinggi
Aplikasi: untuk layanan suhu tinggi
Rentang ukuran: O.D.:6-168mm W.T.:1-15mm L:max12000mm
Kelas baja dan komposisi kimia:
| Baja Kelas | C | Mn | P | S | Ya. | Cr | Cu | Mo | Tidak | V |
| maksimal | maksimal | maksimal | menit | maksimal | maksimal | maksimal | maksimal | maksimal | ||
| A | 0.25 | 0.27 ~ 0.93 | 0.035 | 0.035 | 0.10 | 0.40 | 0.40 | 0.15 | 0.40 | 0.08 |
| B | 0.30 | 0.27 ~ 1.06 | 0.035 | 0.035 | 0.10 | 0.40 | 0.40 | 0.15 | 0.40 | 0.08 |
| C | 0.35 | 0.27 ~ 1.06 | 0.035 | 0.035 | 0.10 | 0.40 | 0.40 | 0.15 | 0.40 | 0.08 |
| Kelas | Kekuatan tarik Mpa | Titik Hasil Mpa | Perpanjangan % |
| A | ≥330 | ≥205 | 20 |
| B | ≥415 | ≥ 240 | 20 |
| C | ≥ 485 | ≥ 275 | 20 |
