Dingin Diambil Tabung Baja Seamless Kekuatan Tinggi Paduan Rendah Astm A847 Standar
Rincian produk
Pipa baja mulus
,stainless steel presisi tubing

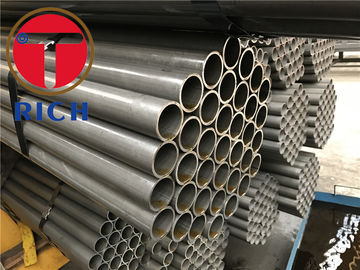

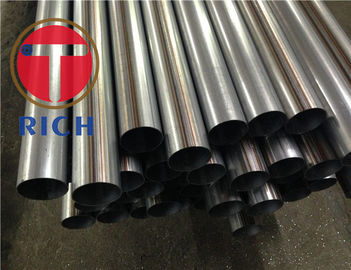

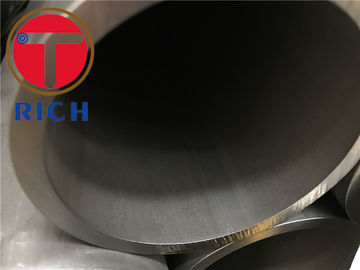

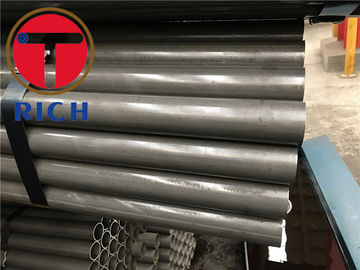

TORICH ASTM A847 Cold Formed Seamless High Strength Low Alloy Structural Tubing
TORICH ASTM A847 Cold Formed Seamless High Strength Low Alloy Structural Tubing
Standar:ASTM A847, ASTM A370, ASTM A700, ASTM A751, ASTM G101
Jangkauan ukuran: OD: 30-813mm
WT: 3-12.7mm
Panjang: ≥1,5m
Bahan:Tabung yang dibentuk dingin
Bentuk:Bulat, persegi panjang persegi panjangdan bentuk khusus.
Tes: Tes perataan Tes ketegangan
Penggunaan:Tabung struktural dengan ketahanan korosi atmosfer yang ditingkatkan.
Persyaratan Kimia
| C maksimal | Mn maksimal | P maksimal | S maksimal | Cu menit | Tidak | Ya. | Cr | |
| Analisis Panas | 0.20 | 1.35 | 0.04 | 0.035 | 0.20 | - | - | - |
| Analisis Produk | 0.24 | 1.40 | 0.04 | 0.045 | 0.18 | - | - | - |
Persyaratan ketegangan untuk tabung berbentuk bulat
| Kekuatan tarik, min, psi [Mpa] | 70 000 [485] |
| Kekuatan output, min, psi [Mpa] | 50 000 [345] |
| Perpanjangan dalam 2 inci atau [50mm] min, % | 19 |
Karakteristik:
Konsentrisitas yang baik Keakuratan tinggi
Kualitas permukaan yang baik Kualitas yang stabil
Toleransi OD dan ID yang baik Kerapatan halus
TORICH Jaminan Kualitas
T: Apakah Anda perusahaan dagang atau produsen?
A: Penemu profesional pipa baja, produsen dan penyedia solusi
T: Berapa lama waktu pengiriman Anda?
A: Umumnya adalah 7-14 hari jika barang ada di stok. atau 30-60 hari jika barang tidak ada di stok, dan itu sesuai dengan kuantitas.
T: Apakah Anda menyediakan sampel? apakah itu gratis atau tambahan?
A: Ya, kami dapat menawarkan sampel gratis tetapi Anda perlu membayar biaya pengiriman.
T: Apa syarat pembayaran Anda?
A: Pembayaran <=1000USD, 100% di muka. Pembayaran>=1000USD, 30% T / T di muka, saldo sebelum pengiriman.
Jika Anda memiliki pertanyaan lain, jangan ragu untuk menghubungi kami
TORICH ASTM A847 Cold Formed Seamless High Strength Low Alloy Structural Tubing
-
