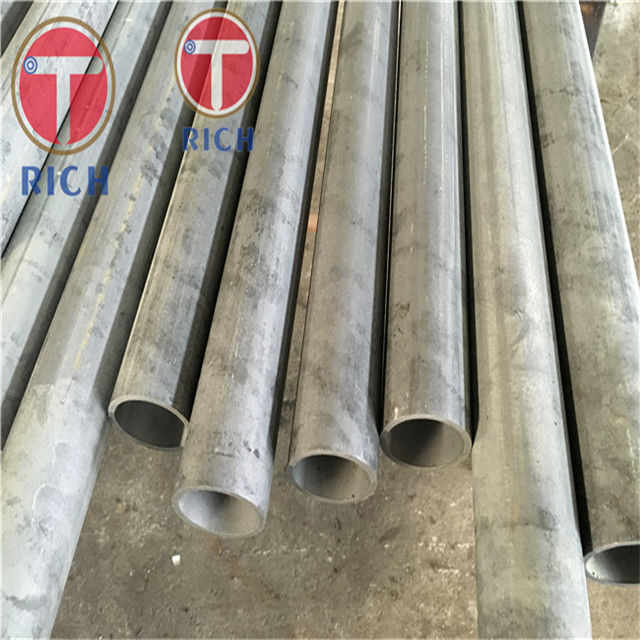

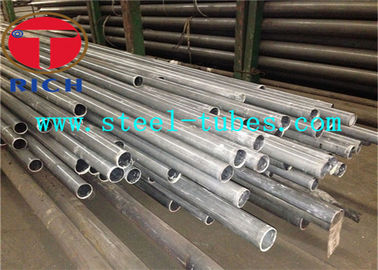

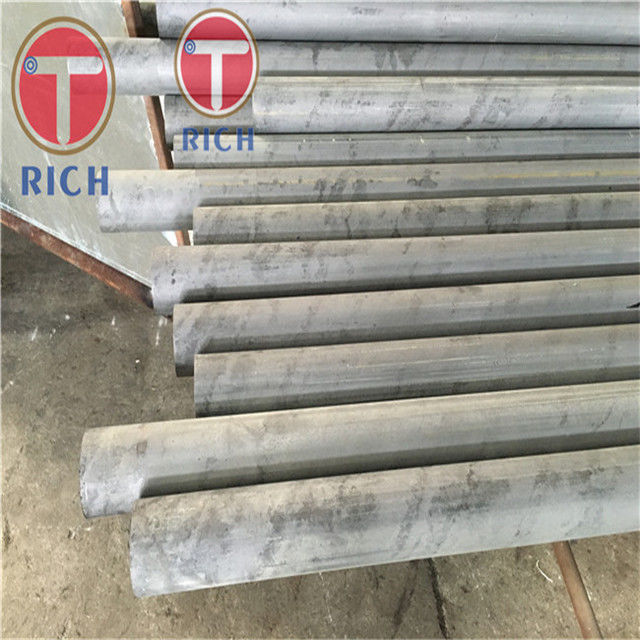

Struktural Carbon Seamless Steel Tube 1 - 12m Dengan Permukaan Berminyak Gb / t8162
Rincian produk
stainless steel presisi tubing
,Seamless Carbon Steel tube
GB/T8162 Struktur Pipa Baja Karbon Tanpa Jahitan
Kelas baja/bahan baja/nomor baja:
10# 15# 20# 25# 35# 45# 20Mn 25Mn Q235 Q275 Q295 Q345 Q390 Q420 Q460
40Mn2 45Mn2 27SiMn 30Cr 35Cr 40Cr 45Cr 50Cr 38CrSi 12CrMo 15CrMo 35CrMo 42CrMo 12CrMoV
Jangkauan ukuran:
OD: 5-220mm
WT:0.5-30mm
Panjang: 1-12m, sesuai kebutuhan pelanggan
Karakteristik:
Kualitas Permukaan yang Baik
Toleransi OD dan ID yang baik dikontrol sesuai dengan standar teknis
Kualitas stabil
100% Uji arus Eddy
TORICH Jaminan Kualitas
Proses Produksi:
Bahan baku → Inspeksi yang Akan Datang → Penyimpanan → Pemotongan → Memukul → Penggilingan Penggorengan → Pembersihan→ Fosforisasi → Bersih→Penggilingan → Menggambar dingin/Menggulung dingin→Cek tengah→Pengolahan Panas→Perataan→Mengakhiri Pemotongan→Pemeriksaan Akhir→Pengelompokan→Penyimpanan
Bahan baku tabung:
Seamless Hollow Sections, diproduksi dengan menindik panas atau digulung panas.
Pemeriksaan di kapal kerja:
Pengukuran Ukuran
NDT
Pemeriksaan: dengan uji eddy current uji ultrasonik
Tes mekanik.
APernyataan:
Untuk pembuatan saluran pipa, peralatan fittings pipa dan struktur baja
-
