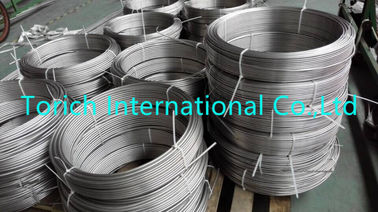

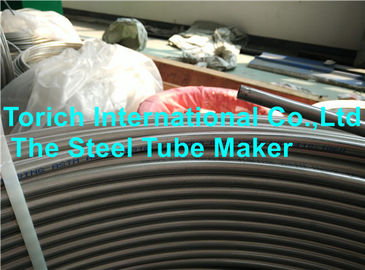

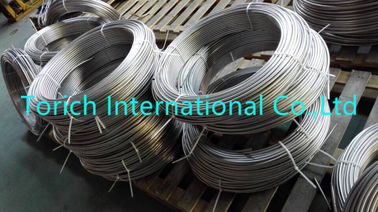

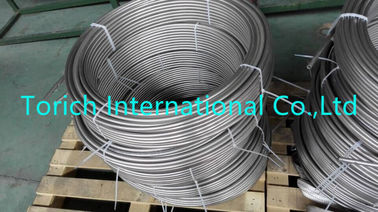

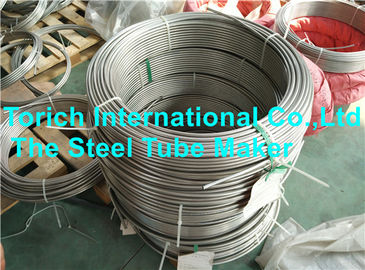

316l / 316/304 Presisi Stainless Steel Tubing Untuk Penukar panas Kondensor
Properti Dasar
Tempat Asal:
Zhejiang, China
Nama merek:
TORICH
Sertifikasi:
ISO9001 ISO14001 TS16949
Nomor Model:
ASTM A249 / 269
Properti Perdagangan
Jumlah Pesanan Minimum:
1000KG
Harga:
Dapat dinegosiasikan
Ketentuan Pembayaran:
T / T, L / C, D / A, D / P, Western Union, MoneyGram
Kemampuan Penyediaan:
5000KG PER TAHUN
Ringkasan Produk
Stainless Steel Coil Tube untuk Kondensor, Penukar Panas, Penggunaan Evaporator,316L/316/304,ASTM A249/269,TORICH Stainless Steel Coil Tube untuk kondensor, penukar panas, penguap, 316L/316/304, ASTM A249/269, TORICH Berbagai ukuran:diameter luar 3-25,4mm Ketebalan dinding:0.3-2.0mm Ukuran Bore ...
Rincian produk
Menyoroti:
stainless steel putaran tabung
,stainless tube steel
Product Name:
Tabung Coil Stainless Steel untuk Kondensor, Penukar Panas, Penggunaan Evaporator, 316L / 316/304, A
Keyword:
Tabung Coil Stainless Steel
Usage:
untuk Kondensor, Penukar Panas, Penggunaan Evaporator
Material:
316L 316 304 201
Type:
Mulus
Shape:
Bulat
OD:
3-24.5mm
WT:
0.3-2.0mm
General Delivery Length:
200-1000mm
Brand:
UNTUK KAYA
Deskripsi Produk
Stainless Steel Coil Tube untuk Kondensor, Penukar Panas, Penggunaan Evaporator,316L/316/304,ASTM A249/269,TORICH
Stainless Steel Coil Tube untuk kondensor, penukar panas, penguap, 316L/316/304, ASTM A249/269, TORICH
Berbagai ukuran:diameter luar 3-25,4mm
Ketebalan dinding:0.3-2.0mm
Ukuran Bore Dalam Koil:500-1500 mm
Waktu pengiriman umum:200-1000mm
Contoh sifat fisik pipa baja di bawah kondisi Bright Annealing:
Persentase perpanjangan: > 55%
Kekerasan permukaan: < 170HV
Kekuatan tarik:> 550N/MM2
Kekuatan output:> 195N/NM2
Tabel spesifikasi tabung kumparan
| O.D. mm
W.T mm | 3.0-4.0 | 4.01-6.00 | 6.01-8.00 | 8.01-10.0 | 10.01-12.7 | 12.71-19.05 | 19.05-25.4 |
| 0.30-0.40 | √ | √ | √ | ||||
| 0.41-0.50 | √ | √ | √ | √ | |||
| 0.51-0.60 | √ | √ | √ | √ | √ | ||
| 0.61-0.70 | √ | √ | √ | √ | √ | √ | |
| 0.71-1.00 | √ | √ | √ | √ | √ | √ | √ |
| 1.01-1.20 | √ | √ | √ | √ | √ | √ | |
| 1.21-1.50 | √ | √ | √ | √ | |||
| 1.51-2.0 | √ | √ | √ |
Standar: ASTM A269/A249
Aplikasi:
1. Evaporator untuk peralatan bir & minuman
2Kondensator untuk peralatan bir dan minuman
3. Penukar panas
4Instrumen untuk industri petrokimia
5Peralatan pendingin dan pemanasan
6. pipa transmisi gas dan cairan
ASTM A249/ASTM 269,Pembuatan untuk PeralatanStainless Steel Coil Tube untuk Kondensor, Penukar Panas, Penggunaan Evaporator,316L/316/304,ASTM A249/269,TORICHMinuman, Stainless Steel Coil Tube
