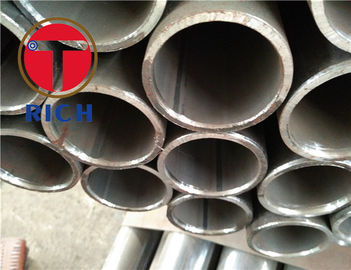

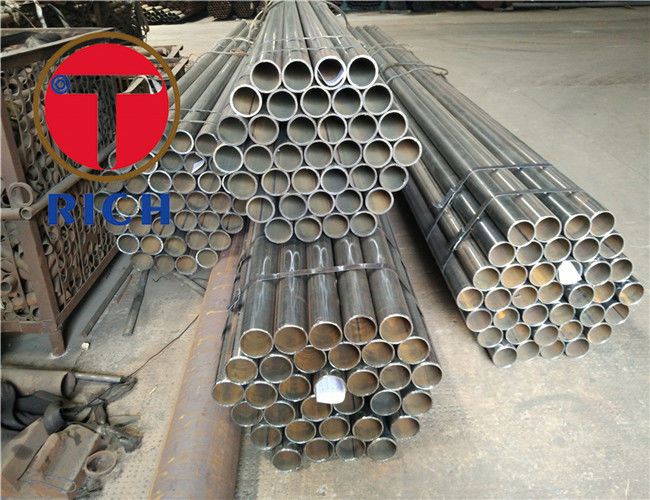

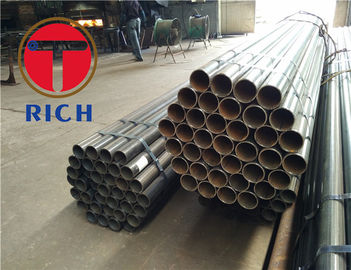

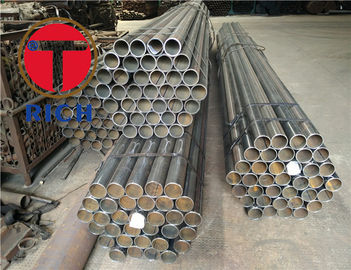

Erw Carbon Steel Heat Exchanger Tabung Pipa Kondensor Astm A214 Sa214
Rincian produk
baja karbon Tabung
,Penukar panas tabung
ASTM A214 SA214 ERW Karbon Baja Pipa Penukar Panas Pipa Kondensator
Jangkauan ukuran:O.D.:6-76.mm W.T.:0.9-19.0mm L: sesuai kebutuhan pelanggan
Pembuatan:
Tabung dibuat dengan pengelasan resistensi listrik.
Kelas baja dan komposisi kimia:
| C | 0.18 |
| Mn | 0.27 ke 0.63 |
| P | ≤ 0.035 |
| S | ≤ 0.035 |
Persyaratan kekerasan:
Tabung harus memiliki nomor kekerasan tidak lebih dari 72HRB.
Kondisi permukaan:
Tabung yang sudah jadi bebas dari skala., sedikit oksidasi tidak dianggap sebagai skala
Pengolahan panas:
Setelah pengelasan, semua tabung dirawat panas pada suhu 1200 °F ((650 °C) atau lebih tinggi dan selanjutnya dengan pendinginan di udara atau di ruang pendinginan di tungku atmosfer terkontrol.
Tabung-tabung yang ditarik dingin harus dirawat panas setelah melewati proses penarik dingin terakhir pada suhu 1200°F ((650°C) atau lebih tinggi
Uji dan Pemeriksaan:
Persyaratan Kekerasan
Tes Mekanis
- Tes perataan
- Uji Flange
- Uji terbalik
- Uji listrik hidrostatik atau tidak merusak
| Toleransi untuk OD dan WT ((SA-450/SA-450M) | |||||
| OD dalam ((mm) | + | - | WT dalam mm) | + | - |
| <1''(25.4) | 0.10 | 0.10 | ≤1,1/2'(38.1) | 20% | 0 |
| 1'~1.1'(25.4~38.1) | 0.15 | 0.15 | >1.1/2'(38.2) | 22% | 0 |
| >1,1/2'~<2'(38,1~50.8 | 0.20 | 0.20 | |||
| 2'~<2.1/2' ((50.8~63.5) | 0.25 | 0.25 | |||
| 2.1/2'~<3'(63.5~76.2) | 0.30 | 0.30 | |||
| 3'~<4'(76.2~101.6) | 0.38 | 0.38 | |||
| 4'~<7.1/2' ((101.6~190.5) | 0.38 | 0.64 | |||
| > 7.1/2~9'(190.5~228.6) | 0.38 | 1.14 | |||
Aplikasi:untuk penukar panas, kondensor dan peralatan transfer panas serupa.
-
