1010 1020 Tabung Baja Segitiga Jenis Pipa Lemon
Properti Dasar
Tempat Asal:
Cina
Nama merek:
Torich
Sertifikasi:
ISO 9001 ISO14001 TS16949
Nomor Model:
ST52, E235, E355 dll
Properti Perdagangan
Jumlah Pesanan Minimum:
1 ton
Harga:
Dapat dinegosiasikan
Ketentuan Pembayaran:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Kemampuan Penyediaan:
20000 Ton per Tahun
Ringkasan Produk
Deskripsi produk: untuk PTO Agricultural Drive Shaft 1010 1020 Lemon Pipe Type Triangle Steel Tube Komposisi kimia: Standar Kelas baja C Ya. Mn P S EN 10305-1 E215 ≤ 0.10 ≤ 0.05 ≤ 0.70 ≤ 0.025 ≤ 0.025 E235 ≤ 0.17 ≤ 0.35 ≤ 1.20 ≤ 0.025 ≤ 0.025 E355 ≤ 0.22 ≤ 0.55 ≤ 1.60 ≤ 0.025 ≤ 0.025 DIN 2391 St35 ≤ ...
Rincian produk
Menyoroti:
structural steel square tubing
,persegi panjang pipa baja
Name:
1010 1020 Tabung Baja Segitiga Jenis Pipa Lemon
Material:
ST52, E235, 1020 dll
Production Method:
Dingin yang Mulus Selesai
Package:
Dalam bundel atau sesuai permintaan
End Protector:
Polos / Miring
Length:
2-12M
Type:
Tabung Lemon Baja Karbon
MTC:
EN10204.3.1
Deskripsi Produk
Deskripsi produk:
untuk PTO Agricultural Drive Shaft 1010 1020 Lemon Pipe Type Triangle Steel Tube
Komposisi kimia:
| Standar | Kelas baja | C | Ya. | Mn | P | S |
| EN 10305-1 | E215 | ≤ 0.10 | ≤ 0.05 | ≤ 0.70 | ≤ 0.025 | ≤ 0.025 |
| E235 | ≤ 0.17 | ≤ 0.35 | ≤ 1.20 | ≤ 0.025 | ≤ 0.025 | |
| E355 | ≤ 0.22 | ≤ 0.55 | ≤ 1.60 | ≤ 0.025 | ≤ 0.025 | |
| DIN 2391 | St35 | ≤ 0.17 | ≤ 0.35 | ≥ 0.40 | ≤ 0.025 | ≤ 0.025 |
| St37.4 | ≤ 0.17 | ≤ 0.35 | ≥ 0.40 | ≤ 0.025 | ≤ 0.025 | |
| St45 | ≤ 0.21 | ≤ 0.35 | ≥ 0.40 | ≤ 0.025 | ≤ 0.025 | |
| St52 | ≤ 0.22 | ≤ 0.55 | ≤ 1.60 | ≤ 0.025 | ≤ 0.025 | |
| GB/T 3639 | 10 | 0.07-0.13 | 0.17-0.37 | 0.35-0.65 | ≤ 0.030 | ≤ 0.030 |
| 20 | 0.17-0.23 | 0.17-0.37 | 0.35-0.65 | ≤ 0.030 | ≤ 0.030 | |
| 35 | 0.32-0.39 | 0.17-0.37 | 0.50-0.80 | ≤ 0.030 | ≤ 0.030 | |
| 45 | 0.42-0.50 | 0.17-0.37 | 0.50-0.80 | ≤ 0.030 | ≤ 0.030 | |
| Q345B | ≤ 0.20 | ≤ 0.50 | ≤ 1.70 | ≤ 0.030 | ≤ 0.030 |
Ukuran:
| Tabung Baja Segitiga | Bagian luar (mm) | Bagian dalam (mm) | ||
| H | S | H | S | |
| 1S | 32.4 | 2.5 | 26.6 | 3.5 |
| 2S | 36.1 | 3.4 | 29 | 4 |
| 4S | 43.4 | 3.3 | 36.1 | 4.4 |
| 5S | 51.3 | 2.9 | 44.7 | 4 |
| 6S | 53.6 | 3.8 | 44.7 | 4 |
| 7S | 53.6 | 3.8 | 44.7 | 5.5 |
| 8S | 62.7 | 4 | 53.6 | 4.5 |
| 9S | 62.7 | 4 | 53.6 | 5.5 |
Aplikasi:PTO Agricultural Drive Shaft Tube (PTO)
Informasi produk:
| Bahan: | SAE1010, SAE1020, SAE1035, SAE1045, ST37.0, ST44, ST52, E235, E355 |
| Kelas: | BS, JIS, GB, DIN, ASTM, API, |
| Bentuk: | Lemon |
| Ketebalan dinding: | 0.5-50mm |
| Panjangnya: | hingga 12m, atau sesuai dengan kebutuhan pelanggan. |
| Diameter luar: | Bulat: 5-420mm |
| Diameter dan ketebalan dinding bisa sesuai permintaan pelanggan. | |
| Teknologi: | Ditarik dingin/Dilapisi dingin |
| Pengolahan permukaan: | dicat,digalvanisasi,atau dicelupkan minyak sesuai dengan kebutuhan pelanggan |
| Aplikasi: | Pencahayaan, perabotan, peralatan medis |
| Tempat asal: | Cina |
| Aplikasi | Struktur mekanik, Mesin tekanan karbon dll. |

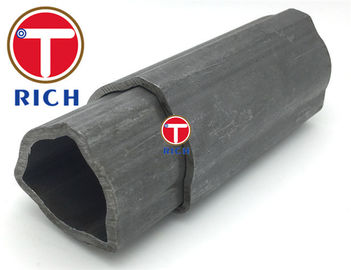

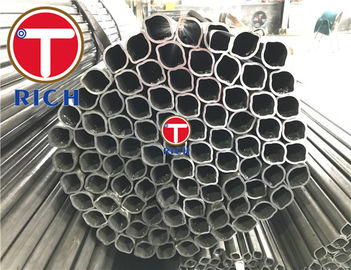

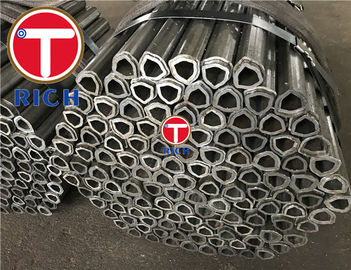

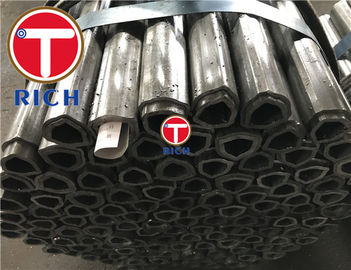

Gambar:
Uji arus eddy dan uji ultrasonik:
Kemasan:
