Astm A269 Standar Tabung Stainless Steel Mulus Untuk Transportasi Udara Laut
Properti Dasar
Tempat Asal:
Cina
Nama merek:
TORICH
Sertifikasi:
SO9001:2008 ，TS16949
Nomor Model:
TP201 TP304 TP304L
Properti Perdagangan
Jumlah Pesanan Minimum:
1 TON
Harga:
Dapat dinegosiasikan
Ketentuan Pembayaran:
T / T, L / C, D / A, D / P, Western Union, MoneyGram
Kemampuan Penyediaan:
6000ton
Ringkasan Produk
ASTM A269 TP201 TP304 TP304L tabung stainless steel tanpa jahitan Jangkauan ukuran:KTP.≥6.4mm W.T.≥0,51mm L: sesuai dengan kebutuhan pelanggan Kelas baja dan komposisi kimia: Kelas dan komposisi kimia % C Ya. Mn P≤ S≤ Cr Mo Tidak lainnya 201 ≤ 0.15 ≤ 1.00 5.5-7.5 0.06 0.03 16-18 - 3.5-5.5 N ≤ 0.25 ...
Rincian produk
Menyoroti:
stainless steel putaran tabung
,diameter besar tabung baja stainless
Product Name:
Seamless Stainless Steel Tube
Standard:
ASTM A269
Material:
TP201 TP304 TP304L
Type:
Mulus
Terms Of Trade:
FOB atau CIF
Brand:
UNTUK KAYA
Transportation:
Laut, udara
Certificate:
ISO9001, TS16949
End Protector:
Polos
MTC:
En10204.3.2B
Deskripsi Produk

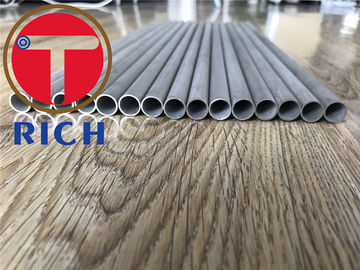

ASTM A269 TP201 TP304 TP304L tabung stainless steel tanpa jahitan
Jangkauan ukuran:KTP.≥6.4mm W.T.≥0,51mm L: sesuai dengan kebutuhan pelanggan
Kelas baja dan komposisi kimia:
| Kelas dan komposisi kimia % | |||||||||
| C | Ya. | Mn | P≤ | S≤ | Cr | Mo | Tidak | lainnya | |
| 201 | ≤ 0.15 | ≤ 1.00 | 5.5-7.5 | 0.06 | 0.03 | 16-18 | - | 3.5-5.5 | N ≤ 0.25 |
| 202 | ≤ 0.15 | ≤ 1.00 | 7.5-10.0 | 0.06 | 0.03 | 17-19 | - | 4.0-6.0 | N ≤ 0.25 |
| 301 | ≤ 0.15 | ≤ 1.00 | ≤ 2.00 | 0.045 | 0.03 | 16-18 | - | 6.0-8.0 | - |
| 302 | ≤ 0.15 | ≤ 1.00 | ≤ 2.00 | 0.045 | 0.03 | 17-19 | - | 8-10.0 | - |
| 303 | ≤ 0.15 | ≤ 1.00 | ≤ 2.00 | 0.2 | ≥ 0.015 | 17-19 | ≤ 0.6 | 8.0-10.0 | - |
| 304 | ≤ 0.08 | ≤ 1.00 | ≤ 2.00 | 0.045 | 0.03 | 18-20 | - | 8-10.5 | - |
| 304L | ≤ 0.03 | ≤ 1.00 | ≤ 2.00 | 0.045 | 0.03 | 18-20 | - | 9-13 | - |
| 305 | ≤ 0.12 | ≤ 1.00 | ≤ 2.00 | 0.045 | 0.03 | 17-19 | - | 10.5-13 | - |
| 309S | ≤ 0.08 | ≤ 1.00 | ≤ 2.00 | 0.045 | 0.03 | 22-24 | - | 12-15 | - |
| 310S | ≤ 0.08 | ≤ 1.5 | ≤ 2.00 | 0.045 | 0.03 | 24-26 | - | 19-22 | - |
| 316 | ≤ 0.08 | ≤ 1.00 | ≤ 2.00 | 0.045 | 0.03 | 16-18 | 2-3 | 10-14 | - |
| 316L | ≤ 0.03 | ≤ 1.00 | ≤ 2.00 | 0.045 | 0.03 | 16-18 | 2-3 | 12-15 | - |
| 317 | ≤ 0.08 | ≤ 1.00 | ≤ 2.00 | 0.045 | 0.03 | 18-20 | 3-4 | 11-15 | - |
| 317L | ≤ 0.03 | ≤ 1.00 | ≤ 2.00 | 0.045 | 0.03 | 18-20 | 3-4 | 11-15 | - |
| 321 | ≤ 0.08 | ≤ 1.00 | ≤ 2.00 | 0.045 | 0.03 | 17-19 | - | 9-13 | Ti ≥ 5 × C |
| 405 | ≤ 0.08 | ≤ 1.00 | ≤ 1.00 | 0.04 | 0.03 | 11.5-14.5 | - | ≤ 0.6 | AL0.1-0.3 |
| 420F | 0.26-0.4 | ≤ 1.00 | ≤ 1.25 | 0.06 | ≥ 0.15 | 12-14 | ≤ 0.6 | ≤ 0.6 | - |
| 430 | ≤ 0.12 | ≤ 0.75 | ≤ 1.00 | 0.04 | 0.03 | 16-18 | - | ≤ 0.6 | |
Pembuatan:
Tabung dibuat dengan proses yang mulus.
Pada pilihan produsen, tabung dapat dilengkapi baik panas selesai atau dingin selesai.
Kondisi permukaan:
Tabung-tabung ini harus disiram tanpa skala.
Uji dan Pemeriksaan:
- Tes Mekanis
- Tes ketegangan
- Tes pembakaran
- Uji Flange
- Uji terbalik
- Tes Kekerasan
- Uji listrik hidrostatik atau tidak merusak
