TORICH GB / T12770 Tabung Stainless Steel Dilas untuk Struktur Mesin
Rincian produk
stainless steel putaran tabung
,stainless tube steel
| Standar | GB/T12770 |
| Bahan | 0Cr18Ni9, 00Cr19Ni10, 0Cr17Ni12Mo2, 00Cr17Ni4Mo2 dll |
| Ukuran | OD: 8-630mm WT: 0.3-16mm Panjang: 4-8m |
| Kondisi Pengiriman | W, T, WC, SP |
| Tes | Uji lentur, uji pembakaran, uji flange, uji korosi intergranular, uji tidak merusak |
| Aplikasi | Bagian Mekanis dan Struktur Mesin |
Persyaratan Kimia
| Kelas | C | Ya. | Mn | P | S | Tidak | Cr | Mo | lainnya |
| 1Cr18Ni9 | ≤ 0.15 | ≤ 1.00 | ≤ 2.00 | ≤ 0.035 | ≤ 0.030 | 8.00-10.00 | 17.00-19.00 | | |
| 0Cr18Ni9 | ≤ 0.07 | ≤ 1.00 | ≤ 2.00 | ≤ 0.035 | ≤ 0.030 | 8.00-11.00 | 17.00-19.00 | | |
| 00Cr19Ni10 | | ≤ 1.00 | ≤ 2.00 | ≤ 0.035 | ≤ 0.030 | 8.00-12.00 | 18.00-20.00 | | |
| 0Cr25Ni20 | | ≤ 1.00 | ≤ 2.00 | ≤ 0.035 | ≤ 0.030 | 19.00-22.00 | 24.00-26.00 | | |
| 0Cr17Ni12Mo2 | | ≤ 1.00 | ≤ 2.00 | ≤ 0.035 | ≤ 0.030 | 10.00-14.00 | 16.00-18.00 | 2.00-3.00 | |
| 00Cr17Ni14Mo2 | | ≤ 1.00 | ≤ 2.00 | ≤ 0.035 | ≤ 0.030 | 12.00-15.00 | 16.00-18.00 | 2.00-3.00 | |
| 0Cr18Ni10Ti | | ≤ 1.00 | ≤ 2.00 | ≤ 0.035 | ≤ 0.030 | 9.00-12.00 | 17.00-19.00 | | Ti≥5XC% |
| Kelas | RP 0,2/MPa | Kekuatan tarik/MPa | Elongasi % | |
| | Pengolahan Panas | Pengolahan Tanpa Panas | ||
| menit | ||||
| 1Cr18Ni9 | 210 | 520 | 35 | 25 |
| 0Cr18Ni9 | 210 | 520 | ||
| 00Cr19Ni10 | 180 | 180 | ||
| 0Cr25Ni20 | 210 | 520 | ||
| 0Cr17Ni12Mo2 | 210 | 520 | ||
| 00Cr17Ni14Mo2 | 180 | 480 | ||
| 0Cr18Ni10Ti | 210 | 520 | ||

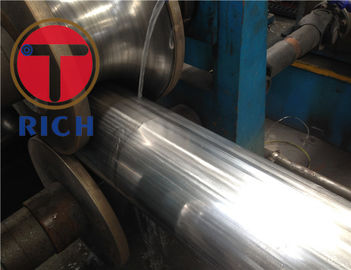

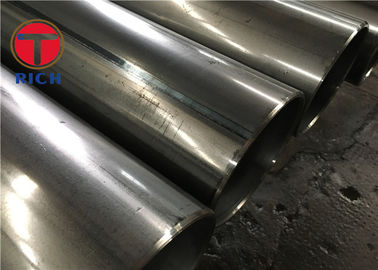

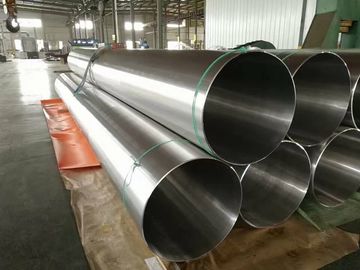

Pameran Produk
KONTROL KUALITAS:
1. Inspeksi bahan baku yang masuk
2. Pengelompokan bahan baku untuk menghindari campuran kelas baja
3. Pemanasan dan Hammering End untuk Cold Drawing
4. Menggambar dingin dan penggulung dingin, pemeriksaan di jalur
5Pengolahan panas, +A, +SRA, +LC, +N, Q+T
6. Straightening-Motong ke panjang yang ditentukan-Selesai Pengukuran Inspeksi
7. Pengujian mekanik di laboratorium sendiri dengan kekuatan tarik, kekuatan hasil, elongasi, kekerasan, dampak, mikrostruktur dll
8Pengemasan dan Pengepakan
100% dari tabung baja kami diperiksa dimensi
100% tabung baja kami diperiksa secara visual untuk memastikan mereka memiliki kondisi permukaan yang sempurna dan tidak ada cacat permukaan.
Uji arus pusaran 100% dan uji ultrasonik untuk menghilangkan cacat longitudinal dan transversal.
T: Apakah Anda perusahaan dagang atau produsen?
A: Penemu profesional pipa baja, produsen dan penyedia solusi
T: Berapa lama waktu pengiriman Anda?
A: Umumnya adalah 7-14 hari jika barang ada di stok. atau 30-60 hari jika barang tidak ada di stok, tergantung pada kuantitas.
T: Apakah Anda menyediakan sampel tabung baja tahan karat? apakah itu gratis atau tambahan?
A: Ya, kami bisa menawarkan sampel gratis tetapi perlu membayar biaya pengiriman.
T: Apa syarat pembayaran Anda?
A: Pembayaran <=1000USD, 100% di muka. Pembayaran>=1000USD, 30% T / T di muka, saldo sebelum pengiriman.
