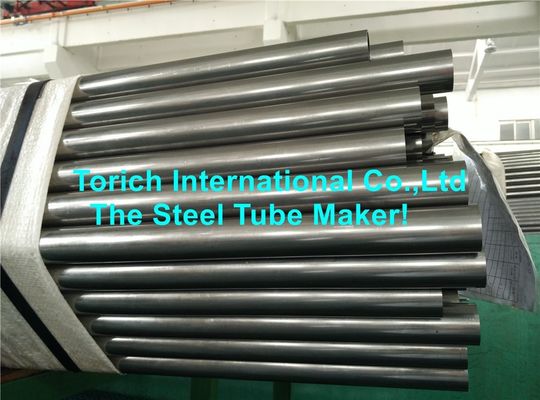

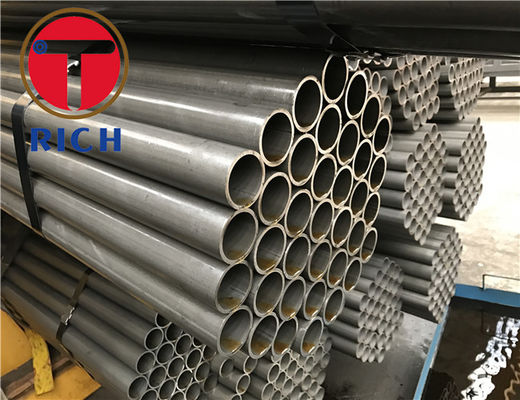

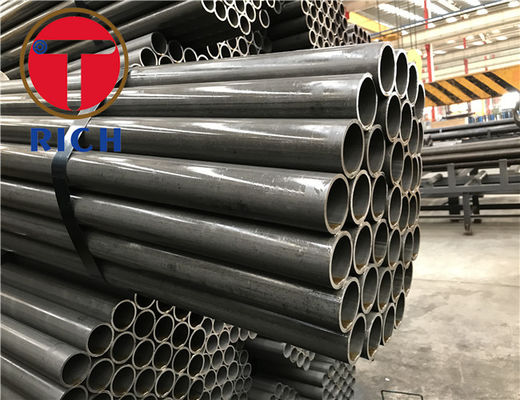

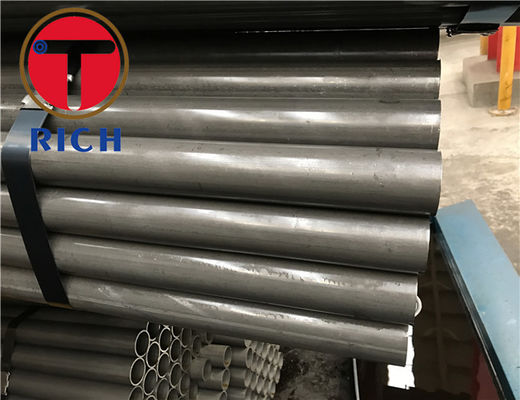

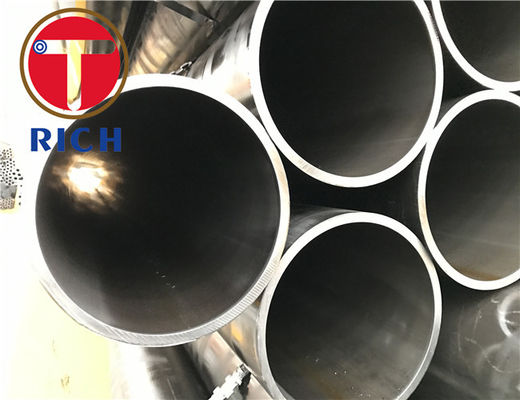

ASTM A213 Acar Cold Rolled Annealed Tube Boiler / Penukar Panas
Properti Dasar
Tempat Asal:
Cina
Nama merek:
Torich
Sertifikasi:
ISO9001
Nomor Model:
ASTM A213
Properti Perdagangan
Jumlah Pesanan Minimum:
1TON
Harga:
$1200-$1500
Ketentuan Pembayaran:
L/C, D/A, D/P, T/T, Western Union
Kemampuan Penyediaan:
5000tons per tahun
Ringkasan Produk
ASTM A213 Boiler/Heat Exchangers Annealed Pickled Stainless Seamless Steel Tube Nama produk Tabung baja boiler Bahan 304 316 T11 T22 Jenis Seamels Standar ASTM A213 Kelas 304, 304L, 316L, 321, 347, 904L Ukuran 5-420 mm Panjang 800 mm - 11800 mm Digunakan Boiler, penukar panas Toleransi untuk tabung ...
Rincian produk
Menyoroti:
stainless tube steel
,diameter besar tabung baja stainless
Standard:
ASTM A213
Grade:
T11, T22
Type:
Mulus
Delivery Condition:
Acar dan Anil
Application:
Boiler dan Penukar Panas
Length:
5.8m atau 6m atau 11.8 atau kebutuhan pelanggan
Deskripsi Produk
ASTM A213 Boiler/Heat Exchangers Annealed Pickled Stainless Seamless Steel Tube
| Nama produk | Tabung baja boiler |
| Bahan | 304 316 T11 T22 |
| Jenis
| Seamels |
| Standar | ASTM A213 |
| Kelas | 304, 304L, 316L, 321, 347, 904L |
| Ukuran | 5-420 mm |
| Panjang | 800 mm - 11800 mm |
| Digunakan | Boiler, penukar panas |
Toleransi untuk tabung boiler stainless steel tanpa jahitan:
| Metode Produksi | Ukuran ((mm) | Toleransi | |
| Hot Rolling (Ekstrusi) | OD | ≤ 140 | ± 1,25% |
| > 140 | ± 1,0% | ||
| WT | ≤10 | ± 12,5% | |
| > 10 | ± 15% | ||
| Ditarik dingin ((Dilapisi dingin)) | OD | 8 ~ 30 | ±0,20mm |
| > 30 ~ 50 | ± 0,30mm | ||
| > 50 | ± 0,8% | ||
| WT | 1.0~3 | +12% -10% | |
| > 3.0 | ± 10 | ||
316 stainless steel.Komposisi
| Kelas | C | Mn | Ya. | P | S | Cr | Mo | Tidak | N | |
|---|---|---|---|---|---|---|---|---|---|---|
| 316 | Min | - | - | - | 0 | - | 16.0 | 2.00 | 10.0 | - |
| Maksimal | 0.08 | 2.0 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | 0.10 | |
| 316L | Min | - | - | - | - | - | 16.0 | 2.00 | 10.0 | - |
| Maksimal | 0.03 | 2.0 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | 0.10 | |
| 316H | Min | 0.04 | 0.04 | 0 | - | - | 16.0 | 2.00 | 10.0 | - |
| maksimal | 0.10 | 0.10 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | - |
Sifat Mekanis
| Kelas | Tensile Str (MPa) min | Hasil Str 0,2% Proof (MPa) min | Panjang (% dalam 50 mm) min | Kekerasan | |
|---|---|---|---|---|---|
| Rockwell B (HR B) maksimal | Brinell (HB) maksimal | ||||
| 316 | 515 | 205 | 40 | 95 | 217 |
| 316L | 485 | 170 | 40 | 95 | 217 |
| 316H | 515 | 205 | 40 | 95 | 217 |
| Kelas | Kapadatan ((kg/m)3) | Modulus elastis (GPa) | Rata-rata Koefek Ekspansi Termal (μm/m/°C) | Konduktivitas termal (W/m.K) | Panas spesifik 0-100 °C (J/kg.K) | Resistensi listrik (nΩ.m) | |||
|---|---|---|---|---|---|---|---|---|---|
| 0-100 °C | 0-315 °C | 0-538 °C | Pada 100 °C | Pada 500 °C | |||||
| 316/L/H | 8000 | 193 | 15.9 | 16.2 | 17.5 | 16.3 | 21.5 | 500 | 740 |
Sifat mekanik
Pengolahan panas dari sifat mekanik longitudinal pipa baja harus sesuai dengan standar.
| Bahan | Kekuatan tarik MPa ≥ | Kekuatan hasil MPa ≥ | Perpanjangan % ≥ |
| 0Cr18Ni9 | 520 | 205 | 35 |
| 1Cr19Ni9 | 520 | 205 | 35 |
| 0Cr19Ni10 | 480 | 175 | 35 |
| 1Cr18Ni9Ti | 550 | 205 | 40 |
| 0Cr18Ni12Mo2Ti | 530 | 205 | 35 |
| 0Cr26Ni5Mo2 | 590 | 390 | 18 |
| 1Cr17 | 410 | 245 | 20 |
| 00Cr27Mo | 410 | 245 | 20 |
| 1Cr25Ti | 440 | 245 | 17 |
Kekerasan:
Untuk tabung yang W.T ≥ 2 mm, tes kekerasan Rockwell harus dilakukan.
Uji tabung boiler tanpa jahitan:
1.Pengujian lentur:
Tabung harus menjalani uji lentur ketika OD ≤22mm. Sudut lentur adalah 90 derajat, dan jari-jari lentur adalah 6 kali diameter luar tabung baja.
2. Uji hidraulik;
Pengujian eddy current, pengujian ultrasonik dapat digunakan sebagai pengganti pengujian hidrolik.C8 harus diikuti.
3. Tes perataan
4. Uji Flanging
5. Ekspansi tes
