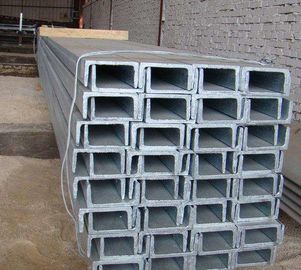

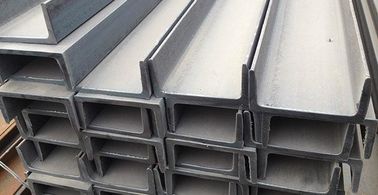

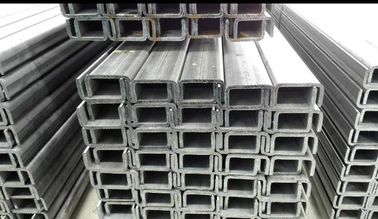

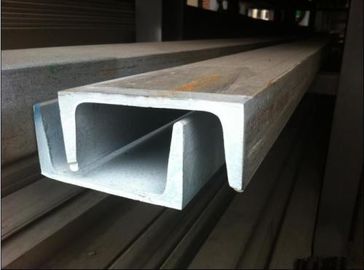

S275 Tabung Baja Struktural Untuk Proyek Konstruksi, Balok Baja Struktural U Channel Q235B
Rincian produk
Tabung Baja struktural
,cold formed steel tube
| Tabel saat ini mewakili saluran U (UPN, UNP) standar Eropa, profil baja UPN (balok UPN), spesifikasi, properti, dimensi. Diproduksi sesuai dengan standar: | |||||||||
| DIN 1026-1: 2000, NF A 45-202: 1986 EN 10279: 2000 (Toleransi) EN 10163-3: 2004, kelas C, subclass 1 (Kondisi permukaan) STN 42 5550 CTN 42 5550 TDP: STN 42 0135 | |||||||||
 | |||||||||
| Identifikasi | Berat nominal 1 m | Dimensi nominal | Persilangan | Dimensi untuk perincian | |||||
| UNP | b | h | s | t = R1 | R2 | e | SEBUAH | d | |
kg / m | mm | cm2 | mm | ||||||
| UPN 30 | 4,27 | 33 | 30 | 5,0 | 7,0 | 3,5 | - | 5,4 | - |
| UPN 40x20 | 2,86 | 20 | 40 | 5,0 | 5,5 | 2,5 | - | 3,7 | - |
| UPN 40 | 4,87 | 35 | 40 | 5,0 | 3,5 | 7,0 | - | 6,2 | - |
| UPN 50 | 5.59 | 38 | 50 | 5,0 | 7,0 | 3,5 | 13,7 | 7,12 | 21 |
| UPN 65 | 7,09 | 42 | 65 | 5,5 | 7,5 | 4,0 | 14,2 | 9,03 | 34 |
| UPN 80 | 8,64 | 45 | 80 | 6,0 | 8,0 | 4,0 | 14,5 | 11,00 | 47 |
| UPN 100 | 10,6 | 50 | 100 | 6,0 | 8,5 | 4,5 | 15,5 | 13,50 | 64 |
| UPN 120 | 13,4 | 55 | 120 | 7,0 | 9,0 | 4,5 | 16 | 17,00 | 82 |
| UPN 140 | 16,0 | 60 | 140 | 7,0 | 10,0 | 5,0 | 17,5 | 20,40 | 98 |
| UPN 160 | 18,8 | 65 | 160 | 7,5 | 10,5 | 5,5 | 18,4 | 24,00 | 115 |
| UPN 180 | 22,0 | 70 | 180 | 8,0 | 11,0 | 5,5 | 19,2 | 28,00 | 133 |
| UPN 200 | 25,3 | 75 | 200 | 8,5 | 11,5 | 6,0 | 20,1 | 32,20 | 151 |
| UPN 220 | 29,4 | 80 | 220 | 9,0 | 12,5 | 6,5 | 21,4 | 37,40 | 167 |
| UPN 240 | 33,2 | 85 | 240 | 9,5 | 13,0 | 6,5 | 22,3 | 42,30 | 184 |
| UPN 260 | 37,9 | 90 | 260 | 10,0 | 14,0 | 7,0 | 23,6 | 48,30 | 200 |
| UPN 280 | 41,8 | 95 | 280 | 10,0 | 15,0 | 7,5 | 25,3 | 53,30 | 216 |
| UPN 300 | 46,2 | 100 | 300 | 10,0 | 16,0 | 8,0 | 27,0 | 58,80 | 232 |
| UPN 320 | 59,5 | 100 | 320 | 14,0 | 17,5 | 8,8 | - | 75,80 | 246 |
| UPN 350 | 60,6 | 100 | 350 | 14,0 | 16,0 | 8,0 | - | 77,30 | 282 |
| UPN 380 | 63,1 | 102 | 380 | 13,5 | 16,0 | 8,0 | - | 80,40 | 313 |
| UPN 400 | 71,8 | 110 | 400 | 14,0 | 18,0 | 9,0 | - | 91,50 | 324 |
Apa Garansi Anda?
1.SO9001: 2008 dan sertifikasi TS16949, SGS, BV, TUV atau inspeksi pihak ketiga lainnya tersedia.
2. Berkualitas tinggi dengan harga yang kompetitif.
3. Teknologi canggih, insinyur yang berpengalaman, sistem mutu ISO untuk jaminan kualitas dan keterlacakan.
Apakah Anda memiliki agen atau distributor di negara kami?
1. Kami merekrut agen area dan distributor di seluruh dunia, selamat datang untuk mengirim email kepada kami atau hubungi kami untuk diskusi detail.
Bagaimana kemampuan produksi Anda?
1.2000 ton kapasitas produksi bulanan, 5000 ton kemampuan perdagangan bulanan
2. pengiriman yang cepat dan tepat waktu
Bagaimana cara mendapatkan sampel?
1. Anda diminta untuk membayar biaya sampel dan biaya kurir dari Cina ke negara Anda; dan sampel gratis sesuai dengan produk seperti ukuran, kelas baja dan kuantitas, silakan berkonsultasi penjualan kami untuk detail
2. Biaya sampel akan dikembalikan ketika pesanan ditempatkan.
Apa jangka waktu pembayaran Anda?
1. T / T: deposit 30% di muka, saldo 70% dibayar sebelum pengiriman
Uang muka 2,30%, saldo 70% dibayarkan terhadap L / C pada pandangan
3. Lanjutkan negosiasi
Siapa pelanggan anda?
1.Stockists, Distributor, Wholesalors, Agen, Pedagang, Pengguna Akhir, dll
-
