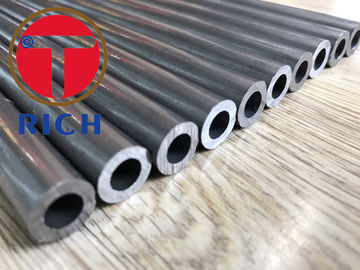

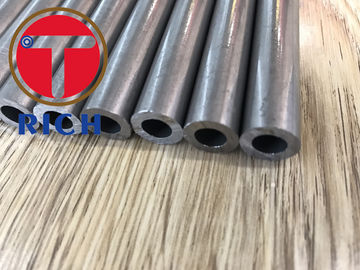

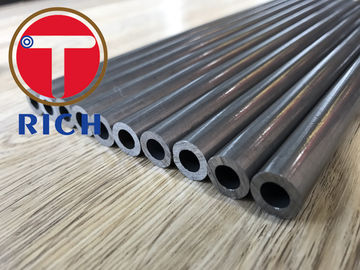

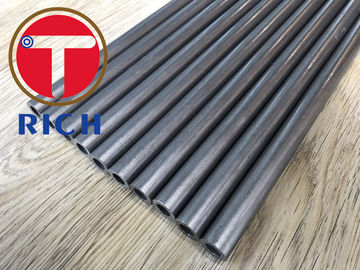

Non-Alloy Precision Steel Tube Baja Hidrolik Pipe Ketebalan 2-30 Mm
Properti Dasar
Tempat Asal:
Zhejiang
Nama merek:
TORICH
Sertifikasi:
ISO
Nomor Model:
ASTM A1020-2002, EN10305-1
Properti Perdagangan
Jumlah Pesanan Minimum:
5 ton
Harga:
USD 850-1200 Per Month
Ketentuan Pembayaran:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Kemampuan Penyediaan:
1000 ton per bulan
Ringkasan Produk
Produksi EN 10305 tabung stainless steel berlapis krom sch80 yang ditarik dingin Standar DIN2391, DIN2445, EN10305, GB/T 3639, GB 8713 Diameter dalam 30mm ~ 250mm Ketebalan dinding 0.5mm~18mm Bahan 10#~45#,16Mn,Q195~Q345,ST35~ST52 Panjang sesuai kebutuhan pelanggan Pengolahan permukaan Seperti yang ...
Rincian produk
Menyoroti:
Presisi pipa baja
,Pipa seamless presisi
Outer Diameter(Round):
30 - 250 mm
Thickness:
2 - 30 mm
Technique:
Dingin ditarik
Alloy Or Not:
Bebas-alloy
Grade:
10 # -45 # st35-st52, q345,
Application::
Silinder hidrolik
Deskripsi Produk
| Produksi | EN 10305 tabung stainless steel berlapis krom sch80 yang ditarik dingin |
| Standar | DIN2391, DIN2445, EN10305, GB/T 3639, GB 8713 |
| Diameter dalam | 30mm ~ 250mm |
| Ketebalan dinding | 0.5mm~18mm |
| Bahan | 10#~45#,16Mn,Q195~Q345,ST35~ST52 |
| Panjang | sesuai kebutuhan pelanggan |
| Pengolahan permukaan | Seperti yang dibutuhkan pelanggan |
| Paket | 1. kemasan bungkus 2. menandai sesuai permintaan pelanggan 3. cat pada pipa sesuai dengan permintaan pelanggan 4. tutup pipa sesuai permintaan pelanggan |
| Min Jumlah pesanan | Menurut kebutuhan pelanggan |
| Syarat pembayaran | L/C, T/T |
| Kontak | Jika Anda memiliki pertanyaan, silakan hubungi saya. |
| Kondisi pengiriman | 1. NBK(+N) setelah pembentukan dingin, akhirnya di atas titik transisi fase, dalam atmosfer pelindung media oksidasi penggilingan 2. GBK ((+A) setelah pembentukan dingin, pengelasan dalam gas pelindung medium non-oksidasi 3. BK(+C) pengolahan panas akhir setelah pembentukan dingin, oleh karena itu pipa baja kecil plastik, tingkat plastik tidak menjamin 4. BKW(+LC) setelah pengolahan panas akhir, sedikit deformasi cold drawing, melanjutkan lagi ketika pemesinan pipa baja diizinkan dalam batas tertentu deformasi dingin ((membengkokkan, membakar) 5. BKS ((+SR) memiliki bantuan stres setelah pembentukan dingin, perawatan panas, pipa baja dapat dilakukan dalam batas tertentu dalam pengolahan yang tepat lagi |
| OD | GB/T3639(GB8713) | DIN2391 ((EN10305) | Toleransi Kita | Kualitas Terbaik |
| 4-30mm | ±0,10mm | ±0.08mm | ±0.05mm | ±0.02mm |
| 31-40mm | ±0.15mm | ±0.15mm | ±0.05mm | ±0.03mm |
| 41-50mm | ±0.20mm | ±0.20mm | ±0.05mm | ±0.03mm |
| 51-60mm | ±0.25mm | ±0.25mm | ±0.08mm | ±0.03mm |
| 61-70mm | ±0.30mm | ±0.30mm | ±0.10mm | ±0.05mm |
| 71-160mm | ±0.30mm | ±0.30mm | ±0.10mm | ±0.05mm |
| Toleransi dalam WT | ±0.12mm | ±0.10mm | ±0.05mm | ±0.03mm |
| Proses | Diameter | Panjang | Keakuratan | Kerontokan Lubang Dalam |
| Dilapisi dingin | 30-100mm | ≤ 12 m | H8-H10 | 0.4-1.6 |
| Pembuatan dingin | 30-250mm | ≤ 12 m | H8-H10 | 0.8-1.6 |
| Pengeringan | 40-500mm | ≤ 12 m | H8-H9 | 0.4-0.8 |
| Penggulung | 40-400 mm | ≤ 7 m | H8 | 0.4 |
| Diameter dalam | H8 | H9 | H10 | |
| 30 mm | ± 0.033 | ± 0.052 | ± 0.084 | 5-30mm |
| 30-50 mm | ± 0.039 | ± 0.062 | ± 0.100 | ±0.080 |
| 50 sampai 80 mm | ± 0.046 | ± 0.074 | ± 0.120 | |
| 80-120mm | ± 0.054 | ± 0.087 | ± 0.140 | |
| 120-180 mm | ± 0.063 | ± 0.100 | ± 0.160 | |
| 180-250mm | ± 0.072 | ± 0.115 | ± 0.185 | |
| 250-315 mm | ± 0.081 | ± 0.130 | ± 0.210 | |
| 315-400mm | ± 0.089 | ± 0.140 | ± 0.230 |
