ASTM A213 Tabung Stainless Steel Seamless U Berbentuk Penukar Panas
Properti Dasar
Tempat Asal:
Cina
Nama merek:
TORICH
Sertifikasi:
ISO9001, TS16949
Nomor Model:
ASTM A213
Properti Perdagangan
Jumlah Pesanan Minimum:
3tons
Harga:
Dapat dinegosiasikan
Ketentuan Pembayaran:
T / T, L / C, D / A, D / P, Western Union, MoneyGram
Kemampuan Penyediaan:
60000ton / tahun
Ringkasan Produk
ASTM A213 tabung penukar panas stainless yang berbentuk U Jangkauan ukuran:OD:6-127mm, WT:0.5-12mm, Panjang: max12000mm Bahan: Kelas:T12 TP304 TP304L TP316 TP316L TP317 Pembuatan: Tabung harus dibuat dengan proses tanpa jahitan dan harus selesai panas atau selesai dingin. SA213 pipa baja panjang, ...
Rincian produk
Menyoroti:
stainless steel putaran tabung
,diameter besar tabung baja stainless
Product Name:
Tabung Penukar Panas Berbentuk U
Standard:
ASTM A213, SA213
Technique:
Hasil akhir panas, hasil akhir yang dingin
Section Shape:
Bulat
Certification:
ISO9001, TS16949
Alloy Or Not:
Paduan Feritik
Secondary Or Not:
Non-sekunder
Special Tube:
Tabung penukar panas
Surface:
diminyaki
Hea Treatment:
Anil penuh atau isotermal
Deskripsi Produk

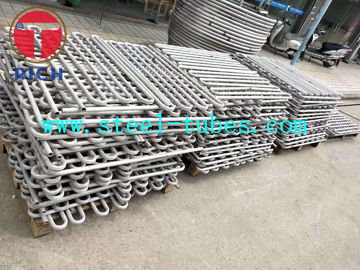

ASTM A213 tabung penukar panas stainless yang berbentuk U
Jangkauan ukuran:
OD:6-127mm, WT:0.5-12mm, Panjang: max12000mm
Bahan:
Kelas:T12 TP304 TP304L TP316 TP316L TP317
Pembuatan:
Tabung harus dibuat dengan proses tanpa jahitan dan harus selesai panas atau selesai dingin.
SA213 pipa baja panjang, membuat ke U membungkuk tabung untuk boiler dan penukar panas.
Heater tabung U tabung dengan stainless steel, baja paduan tersedia, baja karbon juga tersedia.
Sifat Mekanis:
| Bahan | Sifat Mekanis | ||
| Kekuatan tarik ≥ MPa | Kekuatan output ≥ MPa | Elongasi ≥ % | |
| T12 | 415 | 220 | 30 |
| TP304 | 515 | 205 | 35 |
| TP304L | 458 | 170 | 35 |
| TP316 | 515 | 205 | 35 |
| TP316L | 485 | 170 | 35 |
| TP317 | 515 | 205 | 35 |
| TP317L | 515 | 205 | 35 |
| TP321 | 515 | 205 | 35 |
Kemasan:
Dengan struktur kayu yang kuat kotak pengemasan oleh kontainer loading dan pengiriman.
