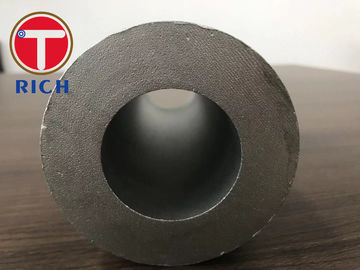

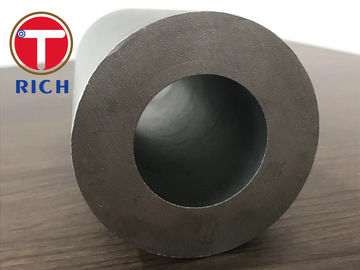

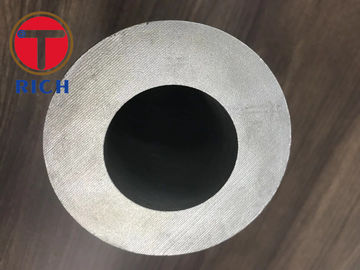

ASTM A312 Pipa Dinding Stainless Steel Mulus Tebal
Properti Dasar
Tempat Asal:
Cina
Nama merek:
TORICH
Sertifikasi:
ISO9001, TS16949
Nomor Model:
ASTM A312
Properti Perdagangan
Jumlah Pesanan Minimum:
3tons
Harga:
Dapat dinegosiasikan
Ketentuan Pembayaran:
T / T, L / C, D / A, D / P, Western Union, MoneyGram
Kemampuan Penyediaan:
60000ton / tahun
Ringkasan Produk
ASTM A312 pipa baja tahan karat tanpa lapisan Pipa stainless steel ber dinding tebal tanpa jahitan untuk aplikasi kimia, minyak bumi, biologi, pembuatan kertas dan pembuatan kapal Jangkauan ukuran:OD:21.3-711mm WT: SCH5/SCH10/SCH40/SCH80/SCH160/XXS ((1.65mm-30.75mm) Panjang: maksimal 12000mm Bahan: ...
Rincian produk
Menyoroti:
stainless steel putaran tabung
,diameter besar tabung baja stainless
Product Name:
Pipa Stainless Steel Dinding Tebal Mulus
Standard:
ASTM A312
Technique:
Hasil akhir panas, hasil akhir yang dingin
Section Shape:
Bulat
Certification:
ISO9001, TS16949
Alloy Or Not:
Tahan karat
Secondary Or Not:
Non-sekunder
Special Tube:
Pipa Stainless Steel Dinding Tebal
Surface:
diminyaki
Hea Treatment:
Anil penuh atau isotermal
Deskripsi Produk
ASTM A312 pipa baja tahan karat tanpa lapisan
Pipa stainless steel ber dinding tebal tanpa jahitan untuk aplikasi kimia, minyak bumi, biologi, pembuatan kertas dan pembuatan kapal
Jangkauan ukuran:
OD:21.3-711mm
WT: SCH5/SCH10/SCH40/SCH80/SCH160/XXS ((1.65mm-30.75mm)
Panjang: maksimal 12000mm
Bahan:
Kelas:T12 TP304 TP304L TP316 TP316L TP317
Pembuatan:
Pipa harus dibuat dengan proses tanpa jahitan dan harus selesai panas atau selesai dingin.
Pipa harus bebas dari skala dan partikel-partikel besi eksogen yang mencemari.Pembeli diizinkan untuk meminta bahwa perawatan pasivasi diterapkan pada pipa siap.
Sifat Mekanis:
| Bahan | Sifat Mekanis | ||
| Kekuatan tarik ≥ MPa | Kekuatan output ≥ MPa | Elongasi ≥ % | |
| T12 | 415 | 220 | 30 |
| TP304 | 515 | 205 | 35 |
| TP304L | 458 | 170 | 35 |
| TP316 | 515 | 205 | 35 |
| TP316L | 485 | 170 | 35 |
| TP317 | 515 | 205 | 35 |
| TP317L | 515 | 205 | 35 |
| TP321 | 515 | 205 | 35 |
Kemasan:
Dengan struktur kayu yang kuat kotak pengemasan oleh kontainer loading dan pengiriman.
