ASTM A106 A53 API 5L Tabung baja karbon mulus untuk layanan suhu tinggi
Properti Dasar
Tempat Asal:
Zhejiang
Nama merek:
TORICH
Sertifikasi:
ISO
Nomor Model:
ASTM A106 A53
Properti Perdagangan
Jumlah Pesanan Minimum:
5 ton
Harga:
Dapat dinegosiasikan
Ketentuan Pembayaran:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Kemampuan Penyediaan:
1000 ton per bulan
Ringkasan Produk
Deskripsi produk: Pipa Baja Struktural Pipa Karbon Baja Tanpa Sambungan Pipa Baja Struktural, ASTM A106 A53 API 5L Tabung Baja Karbon ASTM A106 A53 API 5L Tabung baja karbon tanpa jahitan untuk layanan suhu tinggi Aplikasi: untuk layanan suhu tinggi Rentang ukuran: O.D.:6-168mm W.T.:1-15mm L...
Rincian produk
Menyoroti:
ditarik tabung mulus dingin
,dingin ditarik tabung
Surface Treatment:
diminyaki
Type:
Mulus
Application:
Struktur pipa
End Protector:
Plain End / Beveled End
Length:
Max12000mm
Material:
Baja karbon
Deskripsi Produk
Deskripsi produk:
Pipa Baja Struktural Pipa Karbon Baja Tanpa Sambungan
Pipa Baja Struktural, ASTM A106 A53 API 5L Tabung Baja Karbon
ASTM A106 A53 API 5L Tabung baja karbon tanpa jahitan untuk layanan suhu tinggi
Aplikasi: untuk layanan suhu tinggi
Rentang ukuran: O.D.:6-168mm W.T.:1-15mm L:max12000mm
Kelas baja dan komposisi kimia:
| Baja Kelas | C | Mn | P | S | Ya. | Cr | Cu | Mo | Tidak | V |
| maksimal | maksimal | maksimal | menit | maksimal | maksimal | maksimal | maksimal | maksimal | ||
| A | 0.25 | 0.27 ~ 0.93 | 0.035 | 0.035 | 0.10 | 0.40 | 0.40 | 0.15 | 0.40 | 0.08 |
| B | 0.30 | 0.27 ~ 1.06 | 0.035 | 0.035 | 0.10 | 0.40 | 0.40 | 0.15 | 0.40 | 0.08 |
| C | 0.35 | 0.27 ~ 1.06 | 0.035 | 0.035 | 0.10 | 0.40 | 0.40 | 0.15 | 0.40 | 0.08 |
| Kelas | Kekuatan tarik Mpa | Titik Hasil Mpa | Perpanjangan % |
| A | ≥330 | ≥205 | 20 |
| B | ≥415 | ≥ 240 | 20 |
| C | ≥ 485 | ≥ 275 | 20 |

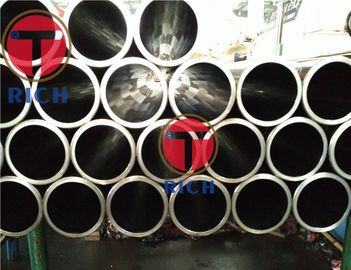

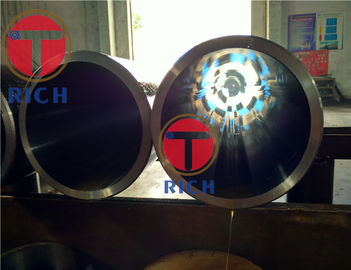

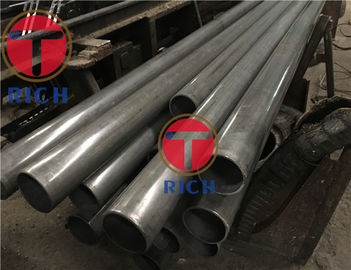

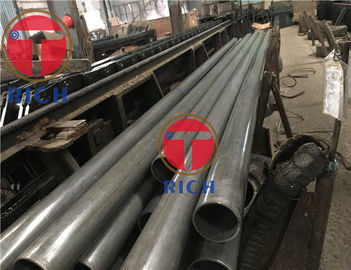

Produksi tabung baja:
Uji arus eddy dan uji ultrasonik:
Kemasan:
