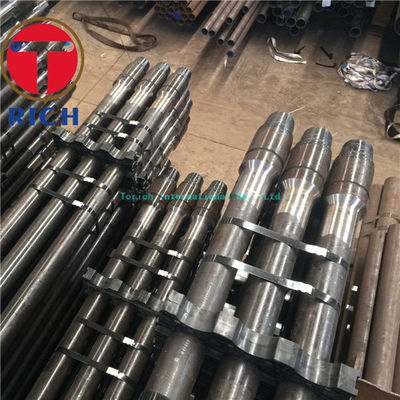

Bor Pipa Casing Seamless API SPEC 5D
Properti Dasar
Tempat Asal:
Cina
Nama merek:
Torich
Sertifikasi:
ISO 9001 TS16949
Nomor Model:
API Spec 5D
Properti Perdagangan
Jumlah Pesanan Minimum:
5 PC
Harga:
200-500USD/pc
Ketentuan Pembayaran:
L/C, T/T
Kemampuan Penyediaan:
1000 ton per bulan
Ringkasan Produk
Pengeboran tanpa jahitanCasingPipaAPI SPEC 5D Detil cepat: Standar Spesifikasi API 5D Bahan G105 Panjang R1 R2 R3 Tipe terbalik EU IEU Jenis benang NC26 NC31 NC38 Asal usul Cina Deskripsi: Fitur: * Keakuratan tinggi dalam ukuran dan bentuk * Ketahanan suhu rendah yang baik * Sifat mekanik yang ...
Rincian produk
Menyoroti:
pipa bor minyak
,pipa baja ditarik dingin
Stanard:
Spesifikasi API 5D
Material:
G105
Length:
R1 R2 R3
Upset Type:
EU IEU
Thread Type:
NC26 NC31 NC38
Origin:
Cina
Deskripsi Produk
Pengeboran tanpa jahitanCasingPipaAPI SPEC 5D
Detil cepat:
| Standar | Spesifikasi API 5D |
| Bahan | G105 |
| Panjang | R1 R2 R3 |
| Tipe terbalik | EU IEU |
| Jenis benang | NC26 NC31 NC38 |
| Asal usul | Cina |
Deskripsi:
Fitur:
* Keakuratan tinggi dalam ukuran dan bentuk
* Ketahanan suhu rendah yang baik
* Sifat mekanik yang sangat baik
* Kekuatan koneksi dan ketebalan yang tinggi
* Diameter dalaman besar dari sendi alat
* Resistensi torsi tinggi
* Kekuatan kelelahan yang tinggi dan umur kelelahan yang panjang
89mmspesifikasi pipa bor standar:
| Ukuran pipa | PPF | Pipa OD | Ketebalan dinding | Kelas | Kecewa. jenis | RSC jenis | OD sendi alat | ID sendi alat | ||||
| dalam | Lb/ft | dalam | mm | dalam | mm | dalam | mm | dalam | mm | |||
| 3 1/2 | 13.3 | 3.500 | 88.90 | 0.368 | 9.35 | E | Uni Eropa | NC38 (3 1/2 IF) | 4 3/4 | 120.70 | 2 11/16 | 68.26 |
| X | 5.0 | 127.0 | 2 9/16 | 65.09 | ||||||||
| G | 2 7/16 | 61.91 | ||||||||||
| S | 2 1/8 | 53.98 | ||||||||||
| 15.5 | 0.449 | 11.4 | E | Uni Eropa | NC38 (3 1/2 IF) | 2 9/16 | 65.09 | |||||
| X | 2 7/16 | 61.91 | ||||||||||
| G | 2 1/8 | 53.98 | ||||||||||
| S | IEU | NC40 ((4FH) | 5 1/2 | 139.70 | 2 1/2 | 57.15 | ||||||
Aplikasi:
