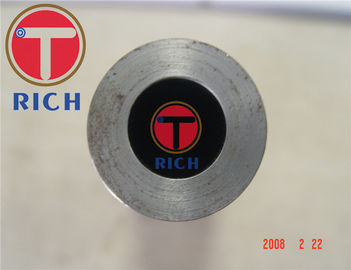

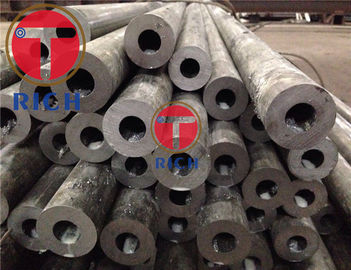

Dingin Diambil / Panas Bergulir Tabung Baja Mulus Untuk Mesin 1010 1020 1045
Properti Dasar
Tempat Asal:
Cina
Nama merek:
TORICH
Sertifikasi:
ISO9001, TS16949
Nomor Model:
GBT 8163
Properti Perdagangan
Jumlah Pesanan Minimum:
5tons
Harga:
Dapat dinegosiasikan
Ketentuan Pembayaran:
T / T, L / C, D / A, D / P, Western Union, MoneyGram
Kemampuan Penyediaan:
60000ton / tahun
Ringkasan Produk
Dingin Diambil / Hot Bergulir Tabung Baja Mulus Untuk Mesin Memproduksi: Hot Rolling & Cold Drawn Toleransi dari OD & WT: Toleransi OD: Metode produksi Toleransi OD Hot Rolling (Ekstrusi) ± 1% atau ± 0,50mm Cold Drawn (Cold Rolled) ± 1% atau ± 0,30mm Toleransi untuk ketebalan dinding: 1. toleransi ...
Rincian produk
Menyoroti:
Pipa baja mulus
,Seamless Carbon Steel tube
Product Name:
Tabung Baja Seamless Cold Drawn / Hot Rolling
Standard:
GBT 8163
Technique:
Cold Drawn / Hot Rolling
Section Shape:
Bulat
Certification:
ISO9001, TS16949
Alloy Or Not:
Bebas-alloy
Secondary Or Not:
Non-sekunder
Special Tube:
Tabung baja mulus
Surface:
diminyaki
Shipment:
Laut, udara
Deskripsi Produk
Dingin Diambil / Hot Bergulir Tabung Baja Mulus Untuk Mesin
Memproduksi: Hot Rolling & Cold Drawn
Toleransi dari OD & WT:
Toleransi OD:
Memproduksi: Hot Rolling & Cold Drawn
Toleransi dari OD & WT:
Toleransi OD:
| Metode produksi | Toleransi OD |
| Hot Rolling (Ekstrusi) | ± 1% atau ± 0,50mm |
| Cold Drawn (Cold Rolled) | ± 1% atau ± 0,30mm |
Toleransi untuk ketebalan dinding:
1. toleransi ketebalan dinding Panas Bergulir tabung baja:
| Metode produksi | OD (DN) | WT / OD | Toleransi |
| Tabung diekstrusi | ≤102 | / | ± 12,5% atau ± 0,40mm |
| > 102 | ≤0,05 | ± 15% atau ± 0,40mm | |
| > 0,05-0,10 | ± 12,5% atau ± 0,40mm | ||
| > 0,10 | + 12,5% -10% | ||
| Tabung baja panas memanas | / | ± 15% | |
2. toleransi ketebalan dinding tabung baja Cold Drawn (Cold Rolled):
| Metode produksi | WT | Toleransi |
| Tabung baja Cold Drawn (Cold Rolled) | ≤3 | +15% / - 10% atau ± 0,40mm |
| > 3 | + 12,5% -10% |
Toleransi lentur:
WT≤15mm, Bending≤1.5mm / m
WT> 15mm ~ 30mm, Bending≤2.0mm / m
WT> 30mm / OD≥351mm, Bending≤3.0mm / m
Ketidaksamaan dinding dan oval:
Ovalitas dan ketidakrataan dinding tidak boleh lebih dari 80% dari OD dan ketebalan dinding. (Atau sesuai permintaan pelanggan)
properti mekanik
| Kualitas baja | Kekuatan tekanan Rm N / mm2 (MPa) | Kekuatan luluh Rp0.2 N / mm2 (MPa) | Pemanjangan SEBUAH % | |||
| Ketebalan dinding | ||||||
| ≤16mm | > 16 ~ 30mm | > 30mm | ||||
| 10 | ≥335 | ≥205 | ≥195 | ≥185 | ≥24 | |
| 15 | ≥375 | ≥225 | ≥215 | ≥205 | ≥22 | |
| 20 | ≥410 | ≥245 | ≥235 | ≥225 | ≥20 | |
| 25 | ≥450 | ≥275 | ≥265 | ≥255 | ≥18 | |
| 35 | ≥510 | ≥305 | ≥295 | ≥285 | ≥17 | |
| 45 | ≥590 | ≥335 | ≥325 | ≥315 | ≥14 | |
| 20juta | ≥450 | ≥275 | ≥265 | ≥255 | ≥20 | |
| 25juta | ≥490 | ≥295 | ≥285 | ≥275 | ≥18 | |
| Q235 | SEBUAH | 375 ~ 500 | ≥235 | ≥225 | ≥215 | ≥25 |
| B | ||||||
| C | ||||||
| D | ||||||
| Q275 | SEBUAH | 415 ~ 540 | ≥275 | ≥265 | ≥255 | ≥22 |
| B | ||||||
| C | ||||||
| D | ||||||
| Q295 | SEBUAH | 390 ~ 570 | ≥295 | ≥275 | ≥255 | ≥22 |
| B | ||||||
| Q345 | SEBUAH | 470 ~ 630 | ≥345 | ≥325 | ≥295 | ≥20 |
| B | ||||||
| C | ≥21 | |||||
| D | ||||||
| E | ||||||
| Q390 | SEBUAH | 490 ~ 650 | ≥390 | ≥370 | ≥350 | ≥18 |
| B | ||||||
| C | ≥19 | |||||
| D | ||||||
| E | ||||||
| Q420 | SEBUAH | 520 ~ 680 | ≥420 | ≥400 | ≥380 | ≥18 |
| B | ||||||
| C | ≥19 | |||||
| D | ||||||
| E | ||||||
| Q460 | C | 550 ~ 720 | ≥460 | ≥440 | ≥420 | ≥17 |
| D | ||||||
| E | ||||||

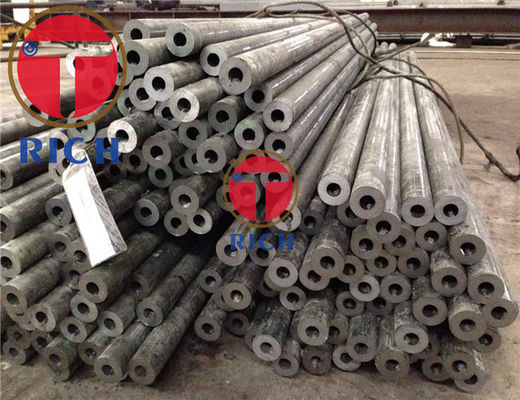

Pengepakan:
Bundel dengan pengemasan laut.
