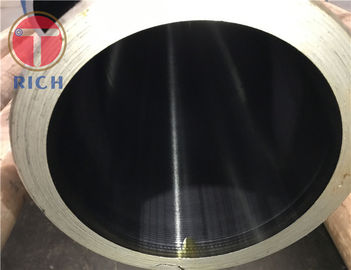

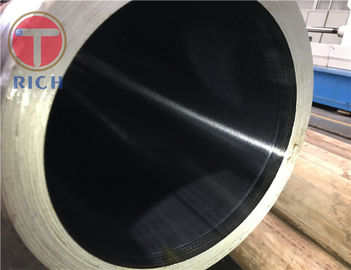

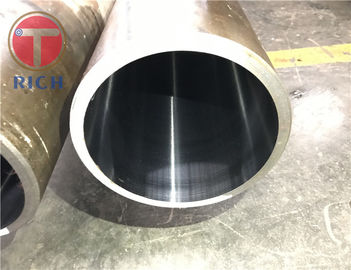

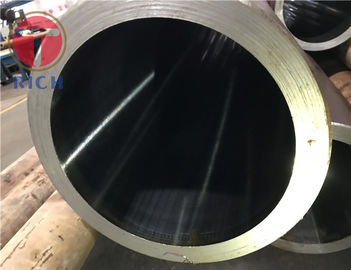

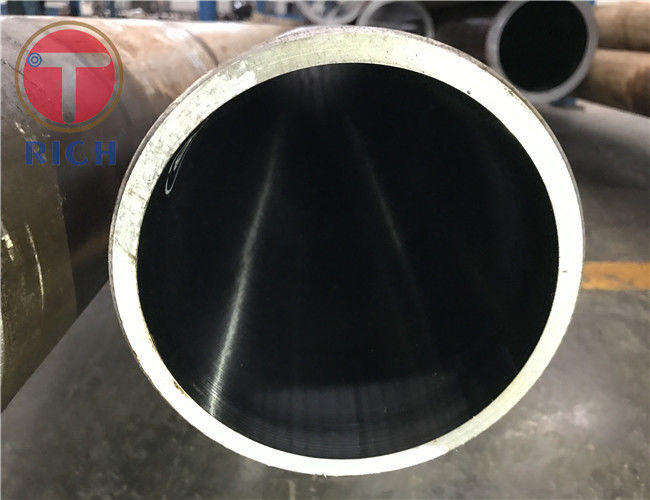

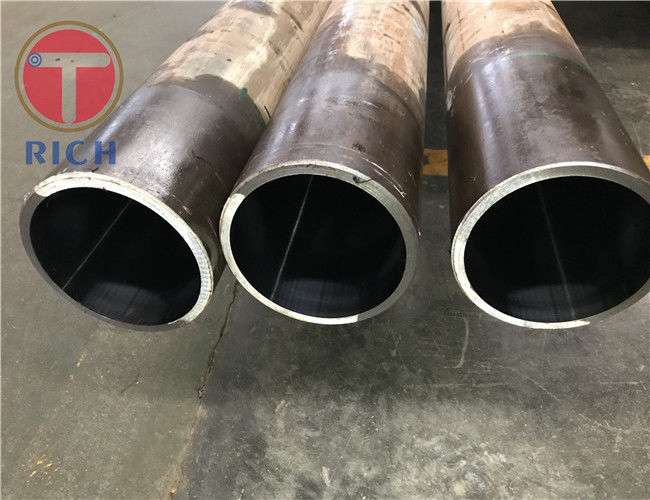

Tabung Baja Presisi Otomotif En10305-1 6 - 350 Mm OD Maks. 12000mm
Properti Dasar
Tempat Asal:
Cina
Nama merek:
Torich
Sertifikasi:
ISO9001 ISO14001 TS16949
Nomor Model:
EN10305-1
Properti Perdagangan
Jumlah Pesanan Minimum:
5tons
Harga:
1200-1400USD/ton
Ketentuan Pembayaran:
L/C, T/T
Kemampuan Penyediaan:
5000tons per tahun
Ringkasan Produk
Precision Automotive Steel Tubes En10305-1 siap untuk diasah pipa baja Rentang ukuran: O.D.:6-350mm W.T.:1-35mm L:max12000mmStandar: EN10305-1 ASTM A519 GB/T3639 DIN2391 JIS G3445Bahan:E235/ SAE1020/ SAE 1045 /10 # 20# 45#/ /DIN ST52/STKM 11A /STKM12BKejujuran:1/1000mToleransi: OD≤0,08mm WT:≤+/-0...
Rincian produk
Menyoroti:
Pipa seamless presisi
,precision pipes and tubes
Material:
E355 E235 St52 16Mn 1045
Standard:
EN10305-1
OD:
6 - 350 mm
WT:
1 - 35 mm
Application:
Tujuan Mekanis
Certification:
ISO 9001 ISO14001 TS16949
Length:
MAKSIMUM 12000mm
Deskripsi Produk
Precision Automotive Steel Tubes En10305-1 siap untuk diasah pipa baja
Rentang ukuran: O.D.:6-350mm W.T.:1-35mm L:max12000mm
Standar: EN10305-1 ASTM A519 GB/T3639 DIN2391 JIS G3445
Bahan:E235/ SAE1020/ SAE 1045 /10 # 20# 45#/ /DIN ST52/STKM 11A /STKM12B
Kejujuran:1/1000m
Toleransi: OD≤0,08mm WT:≤+/-0.15
Meningkatkan presisi dengan metode: Cold drawn/DOM
Fitur produk daritabung dan pipa baja 1020 silinder presisi:
1.Keakuratan tinggi (bisa mengurangi biaya pemesinan).
2.Penutup permukaan yang sangat baik
3.Kinerja mekanik yang baik (Anea,Bright Anealing,QT pemanasan pada tabung baja untuk mencapai kebutuhan mekanik pelanggan).
| Komposisi kimia % ((Max) | C | Ya. | Mn |
P |
S |
| E235 | 0.22 | 0.55 | 1.60 | 0.025 | 0.025 |
| SAE1020 | 0.18-0.23 | | 0.30-0.60 | 0.04 | 0.05 |
| SAE 1045 | 0.43-0.50 | | 0.60-0.90 | 0.04 | 0.05 |
| 10 # | 0.07-0.13 | 0.17-0.37 | 0.35-0.65 | 0.035 | 0.035 |
| 20# | 0.17-0.23 | 0.17-0.37 | 0.35-0.65 | 0.035 | 0.035 |
| 45# | 0.42-0.50 | 0.17-0.37 | 0.50-0.80 | 0.035 | 0.035 |
| St52 | 0.22 | 0.55 | 1.6 | 0.25 | 0.025 |
| STKM 11A | 0.12 | 0.35 | 0.6 | 0.04 | 0.04 |
| STKM12B | 0.20 | 0.35 | 0.6 | 0.04 | 0.04 |
| 1.+C /BK | Tidak ada pengolahan panas setelah proses penarik dingin akhir. |
| 2.+LC/BKW | Setelah perawatan panas akhir ada pass gambar yang cocok. |
| 3.+SA/BKS | Setelah proses penarik dingin terakhir ada perawatan panas pengurangan stres dalam atmosfer terkendali. |
| 4.+A/GBK | Setelah proses penarik dingin, tabung dipanaskan dalam atmosfer yang terkontrol. |
| 5.+N/NBK | Setelah operasi penarik dingin terakhir, tabung-tabung tersebut dinormalisasi dalam atmosfer yang terkontrol. |
Penggilingan /+A/GBK Penggilingan terang/+N/NBK
Item & Kondisitabung baja precision hot rolled
Pengiriman: 30-45 hari
Pembayaran: T/T. LC. Alibaba Tade Jaminan Order
Kemasan: Dalam bungkusan heksagonal, kemasan kotak kayu.
Toleransi kuantitas: +/-10%
Tanda pada pipa ((pipa): Standar,Kelas Baja, Ukuran, No Panas ((atau pilihan pembeli).
Sertifikat pengujian pabrik:EN10204 3.1
Aplikasi:
.Komponen mobilTabung untuk aplikasi struktural
. tabung mekanik standar
. Aplikasi Silinder Hidraulik
Peralatan Berat dan Pertanian
