Pipa Baja Seamless Presisi / Tabung Silinder Hidraulik EN10305-2 E235 E355
Properti Dasar
Tempat Asal:
Cina
Nama merek:
Torich
Sertifikasi:
ISO 9001 ISO14001 TS16949
Nomor Model:
DIN 2391
Properti Perdagangan
Jumlah Pesanan Minimum:
5 ton
Harga:
Dapat dinegosiasikan
Ketentuan Pembayaran:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Kemampuan Penyediaan:
60000 Ton per Tahun
Ringkasan Produk
Precision Seamless Cold Drawn Hydraulic Cylinder Steel Tubes EN10305-1 E235 E355 +Cc +LCc +SR +Ad +N NBK Standar: EN10305-1 Tabung baja yang ditarik dingin/digulung tanpa jahitanTabung baja untuk aplikasi presisi. Aplikasi: Silinder Teleskopik/Silinder Hidrolik/Automatik Amortisator Dalam Silinder ...
Rincian produk
Menyoroti:
Pipa baja mulus
,Seamless Carbon Steel tube
Characteristic:
Presisi Seamless Steel Tube
Material:
E235 E355 dll
Production Method:
Dingin ditarik
Package:
Dalam bundel atau sesuai permintaan
End Protector:
Biasa / Miring
Length:
1-12m
Type:
tabung baja presisi
MTC:
EN10204.3.1
Deskripsi Produk
Precision Seamless Cold Drawn Hydraulic Cylinder Steel Tubes EN10305-1 E235 E355 +Cc +LCc +SR +Ad +N NBK
Standar: EN10305-1 Tabung baja yang ditarik dingin/digulung tanpa jahitan
Tabung baja untuk aplikasi presisi.
Aplikasi: Silinder Teleskopik/Silinder Hidrolik/Automatik Amortisator Dalam Silinder
Rentang ukuran: O.D.:6-350mm W.T.:1-35mm L:max12000mm
| Standar | Kelas baja | C | Ya. | Mn | P | S |
| EN 10305-1 | E215 | ≤ 0.10 | ≤ 0.05 | ≤ 0.70 | ≤ 0.025 | ≤ 0.025 |
| E235 | ≤ 0.17 | ≤ 0.35 | ≤ 1.20 | ≤ 0.025 | ≤ 0.025 | |
| E355 | ≤ 0.22 | ≤ 0.55 | ≤ 1.60 | ≤ 0.025 | ≤ 0.025 | |
| DIN 2391 | St35 | ≤ 0.17 | ≤ 0.35 | ≥ 0.40 | ≤ 0.025 | ≤ 0.025 |
| St37.4 | ≤ 0.17 | ≤ 0.35 | ≥ 0.40 | ≤ 0.025 | ≤ 0.025 | |
| St45 | ≤ 0.21 | ≤ 0.35 | ≥ 0.40 | ≤ 0.025 | ≤ 0.025 | |
| St52 | ≤ 0.22 | ≤ 0.55 | ≤ 1.60 | ≤ 0.025 | ≤ 0.025 | |
| GB/T 3639 | 10 | 0.07-0.13 | 0.17-0.37 | 0.35-0.65 | ≤ 0.030 | ≤ 0.030 |
| 20 | 0.17-0.23 | 0.17-0.37 | 0.35-0.65 | ≤ 0.030 | ≤ 0.030 | |
| 35 | 0.32-0.39 | 0.17-0.37 | 0.50-0.80 | ≤ 0.030 | ≤ 0.030 | |
| 45 | 0.42-0.50 | 0.17-0.37 | 0.50-0.80 | ≤ 0.030 | ≤ 0.030 | |
| Q345B | ≤ 0.20 | ≤ 0.50 | ≤ 1.70 | ≤ 0.030 | ≤ 0.030 |
Pengolahan panas tabung baja tanpa jahitan presisi: +C, +LC, +N, +SR
1.-- Pengiriman: 60-70 hari setelah menerima 30% T/T di muka
2.-- Ketentuan pembayaran: 30% T/T di muka, saldo 70% dibayar sebelum pengiriman.
3.-- Kemasan: perlindungan anti karat, dalam bundel heksagonal
4.-- Tanda pada pipa: Standar,Kelas Baja, Ukuran, No Panas (atau pilihan pembeli).
5.--Sertifikat uji Mill:EN10204 3.1

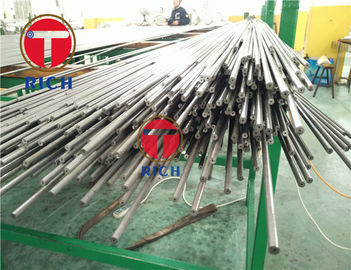

Produksi tabung baja:
Uji arus eddy dan uji ultrasonik:
Kemasan:
