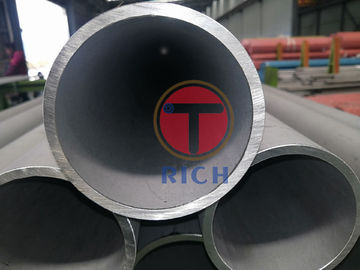

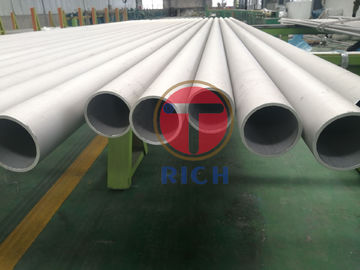

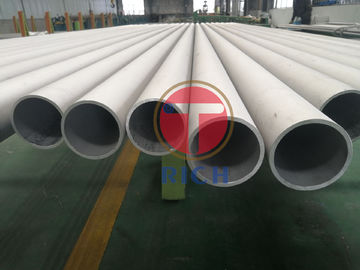

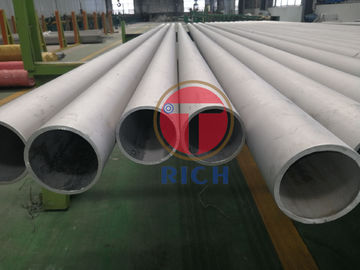

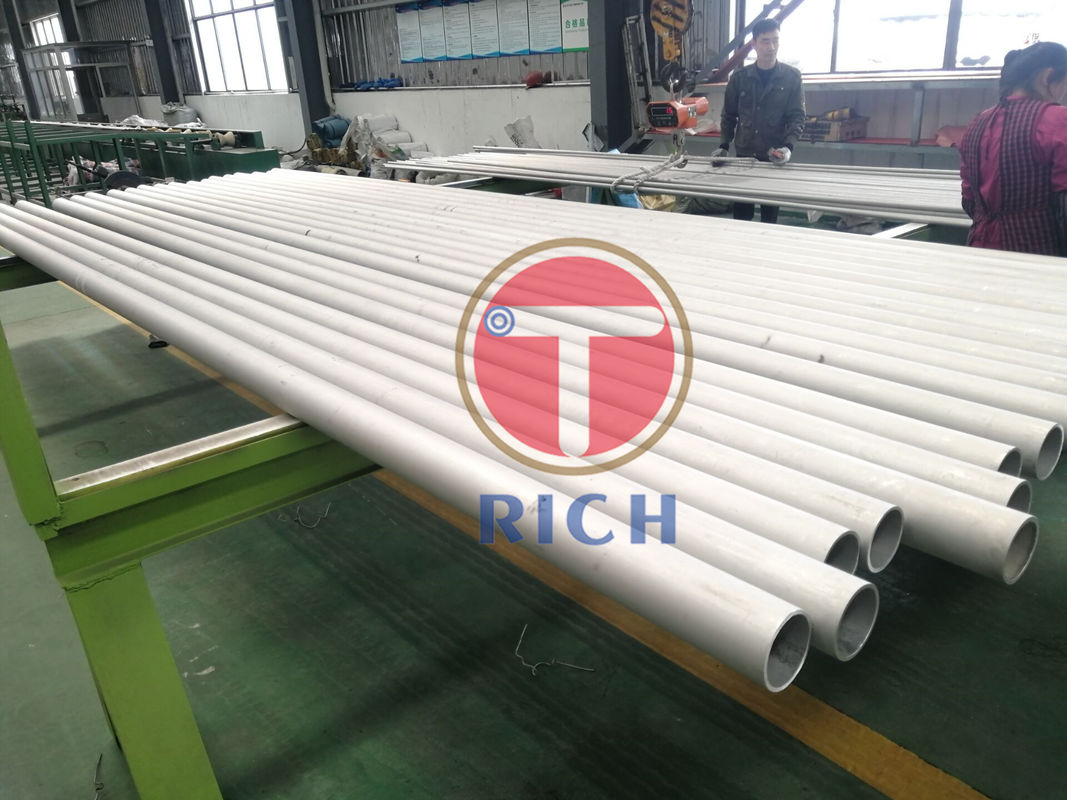

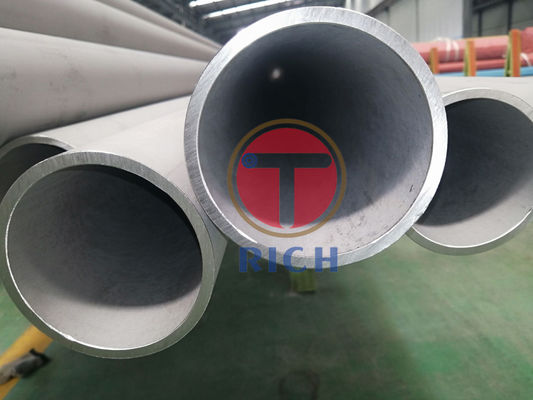

Permukaan Annealing Pipa Stainless Steel Diameter Besar Untuk Penukar Panas
Rincian produk
stainless steel putaran tabung
,stainless tube steel
316 304 diameter besar pipa stainless steel tanpa jahitan untuk Panas - Exchanger
1. Standar: ASTM A312 A213 A269 A511 A789 A790, JIS3463, JIS3459, DIN2462, DIN17456
2. Kelas: 304,310S,316, 316L,321,321H,317L,904L,2205, dll
3. Jangkauan OD: 6 ~ 860mm;
4. ketebalan dinding Range: 0,5 ~ 60mm
5. Finishing permukaan: acar, sandblast, polishing, dll
6. Teknik: Hot-diwal, dingin-diambil
| Kelas | C | Mn | Ya. | P | S | Cr | Mo | Tidak | N |
| 201 | .15 Max | 5.5 - 7.5 | 1.00 Max | .060 Max | .030 Max | 16 - 18 | 3.5-5.5 | .25 Max | |
| 202 | .15 Max | 5.5 - 7.5 | 1.00 Max | .060 Max | .030 Max | 16 - 18 | 3.5-5.5 | .25 Max | |
| 301 | 0.15 maksimal | 2.00 maksimal | 1.00 maksimal | 0.045 maksimal | 0.030 maksimal | 16-18 | 6 ¢ 8 | 0.10 | |
| 302 | 0.15 | 2.00 maksimal | 0.75 | 0.05 | 0.03 | 17 ¢19 | - | 8 ¢ 10 | 0.10 |
| 302B | 0.15 | 2.00 maksimal | 2.0 ¢3.0 | 0.05 | 0.03 | 17 ¢19 | - | 8 ¢ 10 | - |
| 304 | 0.08 | 2.00 maksimal | 0.75 | 0.05 | 0.03 | 18-20 | - | 8-10.5 | 0.10 |
| 304L | 0.03 | 2.00 maksimal | 0.75 | 0.05 | 0.03 | 18-20 | 6 ¢ 12 | 0.10 | |
| 304H | 0.04-0.01 | 2.00 maksimal | 0.75 | 0.05 | 0.03 | 18-20 | 8-10.5 | - | |
| 310 | 0.25 | 2.00 maksimal | 1.50 | 0.05 | 0.03 | 24-26 | - | 19-22 | - |
| 310S | 0.08 | 2.00 maksimal | 1.50 | 0.05 | 0.03 | 24-26 | - | 19-22 | - |
| 316 | 0.08 | 2.00 maksimal | 0.75 | 0.05 | 0.03 | 16-15 | 2 ¢ 3 | 10 ¢ 14 | 0.10 |
| 316L | 0.03 | 2.00 maksimal | 0.75 | 0.05 | 0.03 | 16-18 | 2 ¢ 3 | 10 ¢ 14 | 0.10 |
| 321 | 0.08 | 2.00 maksimal | 0.75 | 0.05 | 0.03 | 17 ¢19 | 9 ¢ 12 | 0.10 | |
| 410 | 0.080.150 | 1.00 maksimal | 1.00 Max | 0.04 | 0.030 maksimal | 11.5-13.5 | 0.75max |
Mesin dan Inspeksi:
Uji ketegangan
Sifat-sifat tarik
Uji hidrastatik atau uji listrik yang tidak merusak
Analisis Kimia
Persyaratan tambahan:
S1 Uji Kekerasan
S2 Uji ketegangan
S3 Uji tidak merusak
S4 Laporan pengujian
Dokumen referensi:
Standar ASTM:
Metode pengujian dan definisi ASTM A370 untuk pengujian mekanik produk baja
Metode pengujian ASTM E30 untuk analisis kimia baja, besi cor, besi open-heat
dan besi tempa,
ASTM E 59 Praktek untuk pengambilan sampel baja dan besi untuk penentuan komposisi kimia
Standar Militer:
MIL-STD-129 Penandaan untuk Pengiriman dan Penyimpanan
MIL-STD-163 Produksi pabrik baja Persiapan untuk pengiriman dan penyimpanan
Standar Federal:
Fed. Std. No. 123 Penandaan untuk Pengiriman
-
