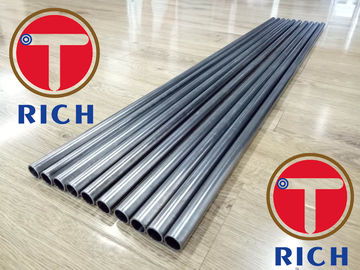

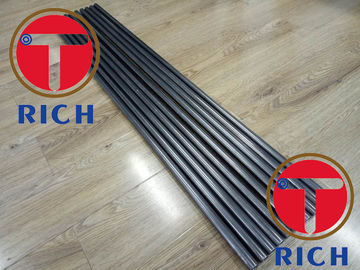

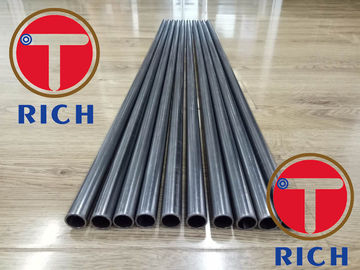

Tabung Penukar Panas Baja Karbon Rendah Presisi ASTM A178 Dilas Untuk Pipa Ketel
Properti Dasar
Tempat Asal:
Zhejiang
Nama merek:
TORICH
Sertifikasi:
ISO
Nomor Model:
ASTM SA213 T5
Properti Perdagangan
Jumlah Pesanan Minimum:
5 ton
Harga:
USD 750-800 Per Ton
Ketentuan Pembayaran:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Kemampuan Penyediaan:
100 ton per bulan
Ringkasan Produk
TORICH Baja karbon rendah Precision ASTM A178 Tabung Boiler Las dan Ditarik 1Berbagai ukuran yang tersedia: OD Ketebalan mm inci mm SCH 88.9~1422 3'~ 56' 2.11 ~ 140 ≥ SCH10 *Jika kelas baja dan ukuran yang Anda cari tidak tercantum di atas, silakan hubungi kami untuk informasi lebih lanjut . 2. ...
Rincian produk
Menyoroti:
baja karbon Tabung
,Penukar panas tabung
Standard:
ASTM A106-2006, GB 5310-1995
Grade Group:
A53-A369
Thickness:
2,11 - 140 mm
Outer Diameter(Round):
88,9 - 1219 mm
Section Shape:
Bulat
Application:
Boiler pipa
Deskripsi Produk
TORICH Baja karbon rendah Precision ASTM A178 Tabung Boiler Las dan Ditarik
1Berbagai ukuran yang tersedia:
|
OD
| Ketebalan | ||
| mm
| inci | mm | SCH |
| 88.9~1422
| 3'~ 56' | 2.11 ~ 140 | ≥ SCH10 |
|
*Jika kelas baja dan ukuran yang Anda cari tidak tercantum di atas, silakan hubungi kami untuk informasi lebih lanjut . | |||
2. Aplikasi
Pembangkit listrik; Pupuk kimia; Petrokimia; Minyak lepas pantai; Produksi gas; Rafineri dan lain-lain
3. Standar
ASTM A106 Spesifikasi standar untuk pipa baja karbon tanpa jahitan untuk layanan suhu tinggi
ASTM A335 /ASTM A213 Specifikasi Standar untuk Pipa Alloy Ferritik-Baja Tanpa Sambungan untuk Layanan Suhu Tinggi
4Pipa baja No. produksi utama:
ASTM A335 Kelas P5 /T5,P9 / T9, P11, P12, P22, P91, P92
ASTM A106 Kelas B, C
5Toleransi Dimensi
|
Jenis pipa
| OD (mm) | Toleransi | WT (mm) | Toleransi |
| Tabung Boiler Tekanan Tinggi | 219 ~ 457 | ± 1,0% |
≤ 20
| -10% ~ + 12,5% |
|
20 ~ 40
| -10% +10% | |||
| 457 ~ 1422 | ± 0,9% |
> 40 ~ 70
| -7%, +9% | |
|
> 70 ~ 20
| -6%, +8% |
6Komposisi kimia:
|
Persyaratan kimia tabung boiler tekanan tinggi
| ||||||||||||
|
Standar
| Kelas | Penunjukan UNS | Komposisi, % | |||||||||
| C | Mn | P | S | Ya. | Cr | Mo | Tidak | V | lainnya | |||
| ASTM A335 | P5/T5 | K41545 | 0.15max | 0.30-0.60 | 0.025 | 0.025 | 0.50max | 4.00-6.00 | 0.45-0.65 | Aku tidak tahu. | ||
| P9/T9 | S50400 | 0.15max | 0.30-0.60 | 0.025 | 0.025 | 0.25-1.00 | 8.00-10.00 | 0.90-1.10 | Aku tidak tahu. | |||
| P11 | K11597 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50-1.00 | 1.00-1.50 | 0.44-0.65 | Aku tidak tahu. | |||
| P12 | K11562 | 0.05-0.15 | 0.30-0.61 | 0.025 | 0.025 | 0.50 maksimal | 0.80-1.25 | 0.44-0.65 | Aku tidak tahu. | |||
| P22 | K21590 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50 maksimal | 1.90-2.60 | 0.87-1.13 | Aku tidak tahu. | |||
| P91 | K91560 | 0.08-0.12 | 0.30-0.60 | 0.02 | 0.01 | 0.20-0.50 | 8.00-9.50 | 0.85-1.05 | 0.4 | 0.18-0.25 | N 0,030-0.070 | |
| Al 0.02max | ||||||||||||
| Cb 0.06-0.10 | ||||||||||||
| Ti 0,01 maksimal | ||||||||||||
| Zr 0,01max | ||||||||||||
| P92 | K92460 | 0.07-0.13 | 0.30-0.60 | 0.02 | 0.01 | 0.50 maksimal | 8.50-9.50 | 0.30-0.60 | 0.4 | 0.15-0.25 | N 0,03-0.07 | |
| Al 0,02 maksimal | ||||||||||||
| Cb 0.04-0.09 | ||||||||||||
| W 1.5-2.00 | ||||||||||||
| B 0.001-0.006 | ||||||||||||
| Ti 0,01 maksimal | ||||||||||||
| Zr 0,01 maksimal | ||||||||||||
| ASTM A106 | Kelas B | 0.3 | 0.29 ¢ 1.06 | 0.035 | 0.035 | 0.1 | 0.4 | 0.15 | 0.4 | 0.08 | ||
| Kelas C | 0.35 | 0.29 ¢ 1.06 | 0.035 | 0.035 | 0.1 | 0.4 | 0.15 | 0.4 | 0.08 | |||
7Sifat Mekanis
|
Standar
| Pipa baja No. | Kekuatan tarik | Kekuatan hasil | Perpanjangan | Energi dampak | Kekerasan |
| (Mpa) | (Mpa) | (%) | (J) | |||
| ASTM A335 | P5/T5 | ≥415 | ≥205 | ≥ 22 | ≥ 35 | ≤187HB |
| P9/T9 | ≥415 | ≥205 | ≥ 22 | ≥ 35 | ||
| P11 | ≥415 | ≥205 | ≥ 22 | ≥ 35 | ≤163HB | |
| P12 | ≥415 | ≥ 220 | ≥ 22 | ≥ 35 | ≤163HB | |
| P22 | ≥415 | ≥205 | ≥ 22 | ≥ 35 | ≤163HB | |
| P91 | 585 ~ 760 | ≥415 | ≥ 20 | ≥ 35 | ≤ 250HB | |
| P92 | ≥ 620 | ≥440 | ≥ 20 | ≥ 35 | ≤ 250HB | |
| ASTM A106 | Kelas B | ≥415 | ≥ 240 | ≥ 22 | ≥ 35 | / |
| Kelas C | ≥ 485 | ≥ 275 | ≥ 20 | ≥ 35 | / |
