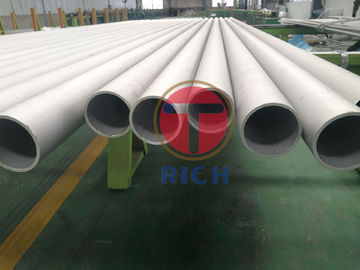

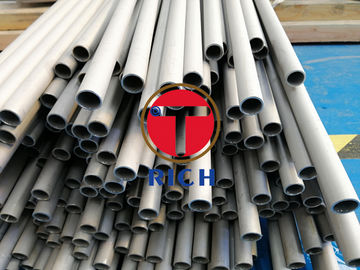

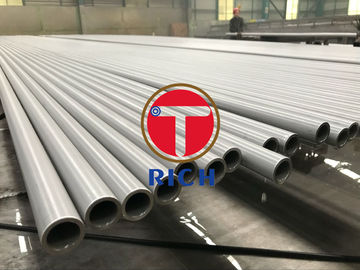

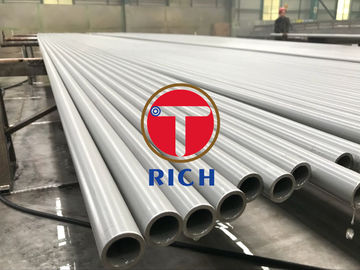

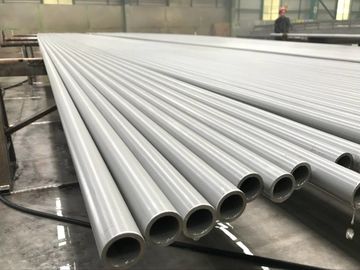

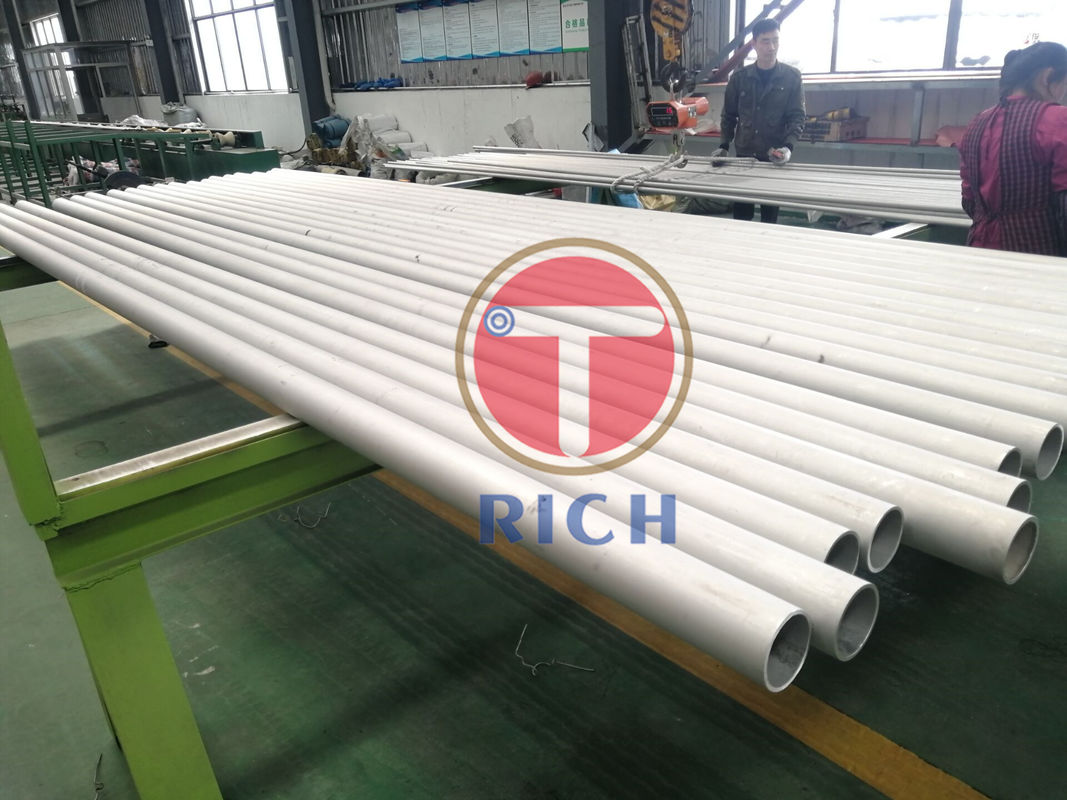

Heat Exchanger, Tabung Presisi Stainless Steel / Tabung Boiler Stainless Steel
Rincian produk
stainless steel putaran tabung
,stainless tube steel
SS304 SUS304 316 316L STB340 Penukar panas tabung boiler stainless steel tanpa jahitan
1. Bahan:304,304L, 316L,316
2.Lapisan permukaan:Berkuah
3. Aplikasi:
a) Superheater
boiler tenaga bertekanan tinggi/super tinggi,
tabung uap superpanas,
pipa air mendidih,
tabung superheating untuk boiler lokomotif.
b) Evaporator
c) Tekanan dan transmisi panas
d) Penukar panas tabung, penukar panas bundel tabung
e) Penukar panas boiler
f) Kondensator
4Ketebalan:0.3 - 4mm
5Diameter luar:8-219mm
6. Panjang:6M atau disesuaikan
7Metode proses:Dilapisi dingin
8. Penutup permukaan:dipanaskan/dipetik
9Bahan:TP304 TP304L TP316 TP316L TP347 TP347H TP321 TP321H TP310
10Standar:ASTM A249, ASTM A269, ASME SA249
11Sertifikasi:ISO 9001:2015, AD 2000-W0, PED 2014/68/EU
12Pengemasan:Pengemasan ekspor standar (dalam bungkus atau kotak kayu yang layak untuk laut)
13Tanggal pengiriman:30 hari setelah menerima setoran
-
